3 MODULE INSTALLATION
3.1 Mounting Position
When mounting the Motion controller to a panel or similar, fully consider its operability,
maintainability and environmental resistance.

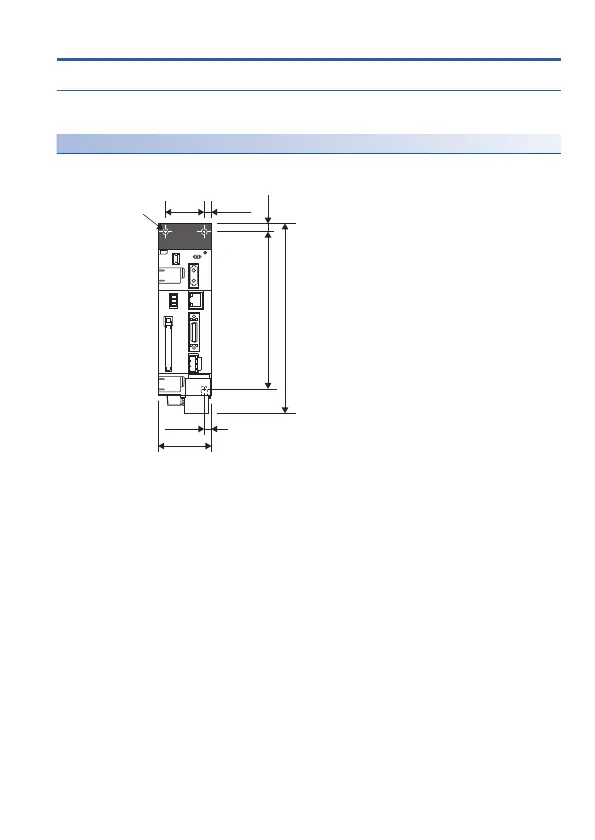

Motion controller fitting dimensions
The fixing hole dimensions for mounting the Motion controller to a panel are shown below.
[unit: mm (inch)]
52 (2.05)
7 (0.28)
38(1.50)
3-fixing screw (M5)
7 (0.28)
186 (7.32)
154 (6.06) 8
(0.31)
