3.3 Mounting and Removal of the Battery Holder
Mounting and removal procedure of the battery holder to the Motion controller is shown below.
Handling the battery lead wire
Precautions for mounting the battery
Set the battery to the battery holder correctly after confirming "+" side and "-" side for the
battery.
Precautions for handling the battery lead wire
Firmly hold the battery lead connector during connection or removal of the battery lead wire.
Connection of the battery lead wire
When connecting a battery (Q6BAT) to the Motion controller, hold the battery lead connector
and attach it to the battery connector. Be sure to insert it until it clicks.
Removal of the battery lead wire
When removing the battery lead wire, firmly hold the battery lead connector while pulling out the
wire.
• Forced removal of a connector while holding the battery lead wire will damage the
battery connector or battery lead wire.
• The data in the RAM built-in Motion controller is not backed up if the battery
connector is not connected correctly.

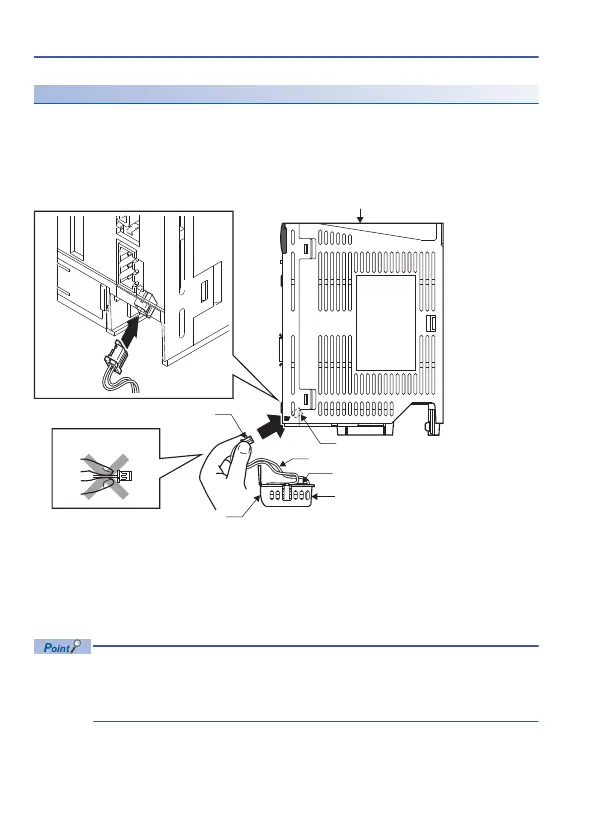

MITSUBISHI
TYPE
Q6BAT
LITHIUM BATTERY
PROGRAMMABLE CONTROLLER
Battery connector
Motion controller
Battery lead wire
Q6BAT
Battery holder
"+" side
Battery lead connector
Do not hold lead wire
To Next Page
