APPENDICES

APP - 45

MELSEC-

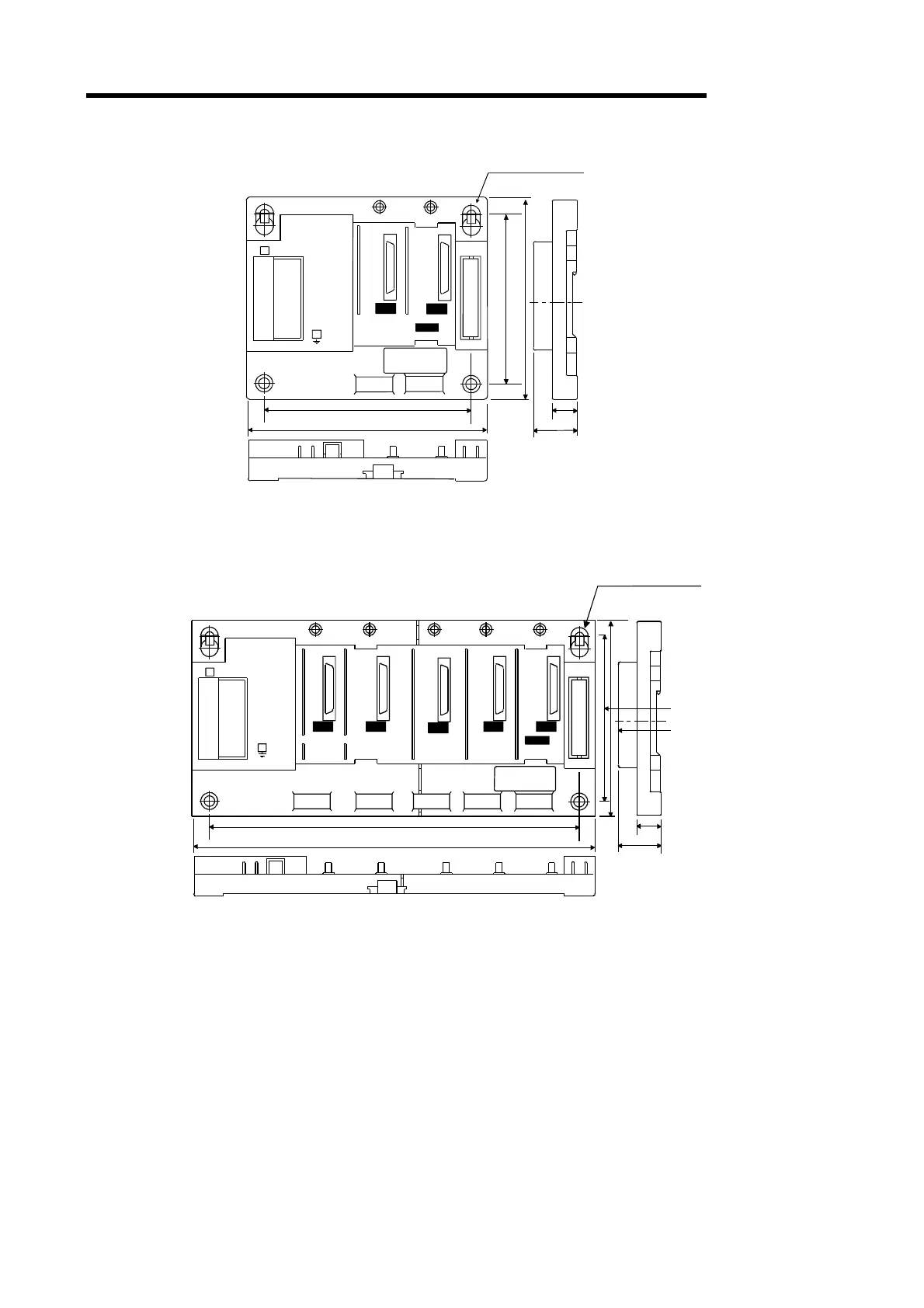

Appendix 4.4.3 A1S52B extension base unit

I/O

MITSUBISHI ELECTRIC CORPORATION

I/O

A1S 52B

4-mounting screws

(M5

25)

28 (1.10)

16.4 (0.65)

155 (6.10)

135 (5.31)

Unit : mm (in.)

110 (4.33)

130 (5.12)

Appendix 4.4.4 A1S55B extension base unit

I/O I/O

MITSUBISHI ELECTRIC CORPORATION

I/O

I/O I/O

A1S55B

4-mounting screws

(M5

25)

28 (1.10)

110 (4.33)

130 (5.12)

16.4 (0.65)

240 (9.45)

260 (10.24)

Unit : mm (in.

)
