2. SYSTEM CONFIGURATION
2 - 3
MELSEC-
A

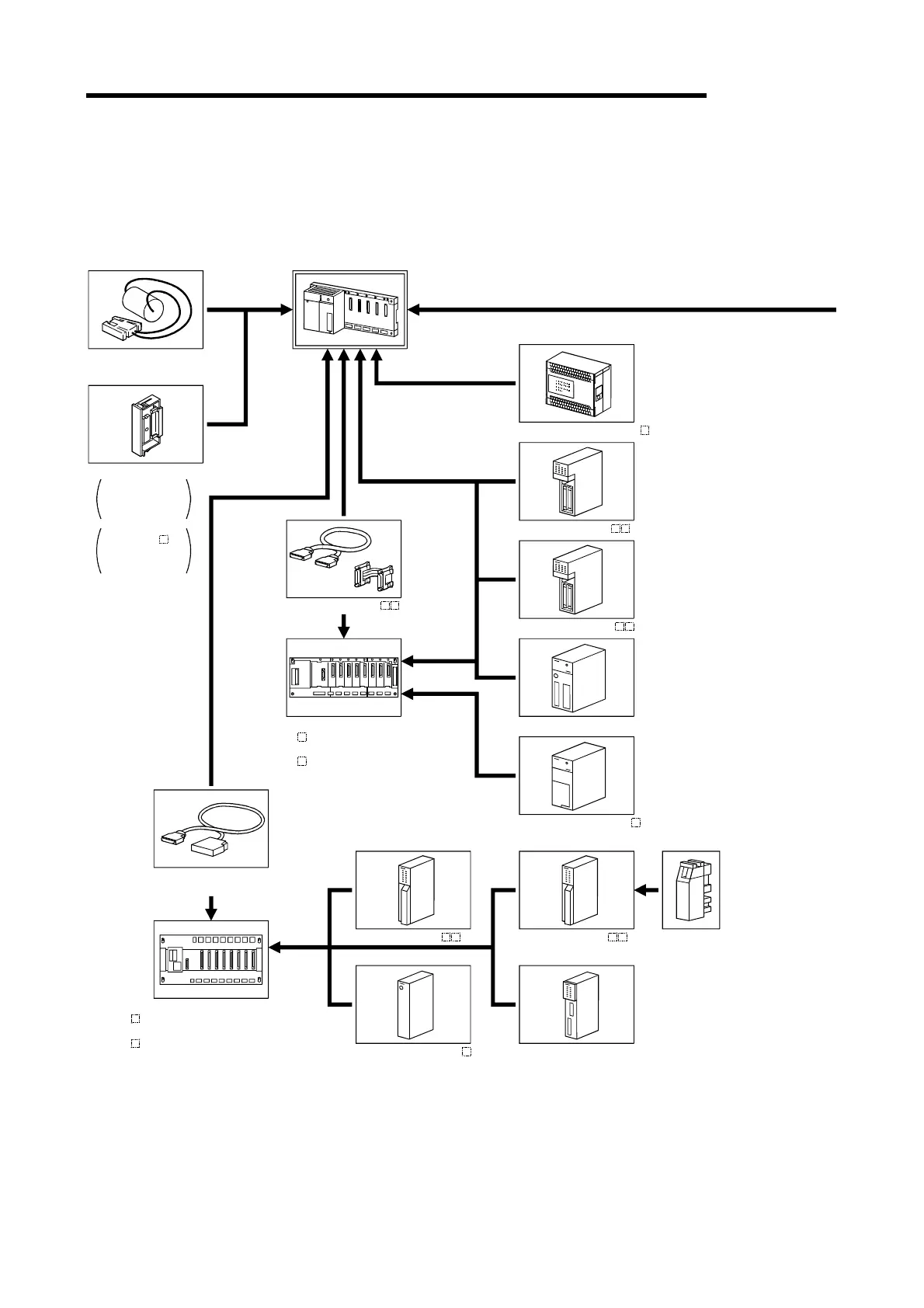

2.1.2 Total configuration of A1SJHCPU(S8)
The figure below shows a system configuration and peripheral device configuration
when the A1SJHCPU(S8) is used independently.
Battery (A6BAT)
ROM cassette
A1SNMCA-8KP
equipped with
EPROM
A1SNMCA- KE
equipped with
E
2
PROM
A1SJHCPU
(S8)
Extension cable (A1SC B)
Extension base
(A1S5 B)
: Without a power supply module
(A1S6 B)
: Equipped with a power supply module
(To peripheral device)
Thin type I/O module (A1SJ-56 )
Input module (A1SX )
Output module (A1SY )
Special function module
Power supply module (A1S6 P)
Extension cable (A1SC05NB)
[Building block type]
Extension base
(A5 B)
: Without a power supply module
(A6 B)
: Equipped with a power supply module
Input module (AX )
Power supply module (A6 P)
Output module (AY )
Special function module
Fuse
