6. BASE UNIT AND EXTENSION CABLE
6 - 9
MELSEC-
A
6.3 Installing and Removal on/from a DIN Rail
Both main base units and extension base units are equipped with hooks for
mounting on a DIN rail.
The method for mounting them on a DIN rail is explained below :
(1) Applicable DIN rails (JIS-C2B12)
TH35-7.5 Fe
TH35-7.5 Al
TH35-15 Fe
(2) Mounting screw interval

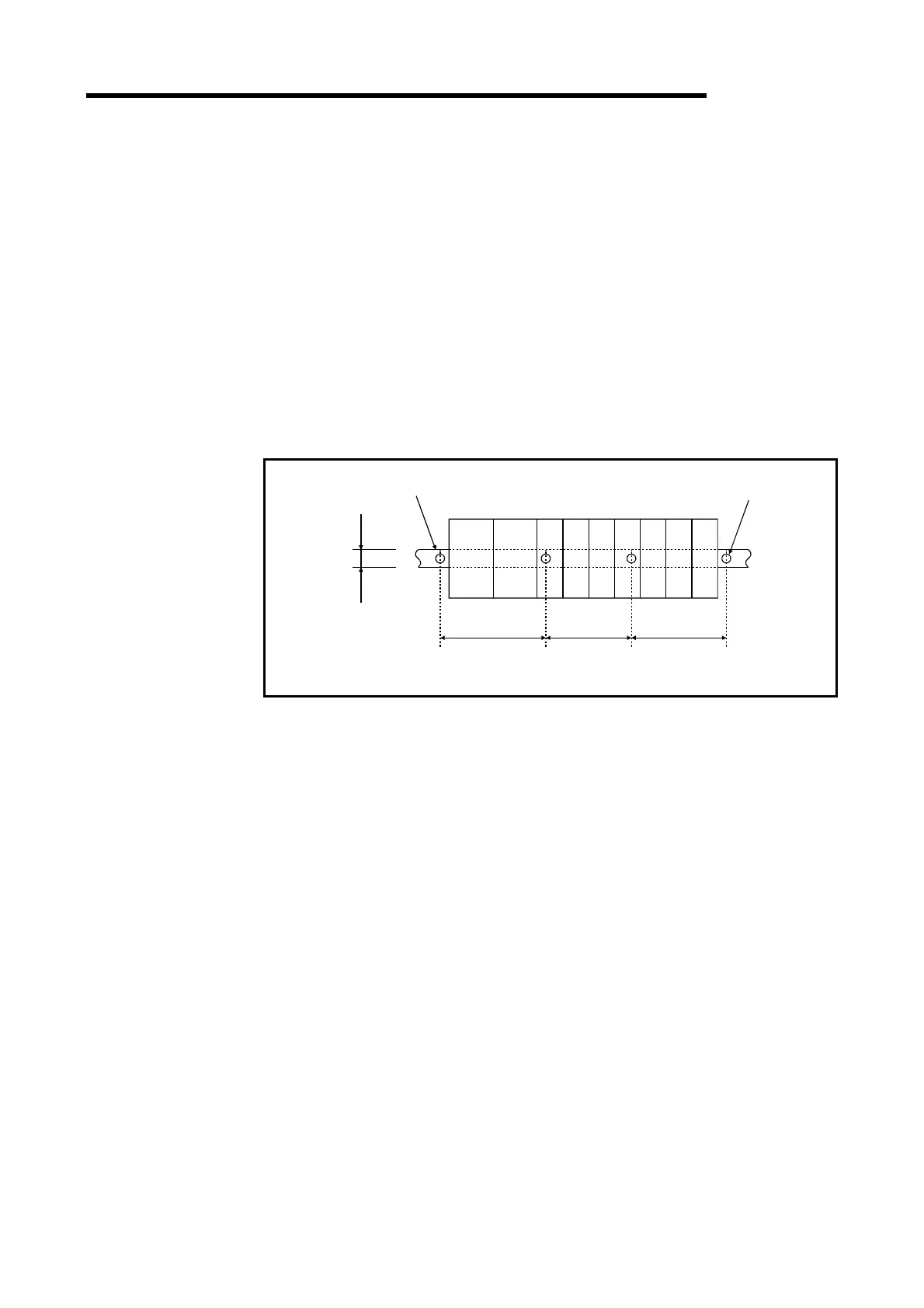

When a TH35-7.5 Fe or TH35-7.5 Al rail is mounted, fix it with screws spaced
no more than 200 mm (7.87 in.) apart.
PPP
DIN rail
Mounting scre
w
35 mm
(1.38 in.)
P=200 mm (7.87 in.) or less
