Mitsubishi A1SJH User Manual

6. BASE UNIT AND EXTENSION CABLE
6 - 8
MELSEC-
A

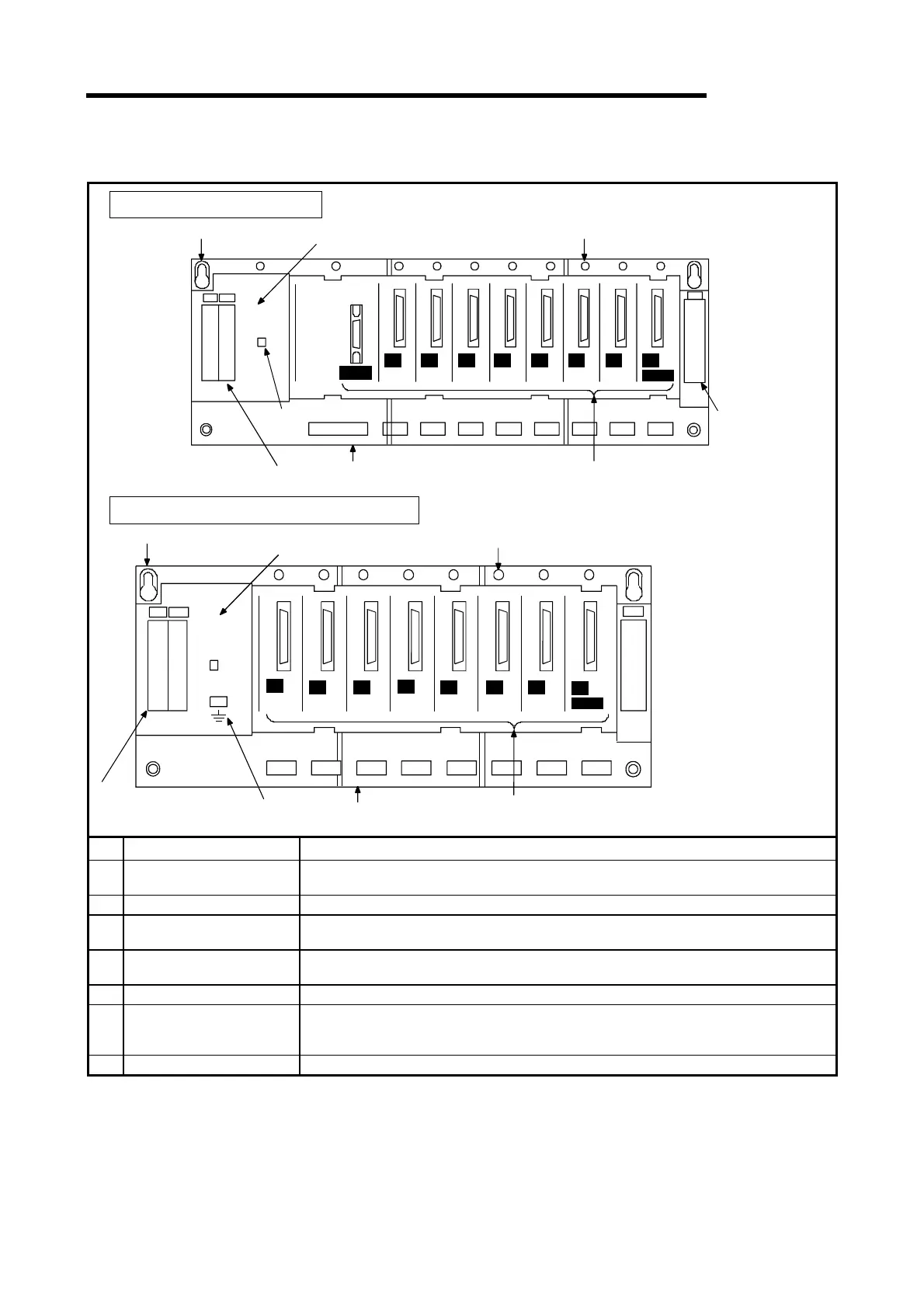

(2) Main base modules (A1S52B(S1), A1S55B(S1), A1S58B(S1), A1S65B(S1),
A1S68B(S1))
(1)
POWER
I/O
0
I/O
1
I/O
2
I/O
3
I/O
4
I/O
5
I/O
6
I/O
7
A1S68B
IN
OUT
OUT
(6)
(3)
(2)
(4)
(2)
(5)
(9)
(1)
I/O
0
I/O
1
I/O
2
I/O
3
I/O
4
I/O
5
I/O
6
I/O
7
A1S58B
IN
OUT
OUT
(6)
(3)
(4)
(2)
(5)
(7)
FG
No. Name Purpose
(1) Extension cable connector
Used to connect an extension cable to a main base module.
Remove the connector cover attached to the module and connect the extension cable.
(2) Base cover Extension cable connector protective cover.
(3) Module connector
Used to load a power supply module, I/O or special function module. Put a supplied cover or
blank cover (A1SG60) on any unused connector to protect it from dust.
(4) Module fixing screw
Used to secure a module to the base module.
Screw size : M4
×
12
(5) Base mounting hole Used to mount the base module to a control panel. (for M5 screw)
(6) DIN rail hook
Used to install on a DIN rail.
A1S52B(S1), A1S55B(S1) : One hook
A1S65B(S1), A1S68B(S1), A1S58B(S1) : Two hooks
(7) FG terminal Grounding terminal connected to the shield pattern on the PLC board.
A1S52B (S1), A1S55B (S1), A1S58B (S1)
A1S65B (S1), A1S68B (S1)
