6. BASE UNIT AND EXTENSION CABLE
6 - 10
MELSEC-
A

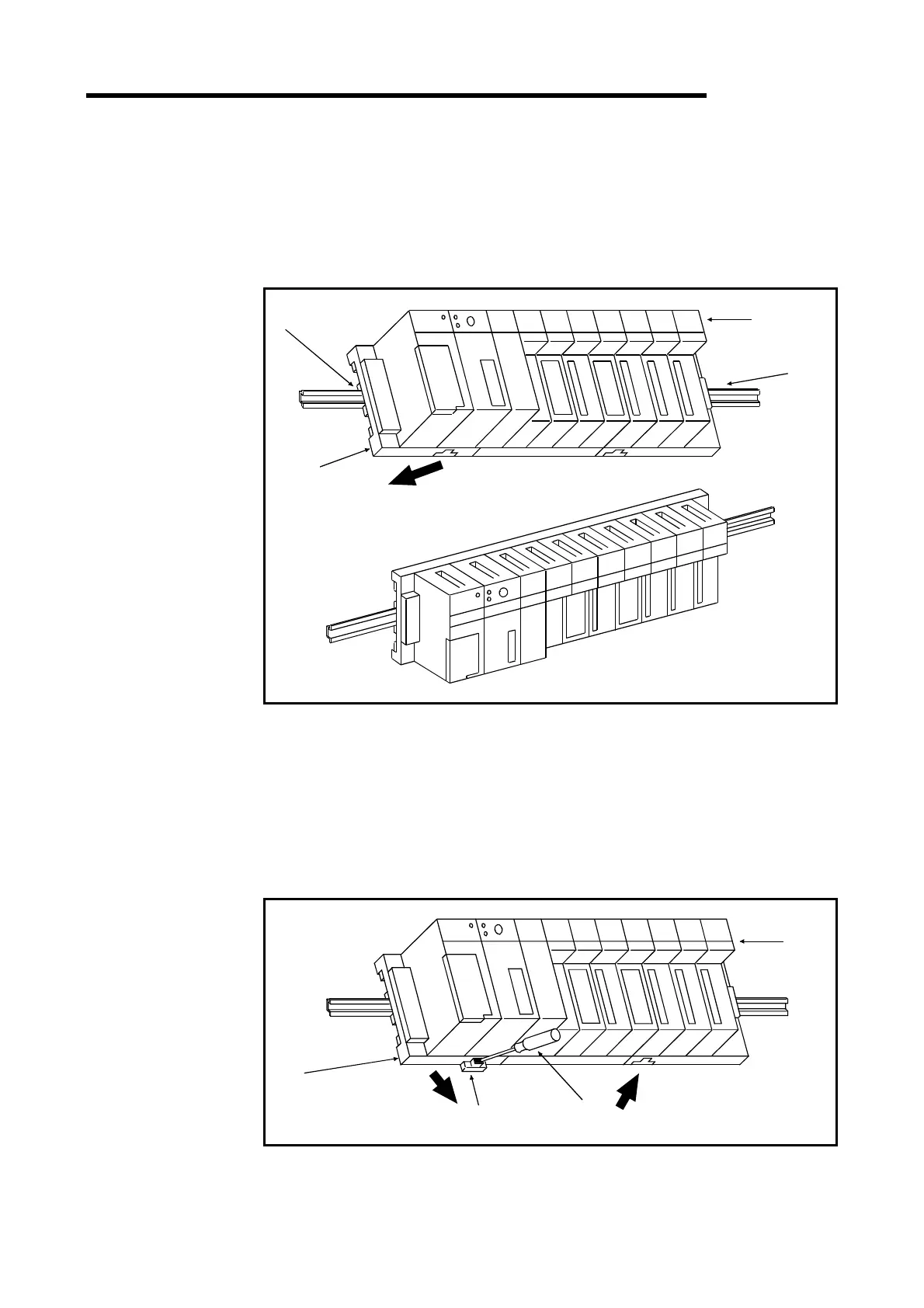

(3) Mounting/removing on/from a DIN rail
(a) Mounting procedure
Mount a base unit on a DIN rail as follows :
1) Engage the hook of the base unit with the rail from above rail.
2) Push the base unit onto the rail and fix it in position.
Module
DIN rail
DIN rail hook
Base unit
Modules mounted to DIN rail
(b) Removing procedure
Remove a base unit from the DIN rail as follows :
1) Pull down the bottom hook of the base unit using a flat blade
screwdriver.
2) Pull the base unit away from the rail while pulling down the bottom
hook.
Module
Pull to remove
Flat blade
screwdriver
Bottom
hook
Base unit
