2. SYSTEM CONFIGURATION
2 - 2
MELSEC-
A
POINT
For applicable printers, cables, and ROM writers, see the operating
manual for each peripheral device used.

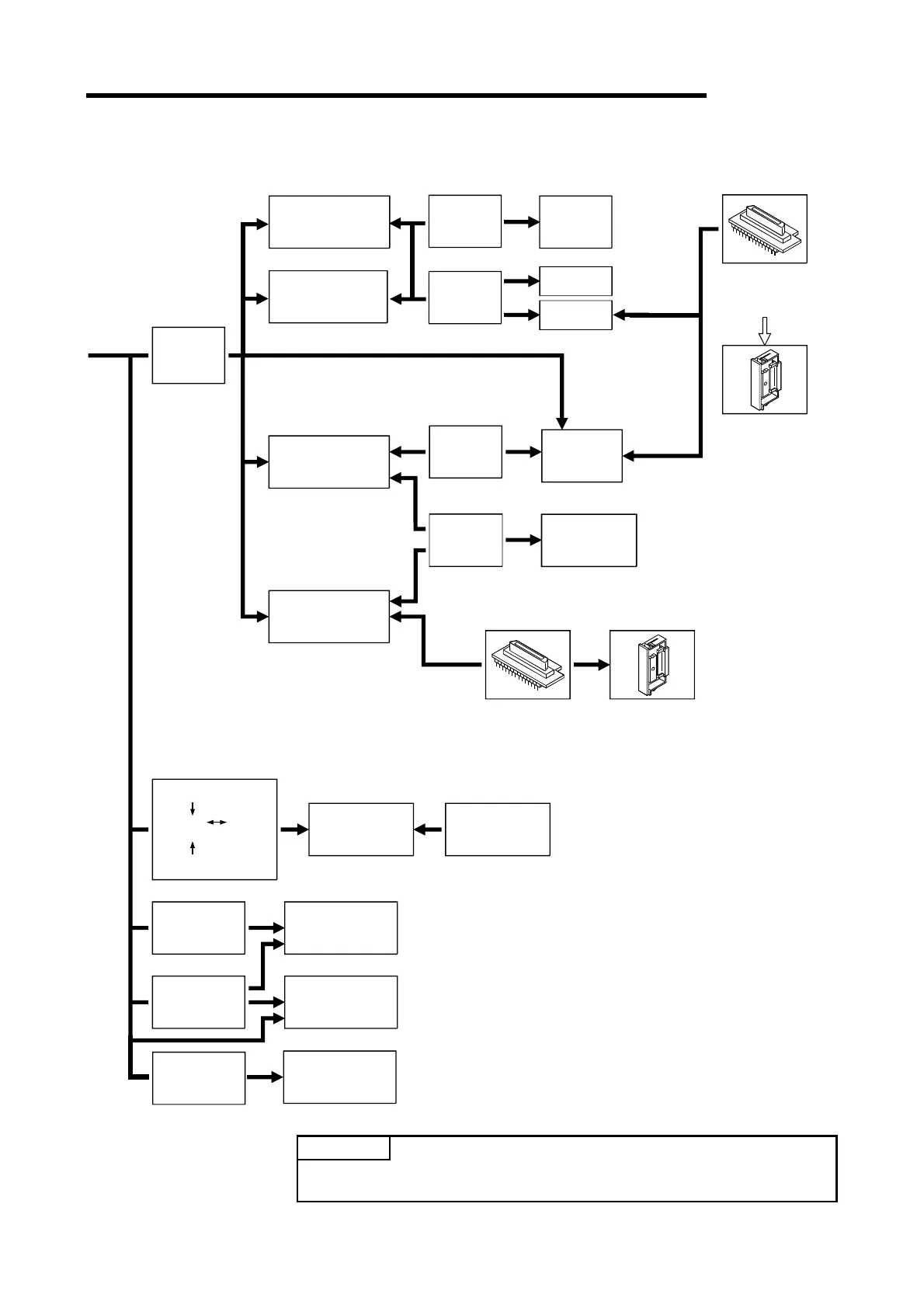

(To AnSHCPU)
AC30R4/
AC300R4
cable
A6PHP plasma
handy graphic
programmer
A6GPP
Intelligent GPP
AC03WU
cable
A6WU
P-ROM
writer module
Memory write
adapter dedicated
to A1SNMCA-8KP
(A6WA-28P)
ROM cassette
for A1SHCPU
(A1SNMCA-8KP)
Memory write adapter
dedicated to A1SNMCA-8KP
(A6WA-28P)
ROM cassette
for A1SHCPU
(A1SNMCA-8KP)
AC20R4-A8PU
cable
AC30R4-PUS
cable
A8PUE
Programming module
IBM PLC/AT or
100 % compatible
SW0IX-GPPAE
MELSEC-MEDOC
system FD
A7PUS
Programming module
(RS-232C cable)
(RS-232C RS-422
converter)
(RS-422 cable)
*1
*1, *2
*1: Refer to SW0IX-GPPAE Software
Package Operating Manual or the
MELSEC-MEDOC Operating Manual for
connectable cables and devices.
*2: IBM is a registered trademark of the
International Buisiness Machines Corporation.
*: As for the applicable printer ROM
writer, see the operating manuals
for A7PHP/A7HGP.
A7NPR-S1
printer
Parallel
printer
A7PHP plasma
handy graphic
programmer
A7HGP
handy graphic
programmer
AC30R2
cable
AC30PIO-26P
cable
*
Printer A7NPR-S1
K6PR-K general-
purpose printer
AC30R2
cable
A6DU-B
data access module
AC30R4-PUS
cable
ROM writer
*
