Mitsubishi FREQROL-E700 User Manual

2-2
2.1 Mitsubishi general-purpose inverters
2.1.1 Lineup

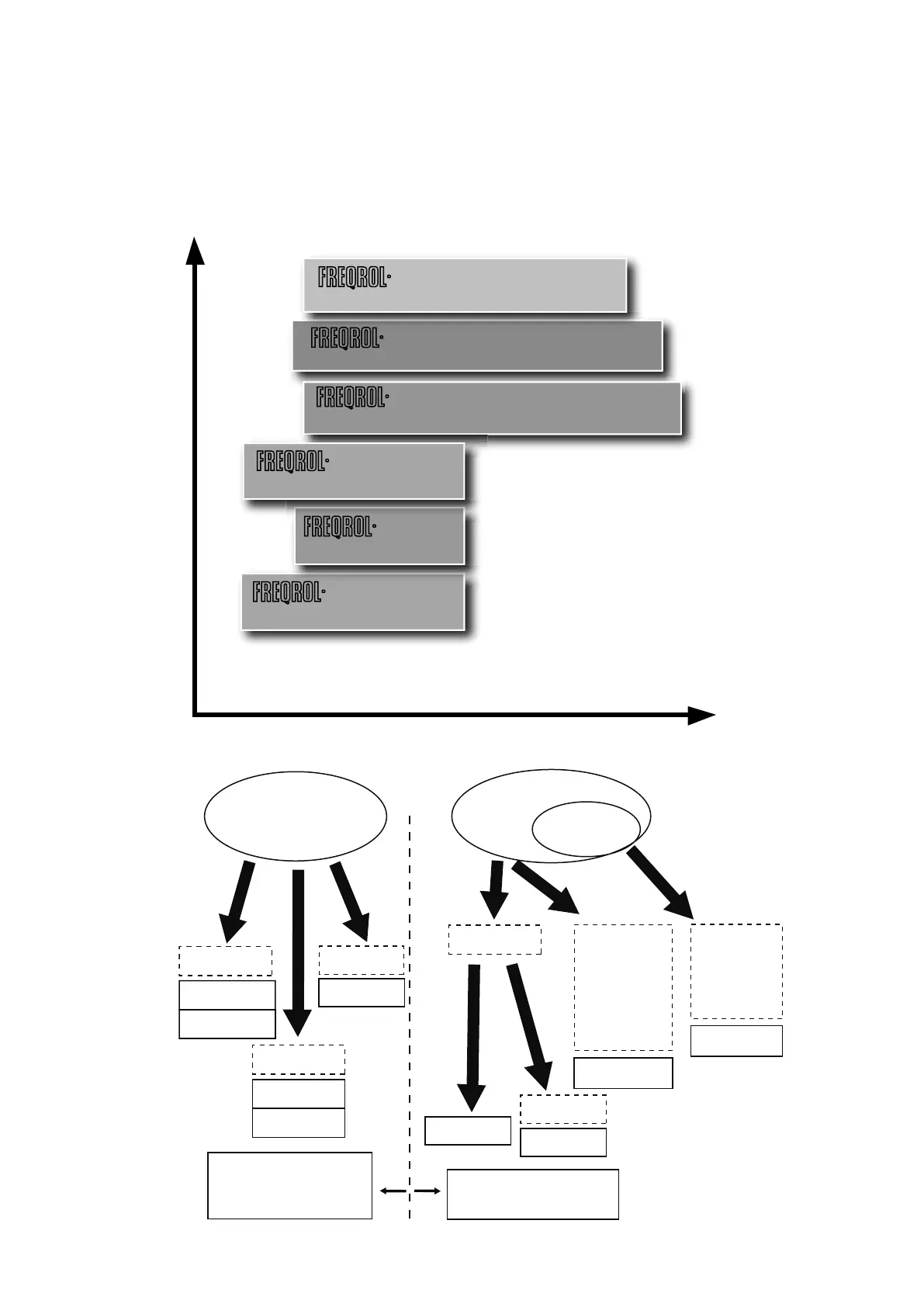

Inverter line-up
Applicable series for each industry
A800
F800
D700
Simple and compact inverter
F700PJ
Air conditioning inverter
Energy-saving premium inverter
Advanced functionality and high-performance inverter
V500 (L)
Vector inverter
E700
Compact and powerful inverter
Capacity
Functions and performance
Fans and pumps
FR-D700
Compact
Overcurrent shutdown
level is approx. 170%
(approx. 200% for FR-D700)
of the rated current.
Overcurrent shutdown level
is approx. 200% of the rated
current.
High-
functionality
FR-F800
General industrial machine
Web handling,
machine tool,
etc.
FR-D700
FR-E700
FR-V500（L）
Compact
High-
functionality
High-
performance
Closed-loop
(built-in option)
Torque control
High-
performance
Closed-loop
Torque control
FR-F700PJ
More energy
saving
Powerful
FR-A800
FR-F800
FR-F700PJ
Three-phase 400V class
Three-phase 200V class
0.75kW to 55kW
0.75kW to 55kW
Three-phase 400V class
Three-phase 200V class
0.4K to 15K
0.4K to 15K
FR-F700PJ
Three-phase 400V class
Three-phase 200V class
0.75K to 110K
0.75K to 560K
FR-F800
●Service life of parts is extended. It comes with the service life diagnose function as standard.
●Compatible with various plug-in options.
Compatible with networks, such as LONWORKS and CC-Link, via plug-in options.
For fans and pumps
●Spring clamp terminals provide high reliability and easy wiring.
●Drives both the general-purpose motors and IPM motors. When it drives an IPM motor
(MM-EFS), which has permanent magnets embedded in its rotor, the energy saving and
high efficiency can be further achieved.
●Drives both the general-purpose motors and IPM motors. When it drives an IPM motor
(MM-EFS), which has permanent magnets embedded in its rotor, energy savings and high
efficiency can be further achieved.
SF-PR
●This model achieves the IE3 efficiency class with the same dimensions as those of
conventional models using our unique steel plate frame technology and new core materials.
●It maintains interchangeability with our standard-efficiency motor SF-JR for easy
replacement.
Three-phase 400V class
Three-phase 200V class
0.75kW to 55kW (75kW is to be released soon.)
0.75kW to 55kW (75kW to 160kW are to be released soon.)
MM-EFS (75kW or less)
MM-THE4 (75kW or more)
●This is an IPM motor, which has permanent magnets embedded in its rotor. It is more
efficient than an induction motor.
●Compared with the "MM-EF series", the motor loss (iron loss and primary copper loss) is
further reduced, and thus achieving higher efficiency. This motor satisfies the highest
efficiency standard IE4 (super premium efficiency).
●This inverter is suitable for fans and pumps, and has the various functions: optimum
excitation control, variable torque acceleration/deceleration patterns, PID control,
commercial power supply switching, adjustable 5 points V/F, continuous operation at an
instantaneous power failure, regeneration avoidance function, etc.

Mitsubishi FREQROL-E700 Specifications

General

Series	FREQROL-E700
Output Frequency	0 to 400Hz
Control Method	V/F control, Vector control
Overload Capacity	150% for 60 seconds
Protection Functions	Over voltage, Under voltage, Over current, Overload, Phase loss
Communication Protocols	CC-Link, Profibus-DP
Built-in Functions	PID control
Braking Unit	Built-in optional
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +65°C
Humidity	Up to 90% (non-condensing)
Altitude	Up to 1000m above sea level
Enclosure	IP20
Cooling Method	Forced air cooling (fan)
Input Voltage	200V, 400V
