5.2.6
FX5 programmable controller communication settings
Communication parameters settings for this function are congured using GX Works 3. GX Works 3 is
programming software for programmable controllers. Refer to the GX Works 3 Operating Manual for more
information on GX Works3.
Parameter settings vary depending on the units used. Operation of each unit is described below.
Built-in RS-485 port (CH1)
Navigation window, parameters, FX5UCPU, unit parameters, 485 serial port

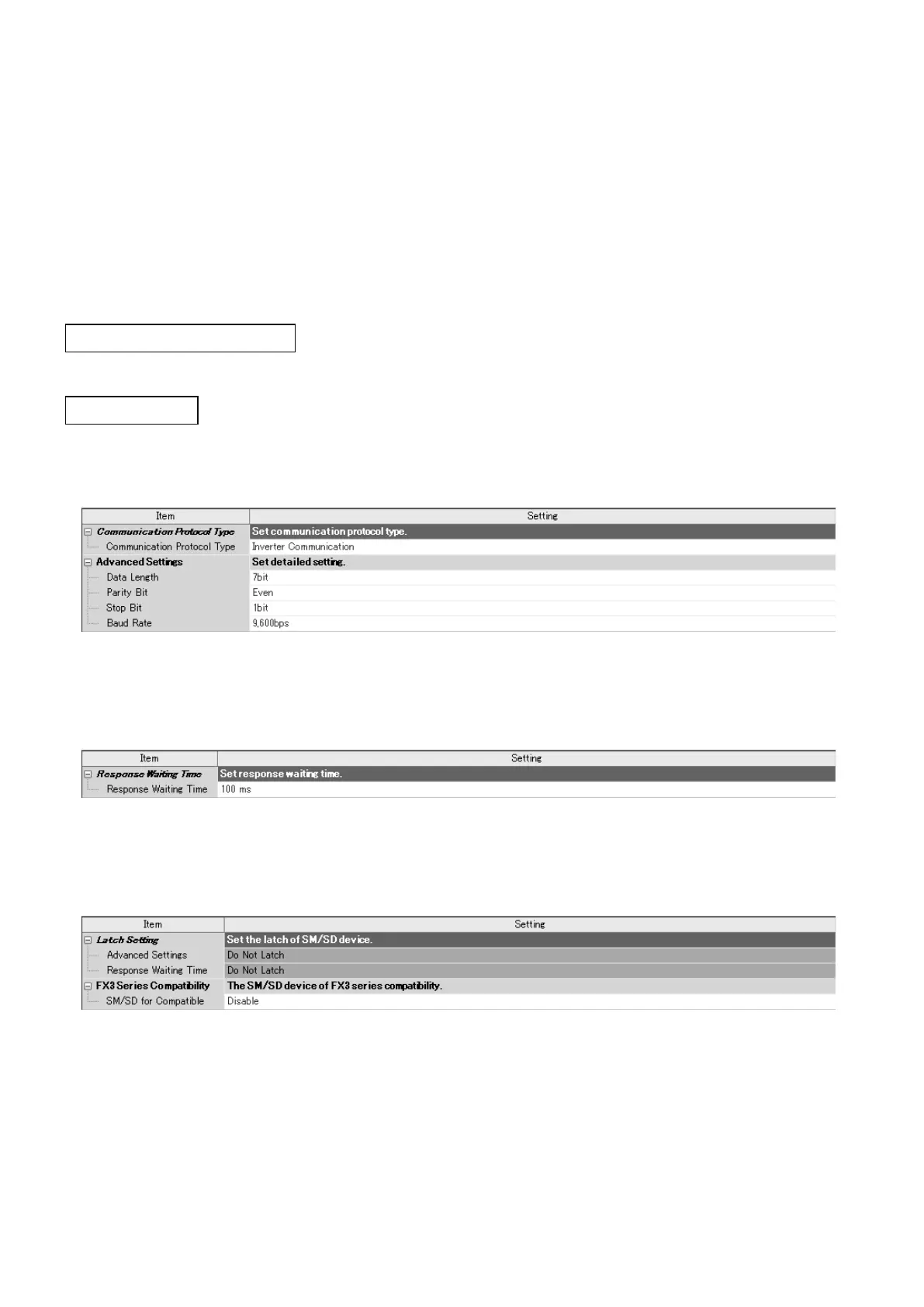

Screen display
Selecting [Inverter Communication] as the protocol displays the following screen.
Basic setting
Specic settings
SM/SD settings
