2.4 Inverter usage precautions
2.4.1 Installation of the inverter
Enclosure surface mounting

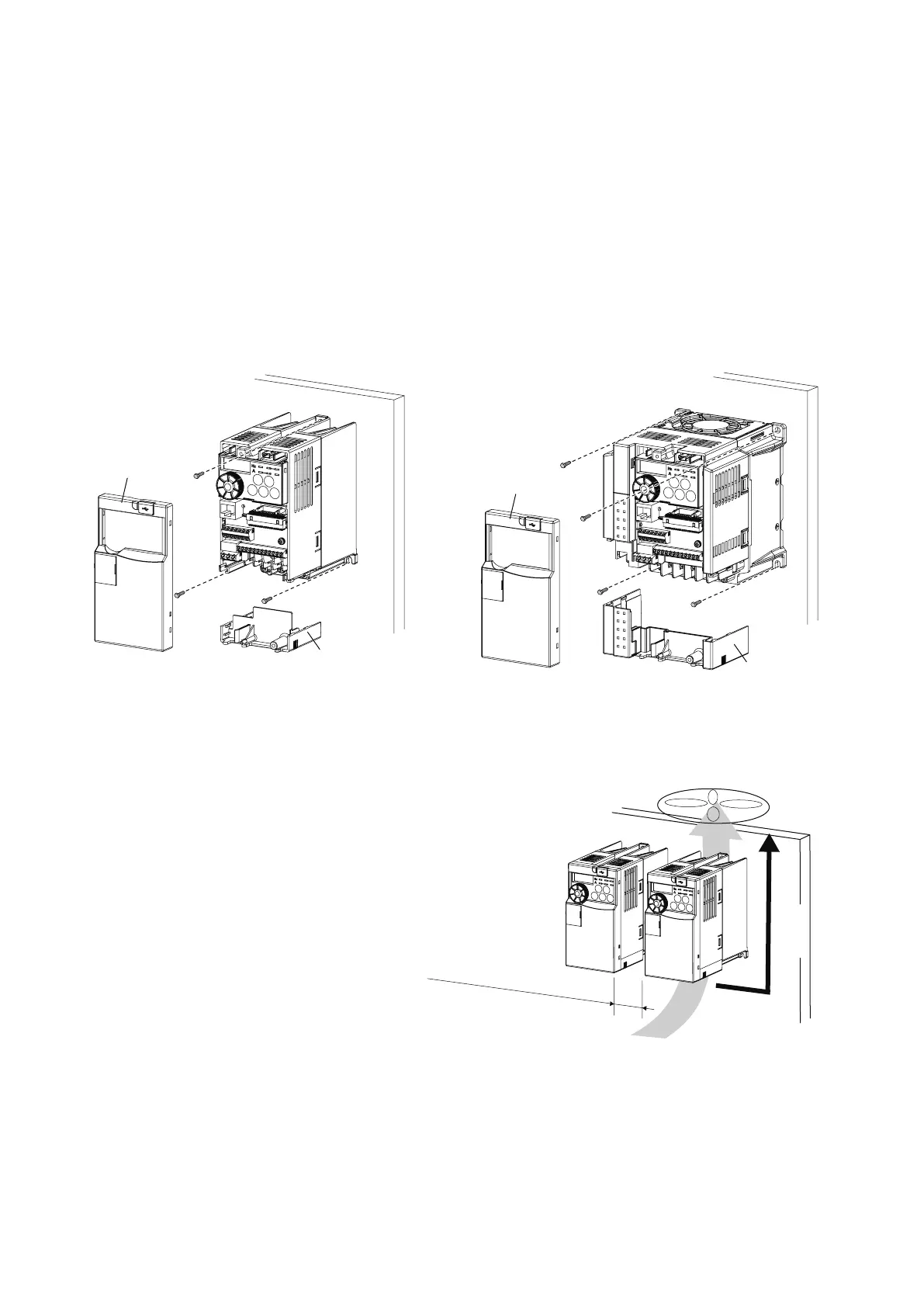

Remove the front cover and wiring cover to x the inverter to the surface.
Re
f
er t
o
the clearances be
low.
Vertical
Install the inverter vertically.
Front cover
Wiring cover
Front cover
Wiring cover
ەFR-E720-0.1K (SC) - 0.75K (SC)
ە
FR-E720S-0.1K (SC) - 0.4K (SC)
ە
FR-E710W-0.1K - 0.4K
ەFR-E720-1.5K (SC) or later
ەFR-E740-0.4K (SC) or later
ەFR-E720S-0.75K (SC) or later
ەFR-E710W-0.75K
