12-6 Simple inspection and service
• Before tilting the cab, make sure there is ade-
quate clearance in front of the cab and above it.
If there are any obstructions within the clear-
ance areas shown above, remove them.
• Retract the radio antenna.

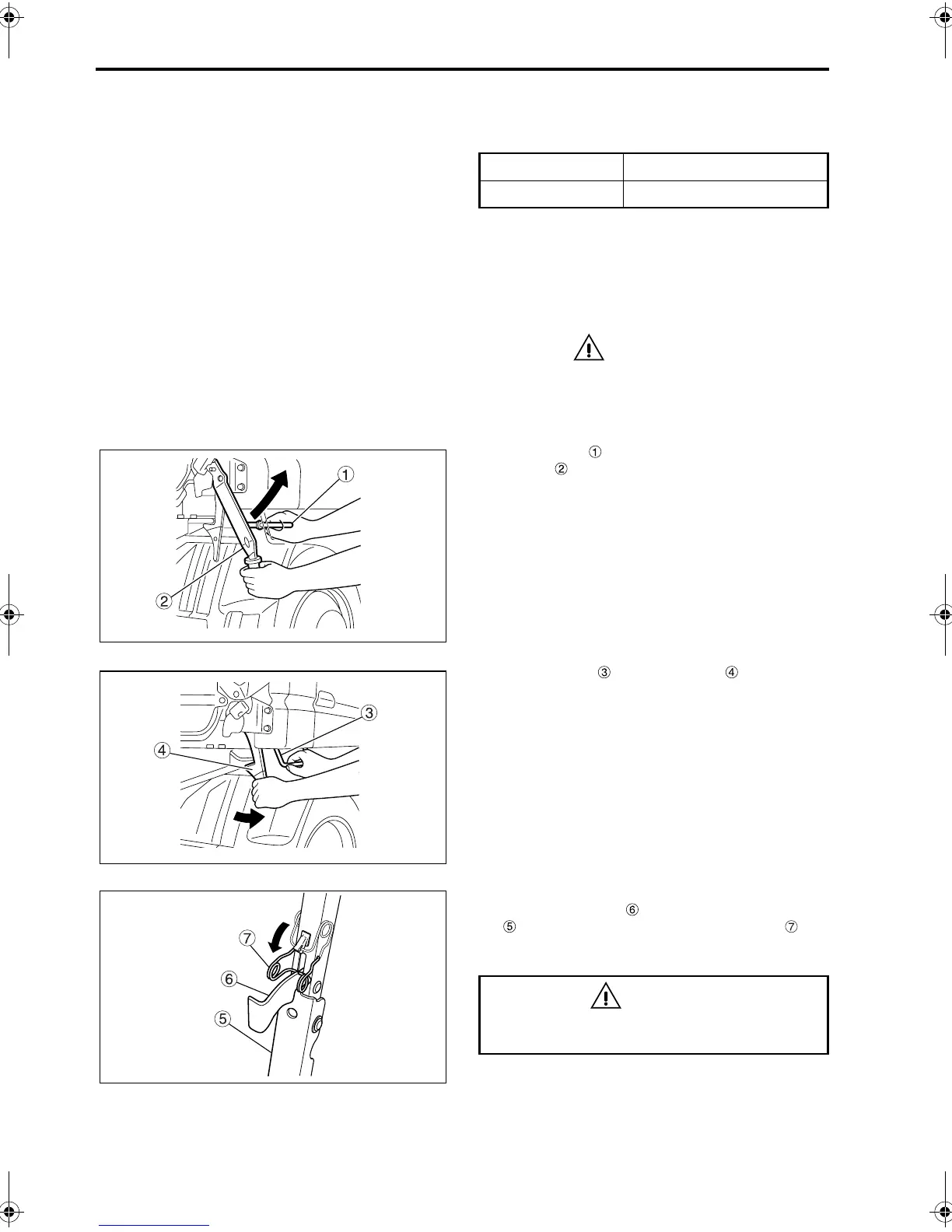

2 Tilting the cab
CAUTION
Raise the cab gently. Raising it quickly with
great force could damage the cab tilt mecha-
nism.
1. Pull lever A . With lever A still pulled, pull up
lever B .
2. Grasp tilt grip and pull lever C . The cab will
rise slightly.
3. Use the tilt grip to raise the cab. After confirming
that the lock lever is hooked onto the cab stay
and the stay is secured, fit the stopper into
the notch in the lock lever.
Clearance in front 1 m or more (3.3 ft. or more)
Clearance above 1 m or more (3.3 ft. or more)
WARNING
Be sure to fit the stopper into the notch in the
lock lever to prevent the cab from dropping.
Z10672
Z10673
Z10674
