13-10 Useful advice for emergencies
Fuse
No.
Amperage Protected circuit
A1 15A Cigarette lighter
A2 10A Audio system
A4 10A
Auxiliary power supply
(starter switch ACC circuit)
B1 15A Stop lamps
B2 10A Meter cluster
B3 15A Turn signal lamps
B4 10A
Auxiliary power supply
(circuit directly connected
to battery)
B5 10A Audio system
B6 10A Interior lamps
B7 30A Power window (driver’s)
B8 30A
Power window (assistant
driver’s)
B9 20A Engine control unit
B11 20A Heater mirror
B12 10A Automatic transmission
B13 15A Tester
B14 20A Headlamps (high beam)
B15 20A Left headlamp (low beam)
B16 20A
Right headlamp
(low beam)
B25 15A Tail lamps
Z12081
B16
B8
B9
B11
B12
B7
B6
B5
B4
B3
B2
B1
M8
M5
M9
M4
M6 M11
M3
M2
M1
B13
A4
A2
A1
S1
B14
B15
*
*
**
*
*

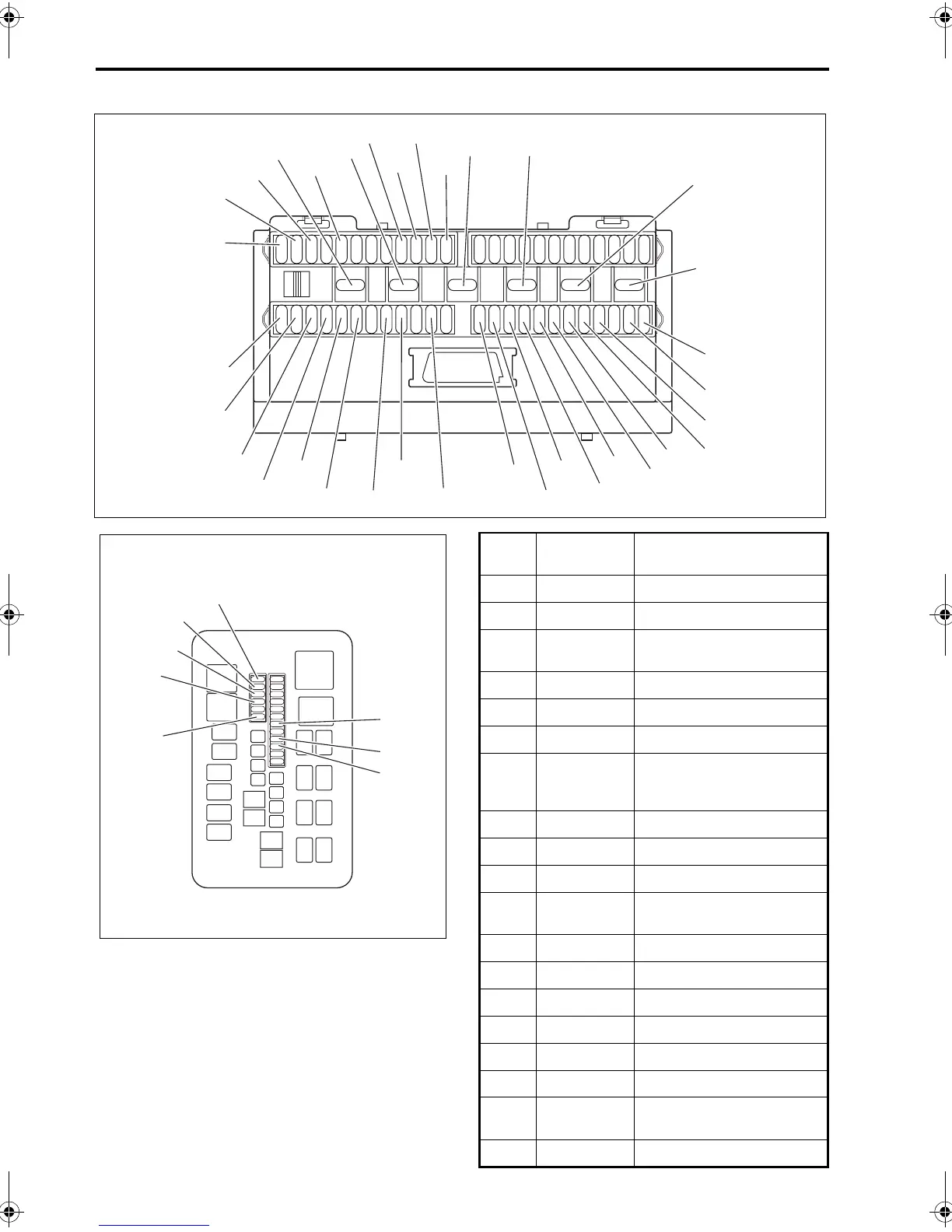

<Fuse box>
Z12082
B25
B27
B28
B29
B30
B33
B34
B36
<High-current fuse box>
