1 Headlamp bulb replacement
For safety and simplicity, bulb replacement is per-
formed with the headlamp removed. The front and
side turn signal lamp and dummy lamp must be
removed before the headlamp can be removed.
1.1 Headlamp removal and installation
• Headlamp removal

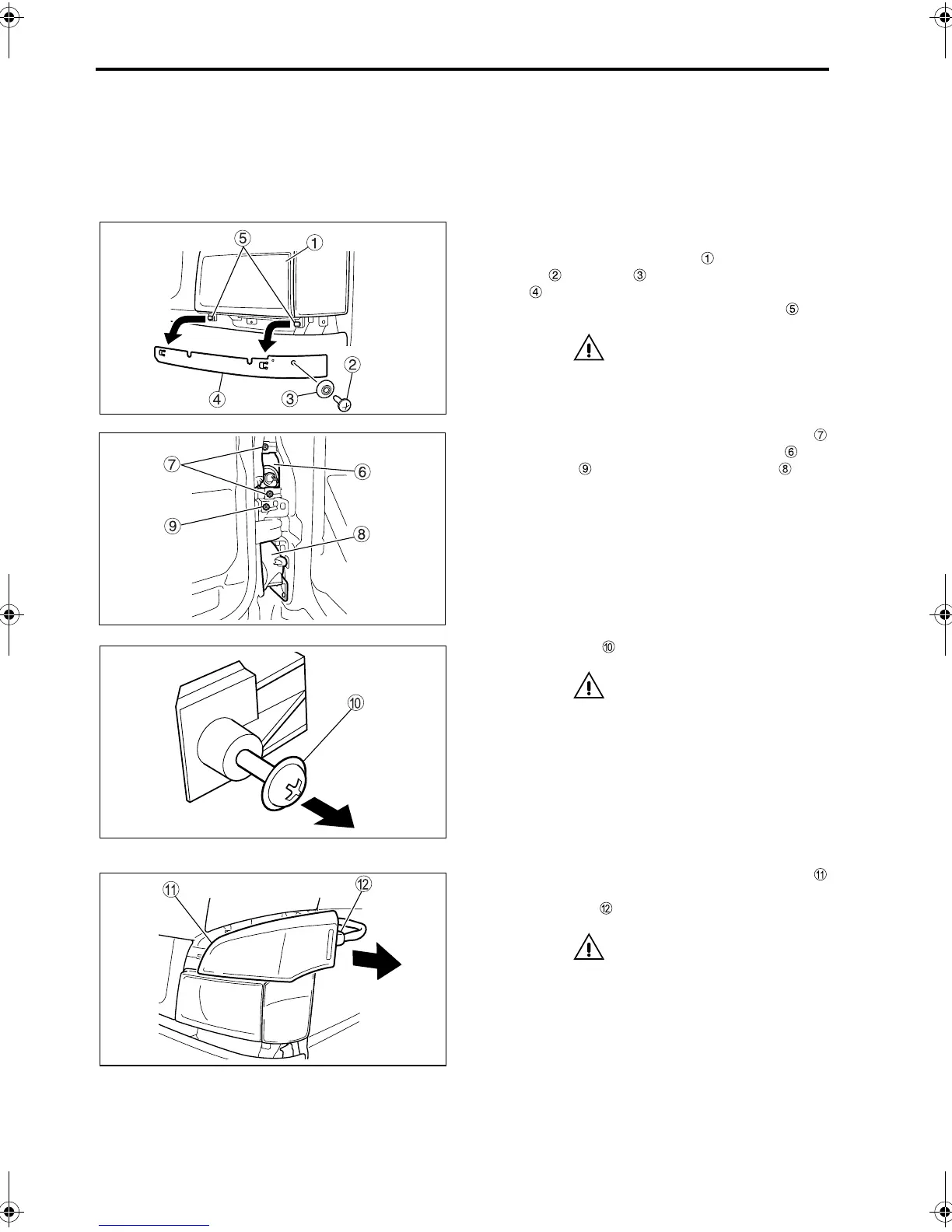

1. For removal of the headlamp , first remove the
screw and rivet , then move the lamp rub-
ber under the headlamp toward the centerline
of the vehicle and release it from the tabs .
CAUTION
When removing the lamp rubber, do not pull it
with excessive force or the tabs could break.
2. Open the door, then loosen the screws
behind the front and side turn signal lamp and
the screw behind the dummy lamp until
they spin freely.
NOTE:
The screws are designed not to come out.
3. Pull out screw toward you.
CAUTION
Unless the screw is pulled out, the front and
side turn signal lamp and dummy lamp will
catch on it and you will not be able to remove
them.
4. Close the door.
5. Remove the front and side turn signal lamp
toward the outside of the vehicle, then remove
the connector .
CAUTION
• When removing the front and side turn sig-
nal lamp, do not pull it forward (toward the
front of the vehicle) or its tabs could break.
• Do not open the door with the front and side
turn signal lamp moved outward (but not
completely removed) or the door could hit
and damage it.
Z11264
Z11265
Z11266
Z11267
