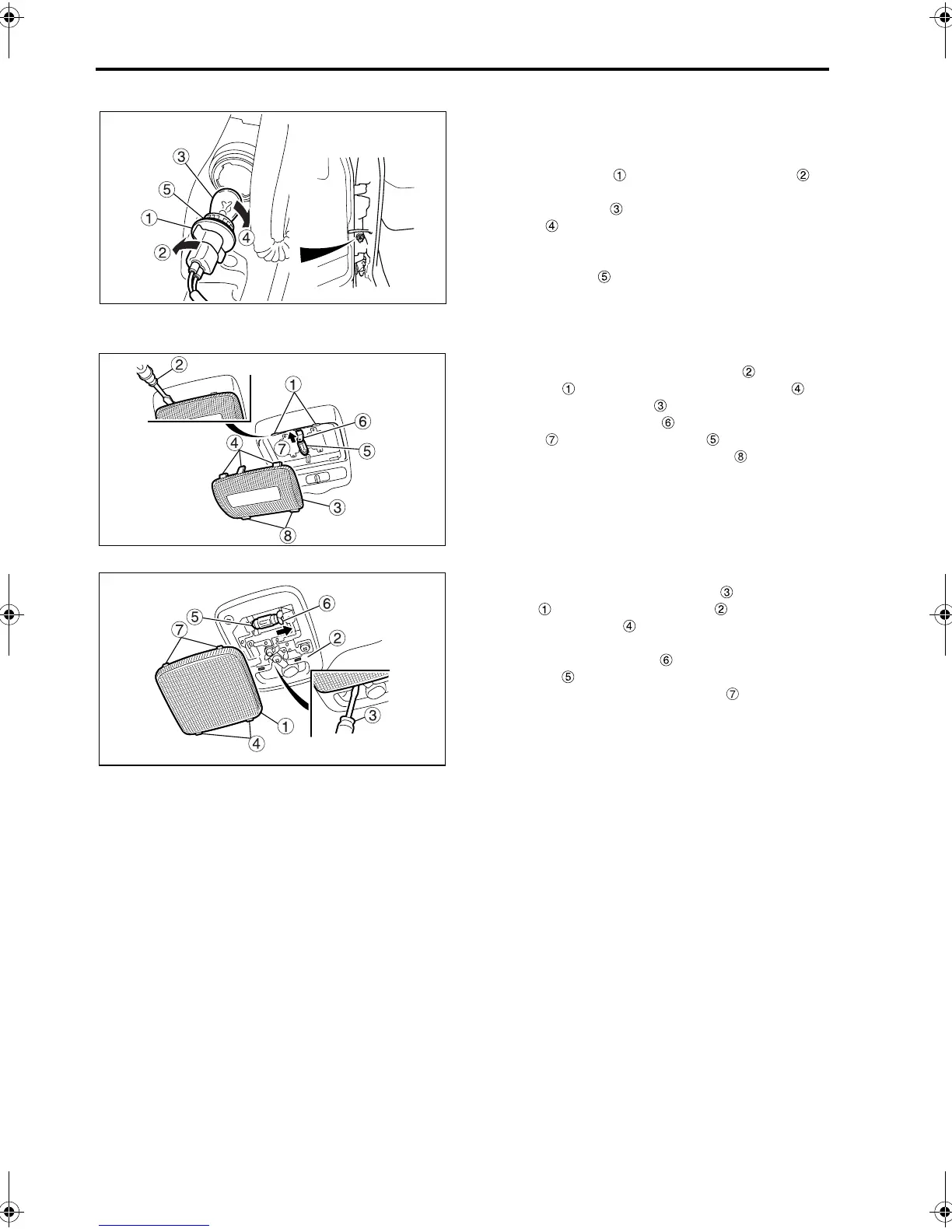

2 Front and side turn signal lamp bulb
replacement
1. Open the door.
2. Turn the socket in the direction of arrow to
remove it.
3. Press the bulb and turn it in the direction of
arrow to remove it.
4. Perform installation by following the removal
steps in reverse.
5. If the packing is dirty, clean it.
3 Interior lamp bulb replacement
3.1 Other than crew-cab models
1. Insert a flat-blade screwdriver into the
notches and use it to release the tabs on
the bottom of the lens . Remove the lens.
2. Push the bulb retainer in the direction of the
arrow and remove the bulb .
3. To install the lens, insert the tabs on the bot-
tom of the lens, align the tabs on the top of the
lens, and press the lens into place.
3.2 Crew-cab models <front and rear seats>
1. Insert a flat-blade screwdriver between the
lens and the interior lamp and use it to
release the tabs on the bottom of the lens.
Remove the lens.
2. Push the bulb retainer rightward and remove
the bulb .
3. To install the lens, insert the tabs on the top of
the lens and press the bottom of the lens into
place.
4 Replacing other lamps
1. Loosen the screw that secures the lens then
remove the lens.
2. Turn the bulb counterclockwise while pressing it
and remove it.
3. Insert a new bulb and turn it clockwise.
4. Fit the lens, ensuring that the packing is cor-
rectly positioned. If the packing is incorrectly
installed or twisted, water can enter the lamp
and shorten its life. If the packing is dirty, clean
it.
5. Uniformly tighten the screws that retain the lens.
