13-19

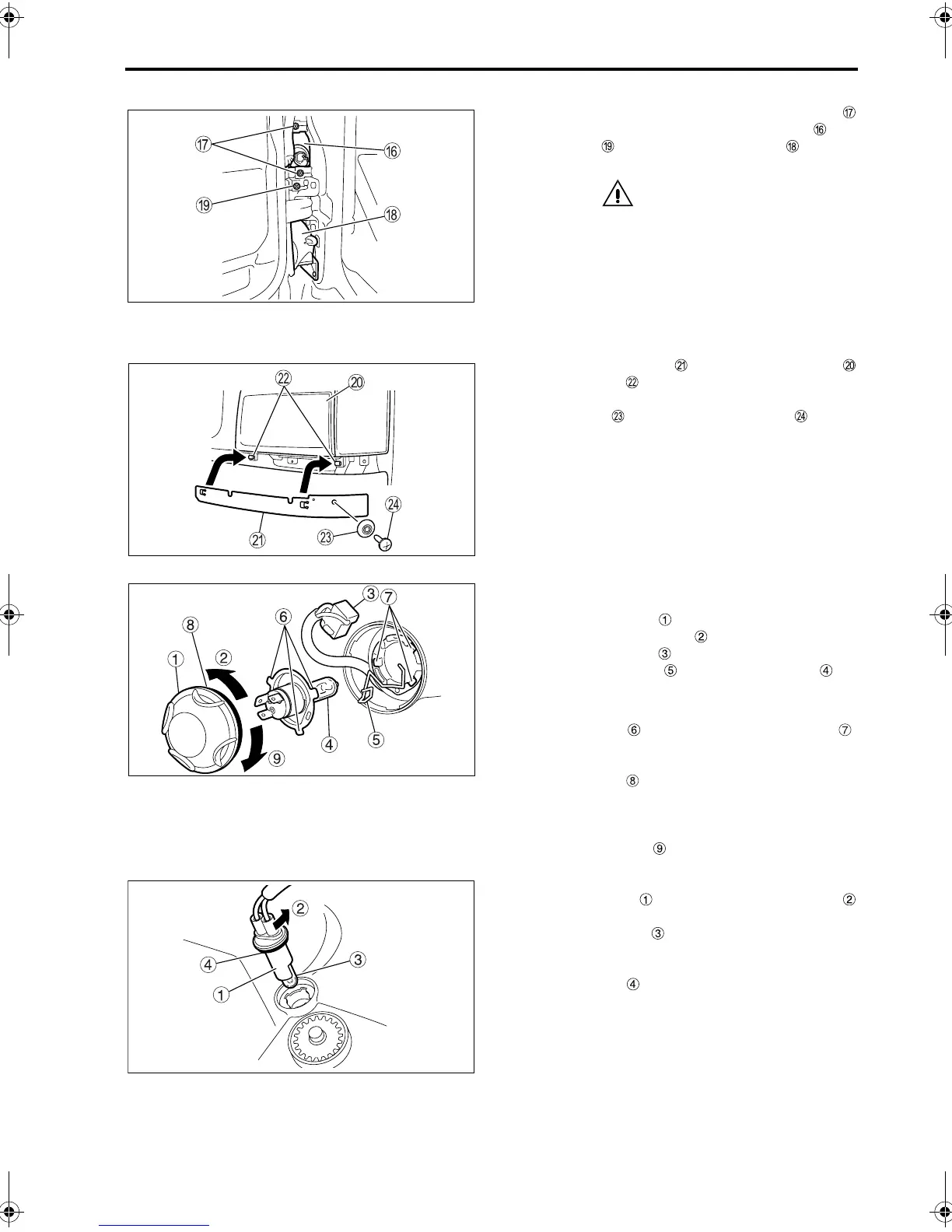

8. Open the door, then tighten the screws
behind the front and side turn signal lamp and
the screw behind the dummy lamp .
CAUTION
• Press the front and side turn signal lamp
fully in toward the centerline of the vehicle. If
the lamp was not pressed fully into place
and you opened the door, the door could hit
the lamp and damage it.
• Do not tighten the screws too tightly or the
mounting could get damaged.
9. Fit the lamp rubber under the headlamp
onto the tabs by moving it toward the outside
of the vehicle.
10. Fit the rivet , then press in the screw .
1.2 Headlamp bulb replacement
• Removal
1. Remove the cover by pressing it and turning it
in the direction of arrow .
2. Pull the connector toward you to remove it.
3. Remove the spring that retains the bulb .
4. Remove the bulb.
• Installation
1. Align the tabs on the bulb with the grooves ,
fit the bulb in place, and retain the bulb with the
spring.
2. If the packing is dirty, clean it. If the packing is
twisted, untwist it.
3. Securely press the connector into place.
4. Fit the cover by pressing it and turning it in the
direction of arrow .
1.3 Parking lamp bulb replacement
1. Turn the socket in the direction of the arrow
to remove it.
2. Remove the bulb .
3. Perform installation by following the removal
steps in reverse.
4. If the packing is dirty, clean it.
Z11624
Z11275
Z09155
Z11276
FEFG.book Page 19 Thursday, March 10, 2005 7:30 PM
