10 Buffer Memory
10.3 Parameter information area
97
FX3U-16CCL-M User's Manual
1
Introduction
2
Specification
3
System
Configuration
4
Installation
5
Wiring
6
Introduction of
Functions
7
Data Link
Processing
Time
8
Parameter
Setting
9
Data Link
Procedure
10
Buffer Memory

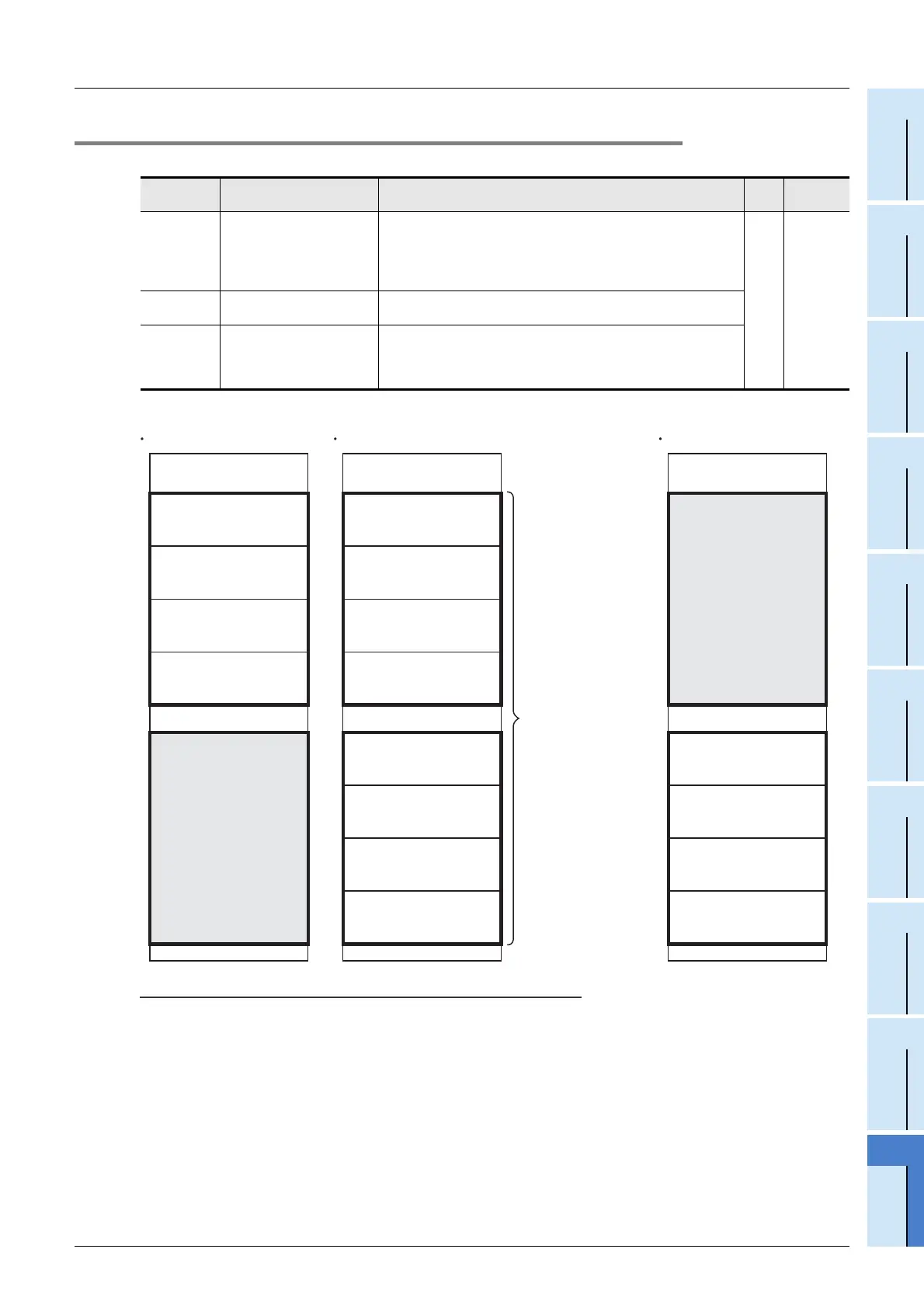

10.3.1 [BFM#0] Mode setting
Sets the operation mode of the master station.
Use buffer memory area in each mode of operation
Caution
When you use remote net additional mode, place ver. 1 compatible slave stations before ver. 2 compatible
slave stations.
When values other than 0 to 2 are set, operation is performed in "Remote net ver. 1 mode".
Setting
value
Mode Explanation
Read/
Write
Initial
value
K0 Remote net ver. 1 mode
Mode in which compatibility with the predecessor product (FX2N-
16CCL-M) is possible.
Select this mode when the number of cyclic points do not used be
increased or when the FX3U-16CCL-M is used to replace an existing
product module for maintenance.
R/W K0
K1 Remote net additional mode
Select this mode when increasing the number of cyclic points and
configuring a new system.
K2 Remote net ver. 2 mode
Select this mode when adding a ver. 2 compatible slave station to the
existing system to increase the number of cyclic points.
CC-Link ver. 1 compatible slave stations (not ver. 2 compatible slave
station) are also supported by the FX3U-16CCL-M.
Remote net ver. 1 mode
Ver.1 Remote input (RX)
area
(BFM#E0H to #FFH)
Ver.1 area
(FX
2N
-16CCL-M
Compatible area)
Ver.1 Remote output (RY)
area
(BFM#160H to #17FH)
Ver.1 Remote register
(RWw) area
(BFM#1E0H to #21FH)
Ver.1 Remote register
(RWr) area
(BFM#2E0H to #31FH)
Ver.2 Expanded area
Remote net ver. 1 mode
cannot be used this area.
Remote net additional mode
Ver.1 Remote input (RX)
area
(BFM#E0H to #FFH)
Ver.1 area
(FX
2N
-16CCL-M
Compatible area)
Ver.1 Remote output (RY)
area
(BFM#160H to #17FH)
Ver.1 Remote register
(RWw) area
(BFM#1E0H to #21FH)
Ver.1 Remote register
(RWr) area
(BFM#2E0H to #31FH)
Ver.2 Expanded area
Ver.2 Remote input (RX)
area
(BFM#4000H to #401FH)
Ver.2 Remote output (RY)
area
(BFM#4200H to #421FH)
Ver.2 Remote register
(RWw) area
(BFM#4400H to #445FH)
Ver.2 Remote register
(RWr) area
(BFM#4C00H to #4C5FH)
Remote net additional
mode uses both of ver. 1
compatible area and ver.
2 expanded area.
Remote net ver. 2 mode
Ver.1 area
(FX
2N
-16CCL-M
Compatible area)
Remote net ver. 2 mode
cannot be used this area.
Ver.2 Expanded area
Ver.2 Remote input (RX)
area
(BFM#4000H to #401FH)
Ver.2 Remote output (RY)
area
(BFM#4200H to #421FH)
Ver.2 Remote register
(RWw) area
(BFM#4400H to #443FH)
Ver.2 Remote register
(RWr) area
(BFM#4C00H to #4C3FH)
