1 Introduction
1.2 External Dimensions and Part Names
18
FX3U-16CCL-M User's Manual

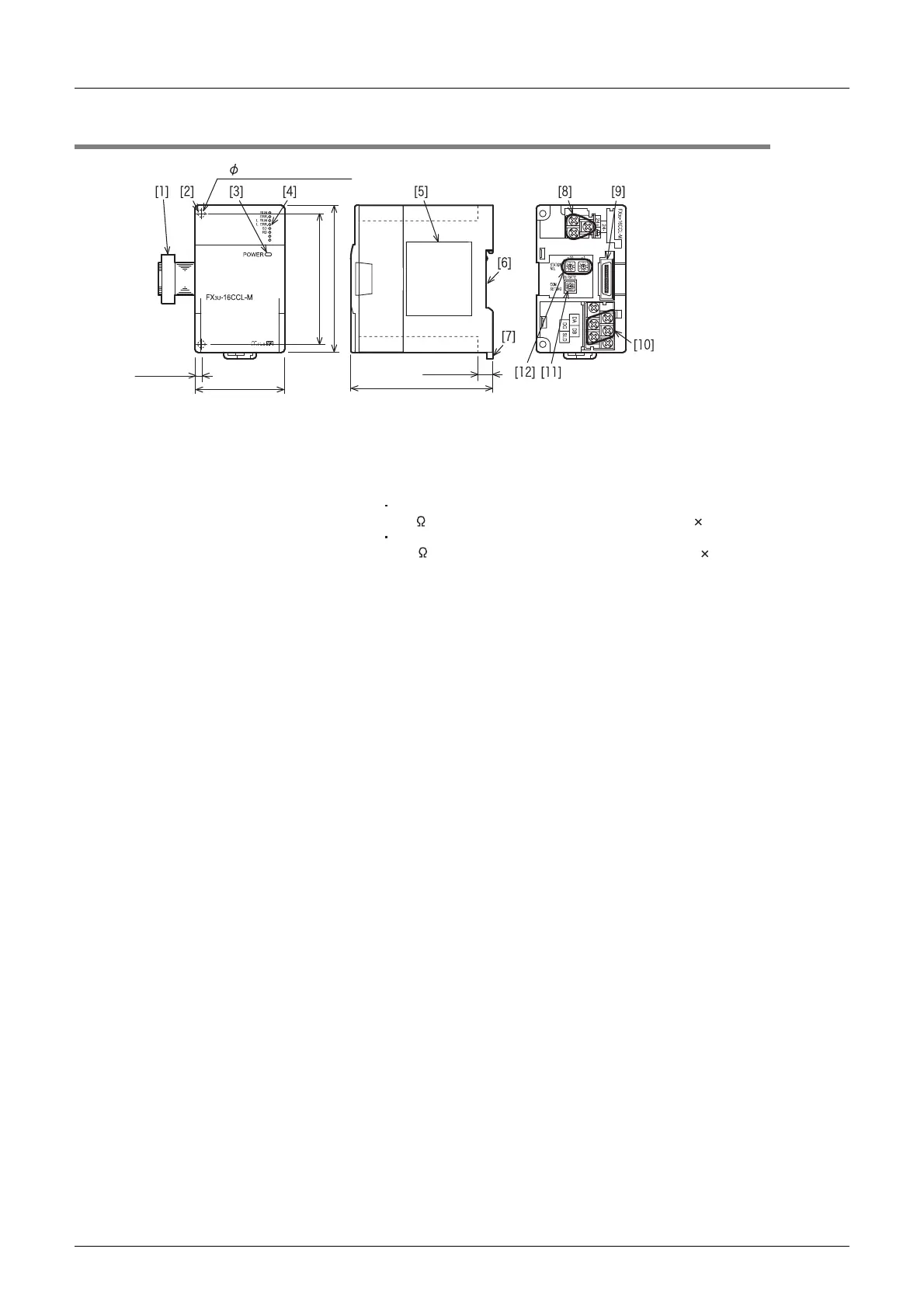

1.2 External Dimensions and Part Names
[1] Extension cable [7] DIN rail mounting hook
[2] Direct mounting hole: 2 holes of φ4.5 (0.18")
(mounting screw: M4 screw)
[8] Power supply terminal block
[3] Power LED (green) [9] Extension connector
[4] Status LEDs
→ Refer to Section 1.4
[10] CC-Link connection terminal block
[5] Name plate [11] Transmission rate setting switch
[6] DIN rail mounting groove (DIN rail: DIN46277,
35 mm (1.38") width)
[12] Station number setting switch
2- 4.5 mounting holes
Without top cover
4(0.16”)
55(2.17”)
80(3.15”)
(mounting hole pitch)
90(3.55”)
9(0.36”)
Unit : mm (inches)
MASS (Weight) : 0.3 kg (0.66 lbs)
Accessories : Label for indication of special function unit/block number,
Dust proof protection sheet,
Manual supplied with product,
Terminal resistor
For CC-Link dedicated cable
110 1/2 W (color cable: brown, brown and brown) 2 cables
For CC-Link dedicated high-performance cable
130 1/2 W (color cable: brown, orange and brown) 2 cables
87(3.43”)

Mitsubishi FX3U Specifications

General

Series	FX3U
Program Capacity	64k steps
Type	PLC
Power Supply	AC: 100-240V, DC: 24V
I/O Points	Up to 384 points
Communication	RS-232C, USB, Ethernet
Expansion	Supports multiple expansion modules including I/O, analog, and communication modules
Programming Language	Ladder Logic, SFC, Function Block Diagram
High-speed Processing	0.065 μs per basic instruction
Analog I/O	Available with expansion modules
Positioning Control	Up to 3 axes of positioning control
Weight	0.3 kg (Main unit)
