13.1.3 Setting of remote device station

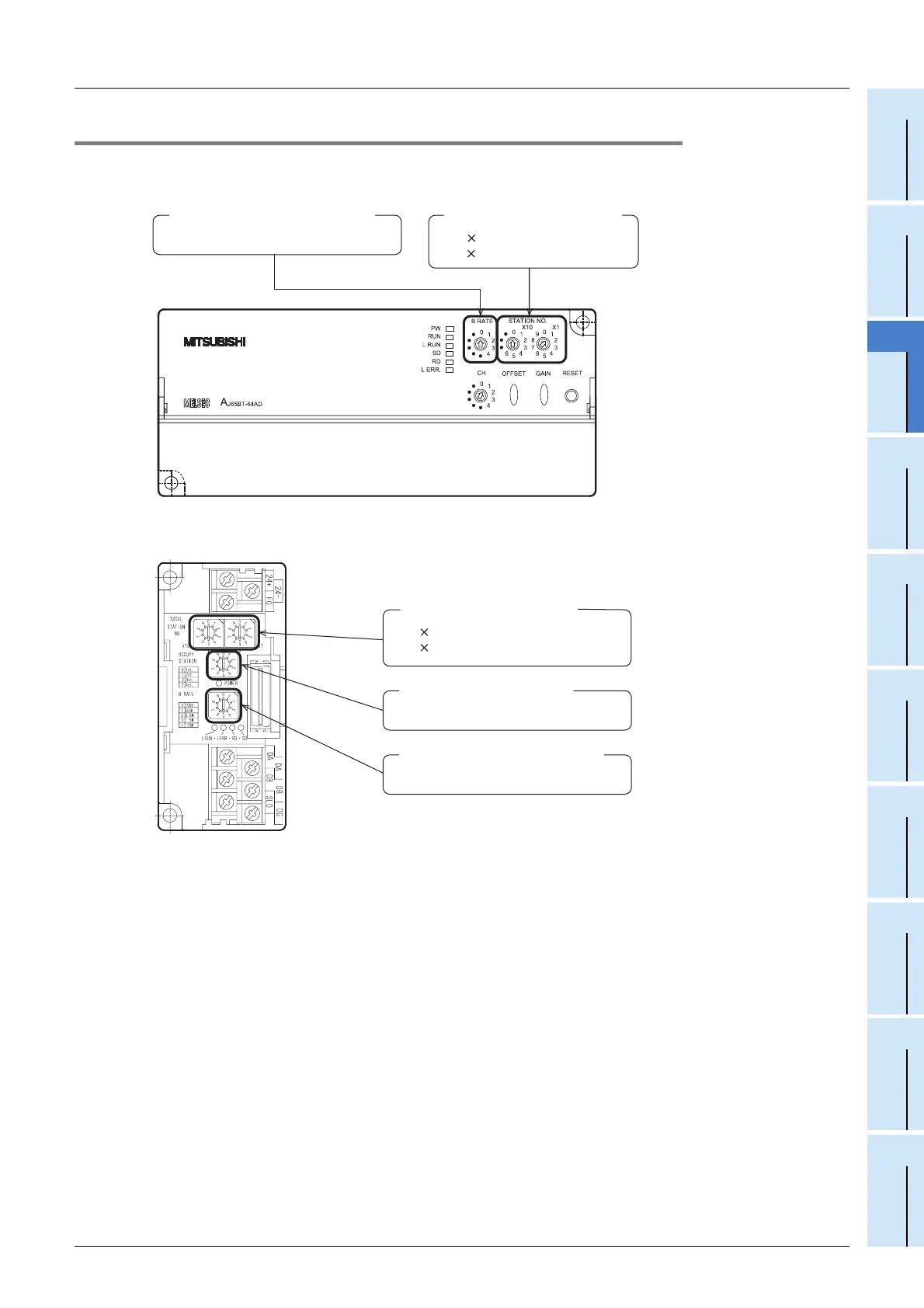

The figure below shows the setting of the switches in the remote device station.
• AJ65BT-64AD
•FX
2N-32CCL
2 (2.5 Mbps)
0 ( 10)
1 ( 1)
Transmission speed setting switch
Station number setting switch
0 ( 10)
3 ( 1)
2 (3 st.)
2 (2.5 Mbps)
Station number setting switch
Number of occupied stations
Transmission speed setting switch
