Mitsubishi FX3U User Manual

14 Example of Communication between Master Station
14.3 When Remote Net Additional Mode is Used
195
FX3U-16CCL-M User's Manual
11
Programming
12
Remote I/O Communication Example
13
Remote Device Communication Example
14
Int. Device Communication Example
15
Compound Sys. Communication Example
16
Troubleshooting
A
Version Information
B
Setting Sheet
C
Differences with FX
2N
-16CCL-M
14.3.3 Setting of intelligent device station

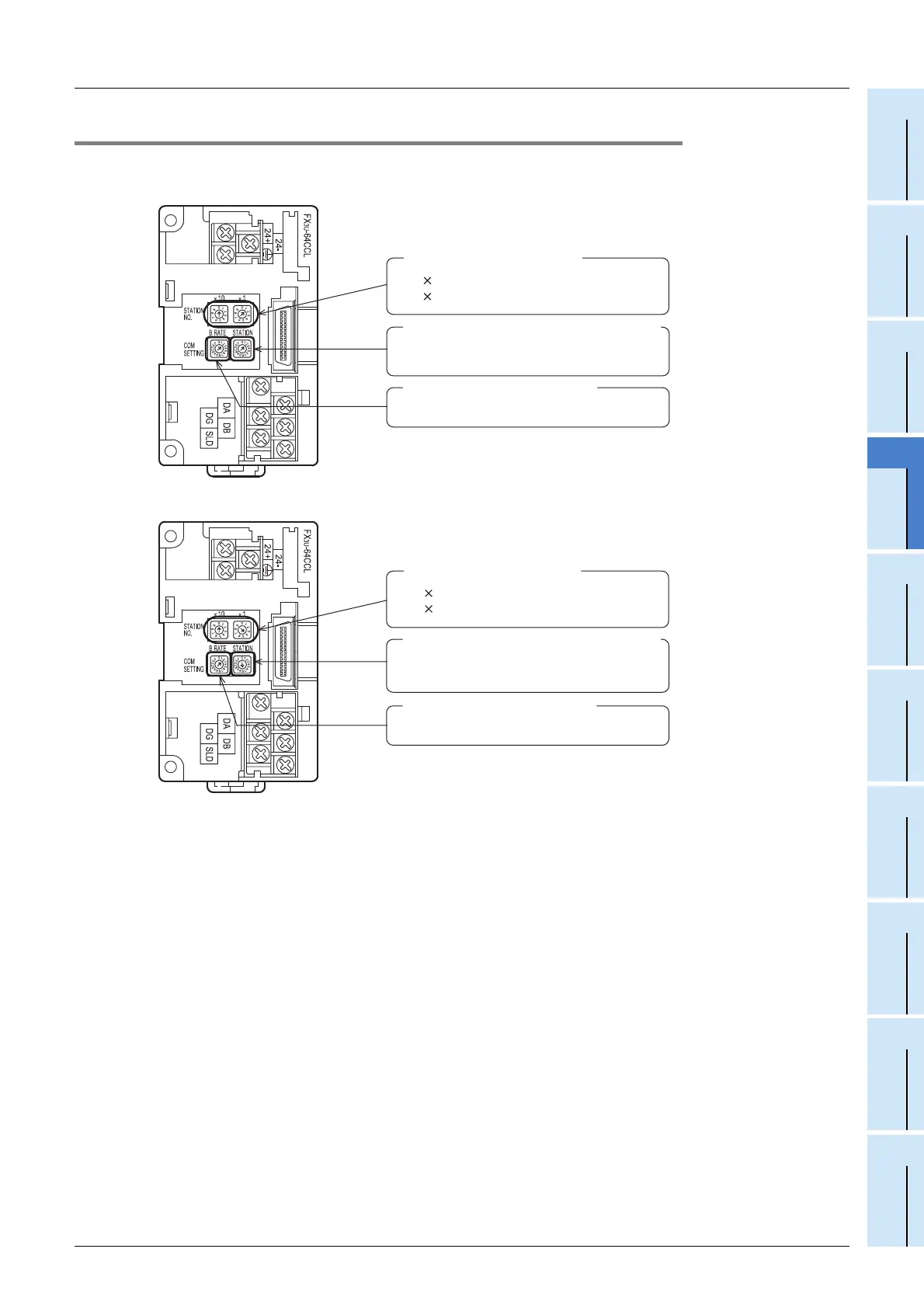

The figure below shows the setting of the switches in the intelligent device station (FX3U-64CCL).
•FX
3U-64CCL (Station No. 1)
•FX
3U-64CCL (Station No. 4)
Station number setting switch
0 ( 10)
1 ( 1)
Transmission rate setting switch
2 (2.5 Mbps)
Number of occupied stations and expanded
cyclic setting switch
2 (Occupies 3 stations, single)
Station number setting switch
0 ( 10)
4 ( 1)
Transmission rate setting switch
2 (2.5 Mbps)
Number of occupied stations and expanded
cyclic setting switch
8 (Occupies 1 station, quadruple)
