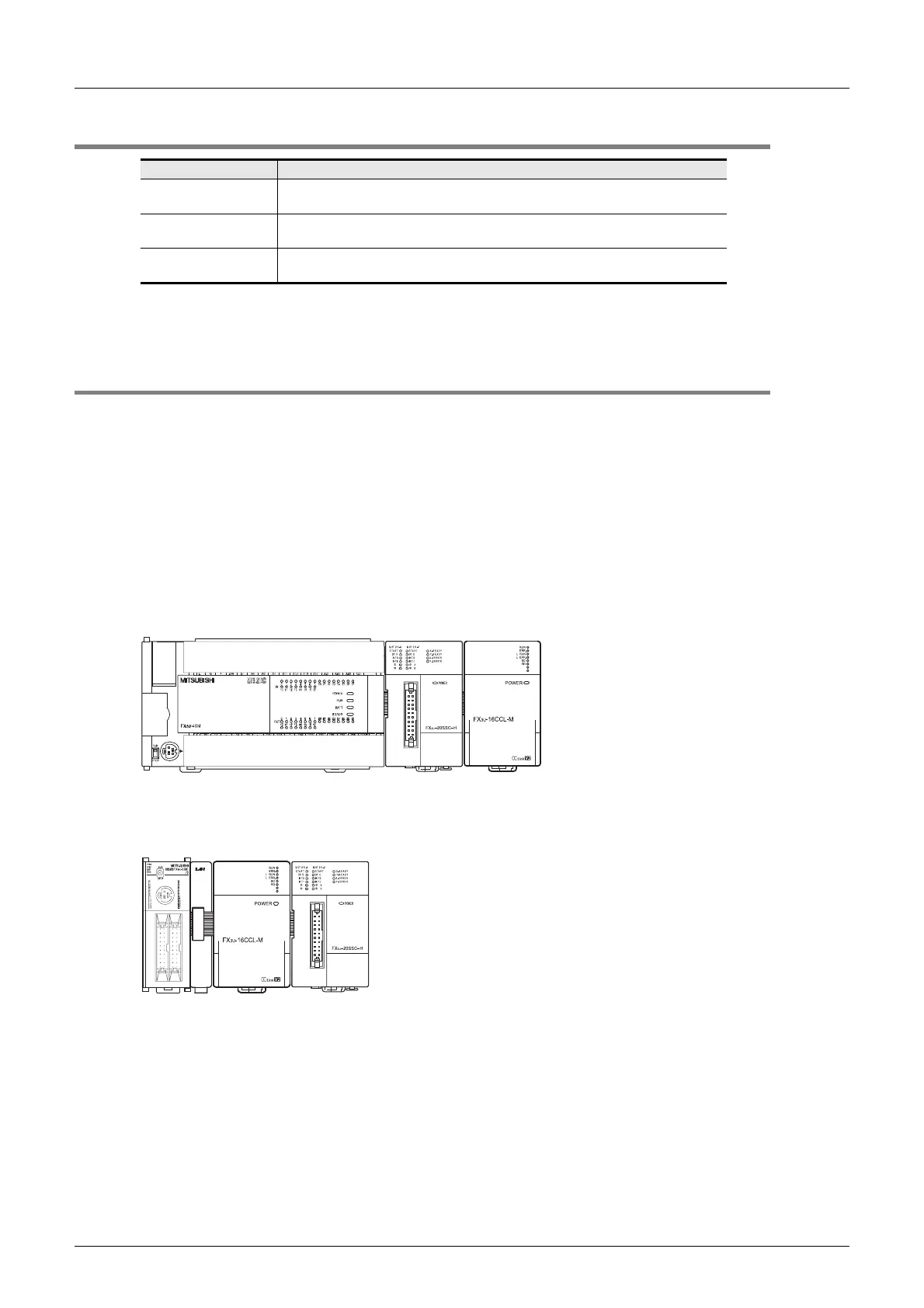

3 System Configuration
28
FX3U-16CCL-M User's Manual
3.2 Applicable PLC
3.2 Applicable PLC
The version number can be checked by reading the last three digits of device D8001/D8101.
*1. An FX
2NC-CNV-IF or FX3UC-1PS-5V is necessary to connect the FX3U-16CCL-M with the FX3UC PLC.
3.3 Connection with PLC
The FX3U-16CCL-M connects with a PLC via an extension cable.
The FX
3U-16CCL-M is handled as a special extension block of the PLC. The unit number of the FX3U-16CCL-
M is automatically assigned No. 0 to No. 7 (Unit No. 1 to No. 7 is assigned when the main unit is an FX
3UC-
32MT-LT(-2).) starting from the special function unit/block closest to the PLC main unit.
(This unit number is used for the designation of a FROM/TO instruction.)
For details on the assignment of the I/O number and unit number of the PLC, refer to the following manual
corresponding to the connected PLC.
Refer to FX
3G Hardware Edition.
Refer to FX
3U Hardware Edition.
Refer to FX
3UC Hardware Edition.
Only one FX
3U-16CCL-M unit can be connected to the FX3G/FX3U/FX3UC PLC.
•An FX
2NC-CNV-IF or FX3UC-1PS-5V is necessary to connect the FX3U-16CCL-M with the FX3UC PLC.
The optional FX
0N-65EC (FX0N-30EC) and FX2N-CNV-BC are necessary to lengthen the extension cable.
The number of I/O points occupied by the FX
3U-16CCL-M is eight. Make sure that the total number of I/O
points (occupied I/O points) of the main unit, extension unit(s), extension block(s) and the number of points
occupied by special function blocks does not exceed the maximum number of I/O points of the PLC.
For information on the maximum number of I/O points of the PLC, refer to the respective product manual.
Refer to FX
3G Hardware Edition.
Refer to FX
3U Hardware Edition.
Refer to FX
3UC Hardware Edition.
Model name Applicability
FX3G Series PLC
Ver. 1.00 and later
(Only one FX3U-16CCL-M unit can be connected to a main unit.)
FX3U Series PLC
Ver. 2.20 and later
(Only one FX3U-16CCL-M unit can be connected to a main unit.)
FX3UC Series PLC
*1
Ver. 2.20 and later
(Only one FX3U-16CCL-M unit can be connected to a main unit.)
FX3G/FX3U PLC
FX
3U-16CCL-M
FX
3UC PLC
FX
3U-16CCL-M
FX
2NC-CNV-IF
Other
extension
units/blocks
Other
extension
units/blocks
