13.2.3 Setting of remote device station

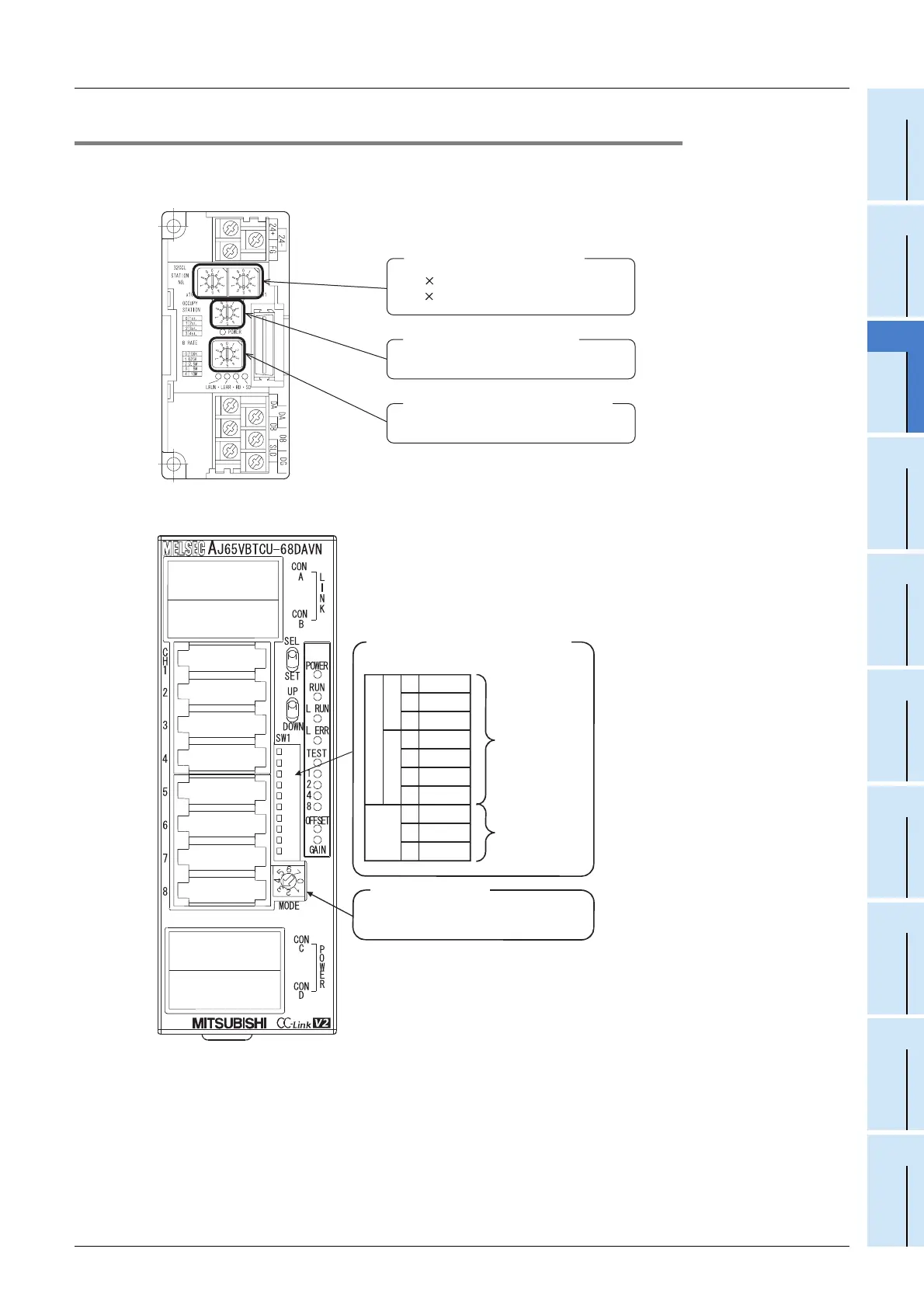

The figure below shows the setting of the switches in the remote device station.
•FX
2N-32CCL
• AJ65VBTCU-68DAVN
0 ( 10)
1 ( 1)
2 (3 st.)
2 (2.5 Mbps)
Station number setting switch
Number of occupied stations
Transmission speed setting switch
Station number setting switch,
Transmission speed setting switch
Station
number 4
2.5 Mbps
STATION NO.
40
20
10
8
4
2
1
4
2
1
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Mode select switch
3 (Ver.2 Mode Normal mode)
B RATE
1 place 10 place
OFF
ON
