Fuse load capacity
E01007700567
The
fuse capacity and the names of electrical sys-
tems protected by the fuses are indicated on the in-
side of the fuse lid (LHD vehicles), the inside of
the glove box (RHD vehicles) and inside of the
fuse block cover (inside of the engine compartment).
Passenger compartment fuse location table
NOTE
l
Spare fuses are provided on the lid of fuse
block in the engine compartment. Always
use a fuse of the same capacity for replace-
ment.

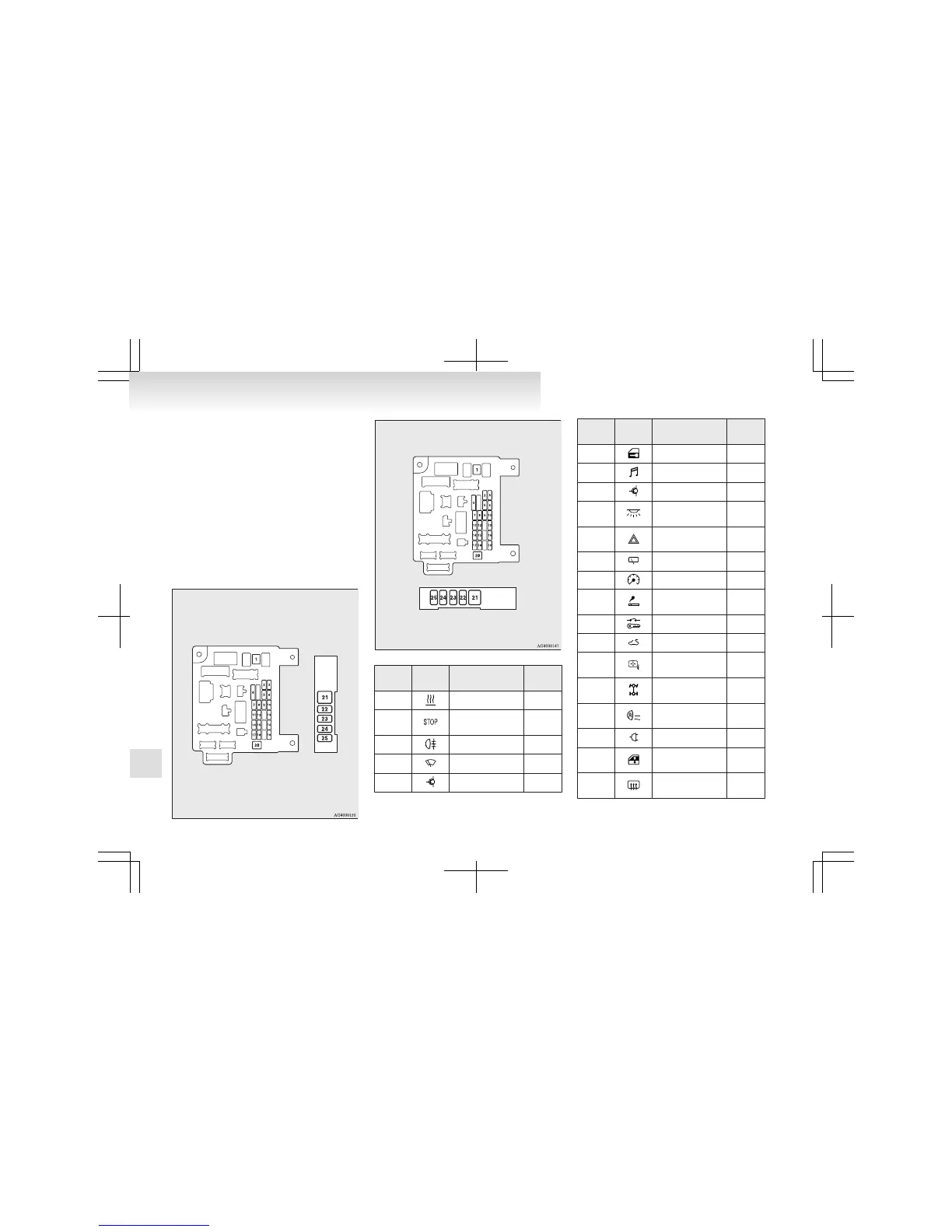

Passenger compartment fuse location (LHD)
Main fuse block Sub fuse block
Passenger compartment fuse location (RHD)
Sub fuse block
Main fuse block
No. Symbol Electrical system
Capaci-
ties
1 Heater
30 A
*
2
Stop lamps
(Brake lamps)
15 A
3 Rear fog lamp 10 A
4 Windscreen wipers 30 A
5 Option 10 A
*
: Fusible link
No. Symbol Electrical system
Capaci-
ties
6 Door locks 20 A
7 Radio 15 A
8
Control unit relay 7.5 A
9
Interior lamps
(Room lamps)
15 A
10
Hazard warning
flasher
15 A
11
Rear window wiper 15 A
12 Instruments 7.5 A
13
Cigarette lighter/
Accessory socket
15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16
Outside rear-view
mirrors
10 A
17
4-wheel drive sys-
tem
10 A
18
Reversing lamps
(Backup lamps)
7.5 A
19 Accessory socket 15 A
20
Electric window
control
30 A
*
21
Rear window de-
mister
30 A
*
*
: Fusible link
