No. Symbol Electrical system
Capaci-
ties
22 Heated door mirror 7.5 A
23 AC power supply 15 A
24 Power seats
25 (20)
A
25 Heated seat 30 A
*
: Fusible link
l
Some
fuses may not be installed on your ve-
hicle, depending on the vehicle model or spec-
ifications.
l
The table above shows the main equipment
corresponding to each fuse.

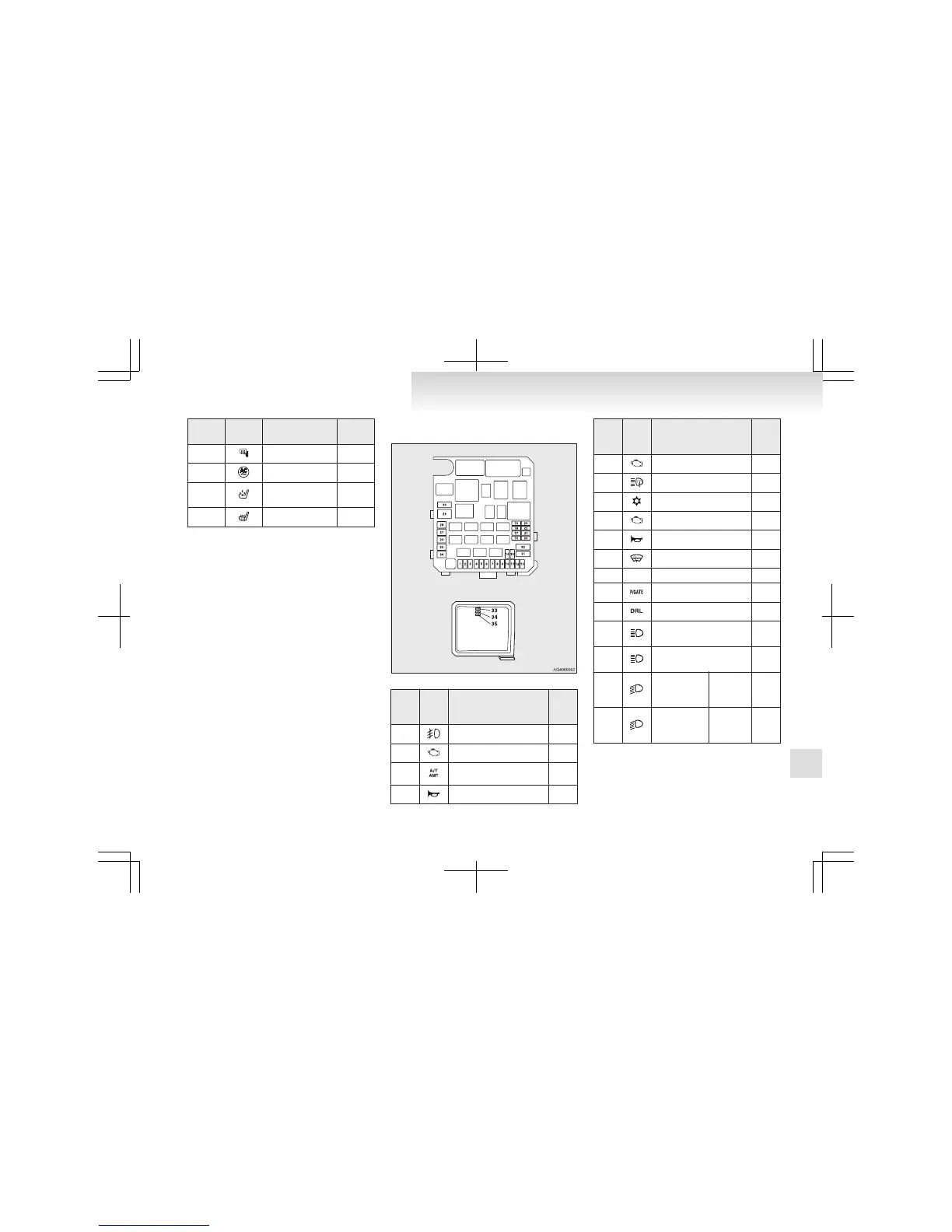

Engine compartment fuse location table
Engine compartment fuse location
Back of the fuse block cover
No.
Sym-
bol
Electrical system
Ca-
paci-
ties
1 Front fog lamps 15 A
2 Engine 7.5 A
3 Automatic transmission 20 A
4 Horn 10 A
*
: Fusible link
No.
Sym-
bol
Electrical system
Ca-
paci-
ties
5 Alternator 7.5 A
6 Headlamp washer 20 A
7
Air conditioning 10 A
8 ETV 15 A
9 Security horn 20 A
10 Wiper de-icer 15 A
11 — — —
12
Electric tailgate 30 A
13 Daytime running lamps 10 A
14
Headlamp high-beam
(left)
10 A
15
Headlamp high-beam
(right)
10 A
16
Headlamp
high/low
beam (left)
Discharge 20 A
17
Headlamp
high/low
beam (right)
Discharge 20 A
*
: Fusible link
Maintenance
8-19
8
OGEE12E1
