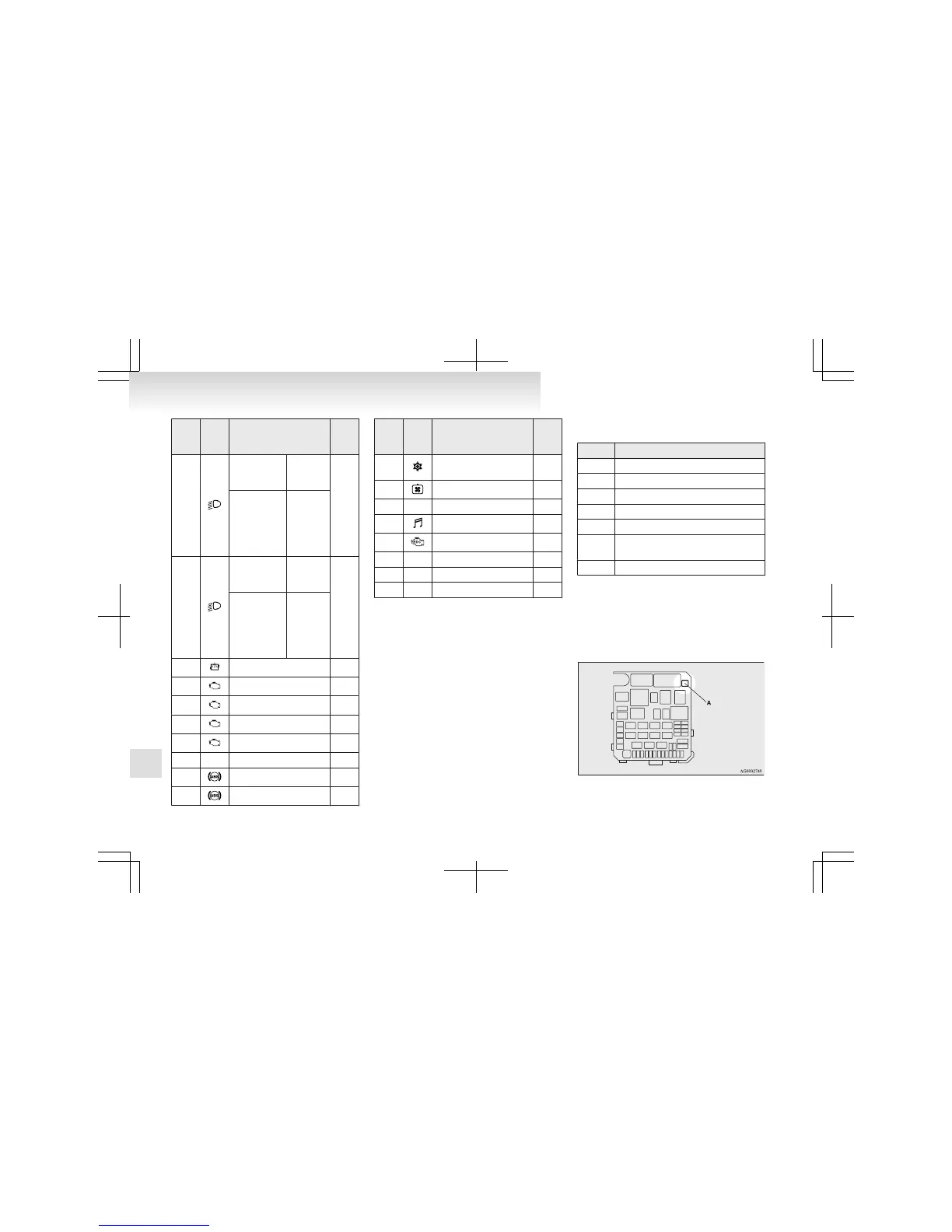

No.
Sym-
bol
Electrical system
Ca-
paci-
ties
18
Headlamp
low beam
(left)
Halogen
10 A
Bending
lamps (Adap-
tive Front
lighting Sys-
tem (AFS))
(left)
Discharge
19
Headlamp
low beam
(right)
Halogen
10 A
Bending
lamps (Adap-
tive Front
lighting Sys-
tem (AFS))
(right)
Discharge
20 Inter cooler water spray 10 A
21 Ignition coil 10 A
22 ENG/POWER 20 A
23
Fuel pump 20 A
24 Starter
30 A
*
25 — — —
26 Anti-lock brake system
40 A
*
27 Anti-lock brake system
30 A
*
*
: Fusible link
No.
Sym-
bol
Electrical system
Ca-
paci-
ties
28
Air conditioning condens-
er fan motor
30 A
*
29 Radiator fan motor
40 A
*
30 IOD IOD 30 A
31 Audio system amp 30 A
32
Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 A
35 — Spare fuse 20 A
*
: Fusible link
l
Some
fuses may not be installed on your ve-
hicle, depending on the vehicle model or spec-
ifications.
l
The table above shows the main equipment
corresponding to each fuse.
The fuse block does not contain spare 7.5 A, 25 A
or 30 A fuses. If one of these fuses burns out, sub-
stitute with the following fuse.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a fuse of
the correct capacity as soon as possible.
Identification of fuse
E01008100337
Capacity Colour
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A
Green (fuse type)/
Pink (fusible link type)
40 A Green
Fuse replacement
E01007800731
1. Before replacing a fuse, always turn off the
electrical circuit concerned and place the ig-
nition switch in the “LOCK” position.
2. Remove the fuse puller (A) from the inside
of the fuse block in the engine compartment.
3. Referring
to the fuse load capacity table,
check the fuse pertaining to the problem.
Maintenance
8-20
8
