Rear combination lamps
E01004201177

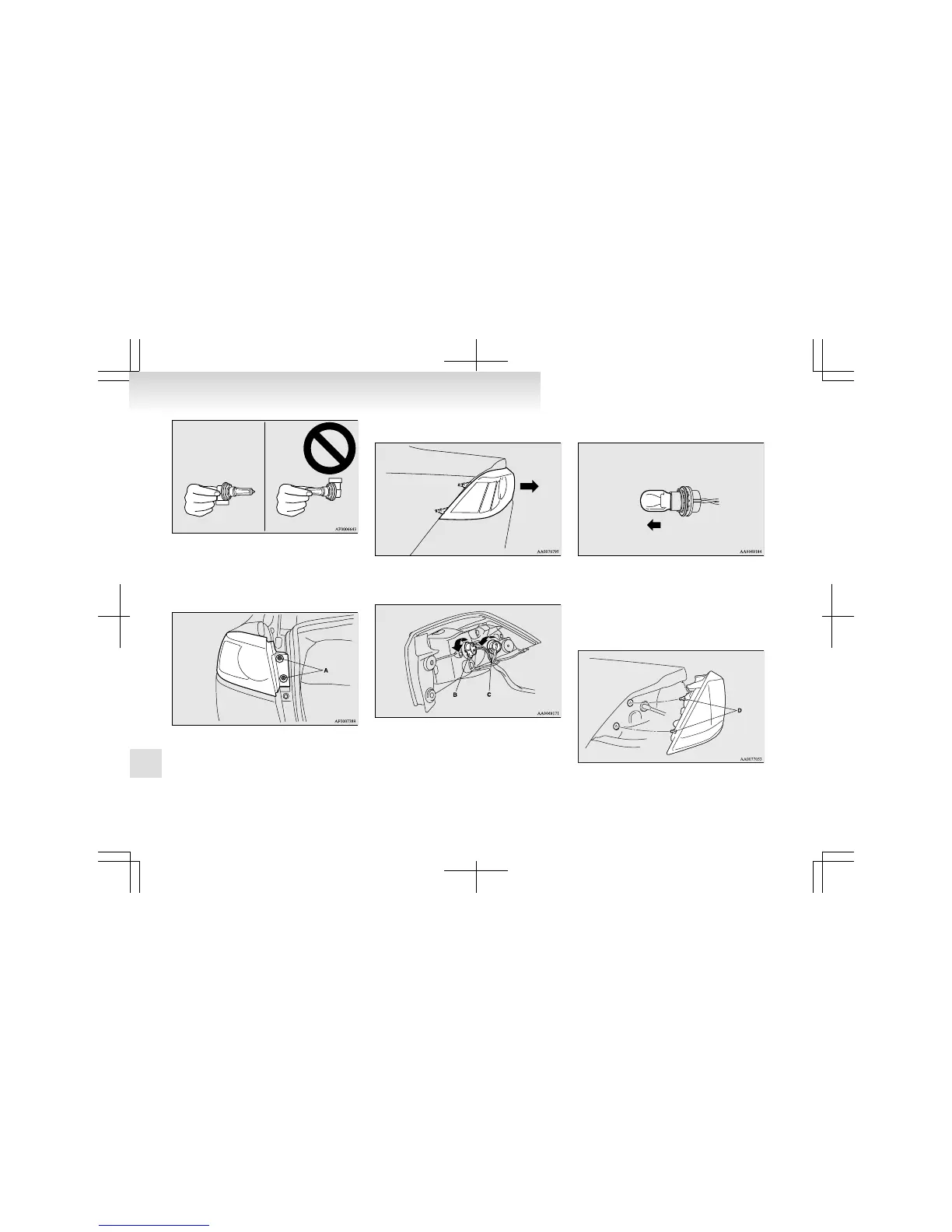

Stop and tail lamps and rear turn-signal lamps
1.
Remove the screws (A) from the lamp unit.
2. Remove the lamp unit in the rear direction.
3. Remove
the socket and bulb assemblies by
turning them anticlockwise.
B- Stop and tail lamp
C- Rear turn-signal lamp
4. Remove the bulb by pulling it out.
5. To
install the bulb, perform the removal
steps in reverse.
NOTE
l
When mounting the lamp unit, align the pins
(D) on the lamp unit with the holes in the body.
Tail lamps, reversing lamp and rear fog lamp
1.
Open the trunk lid.
Maintenance
8-26
