E-10

3 Wiring

3.1 Terminal Layout

/FX

3UC

Series PLC User's Manual - Analog Control Edition

-4AD-PT-ADP (4-channel Platinum Resistance Thermometer Data Input)

3.1 Terminal Layout

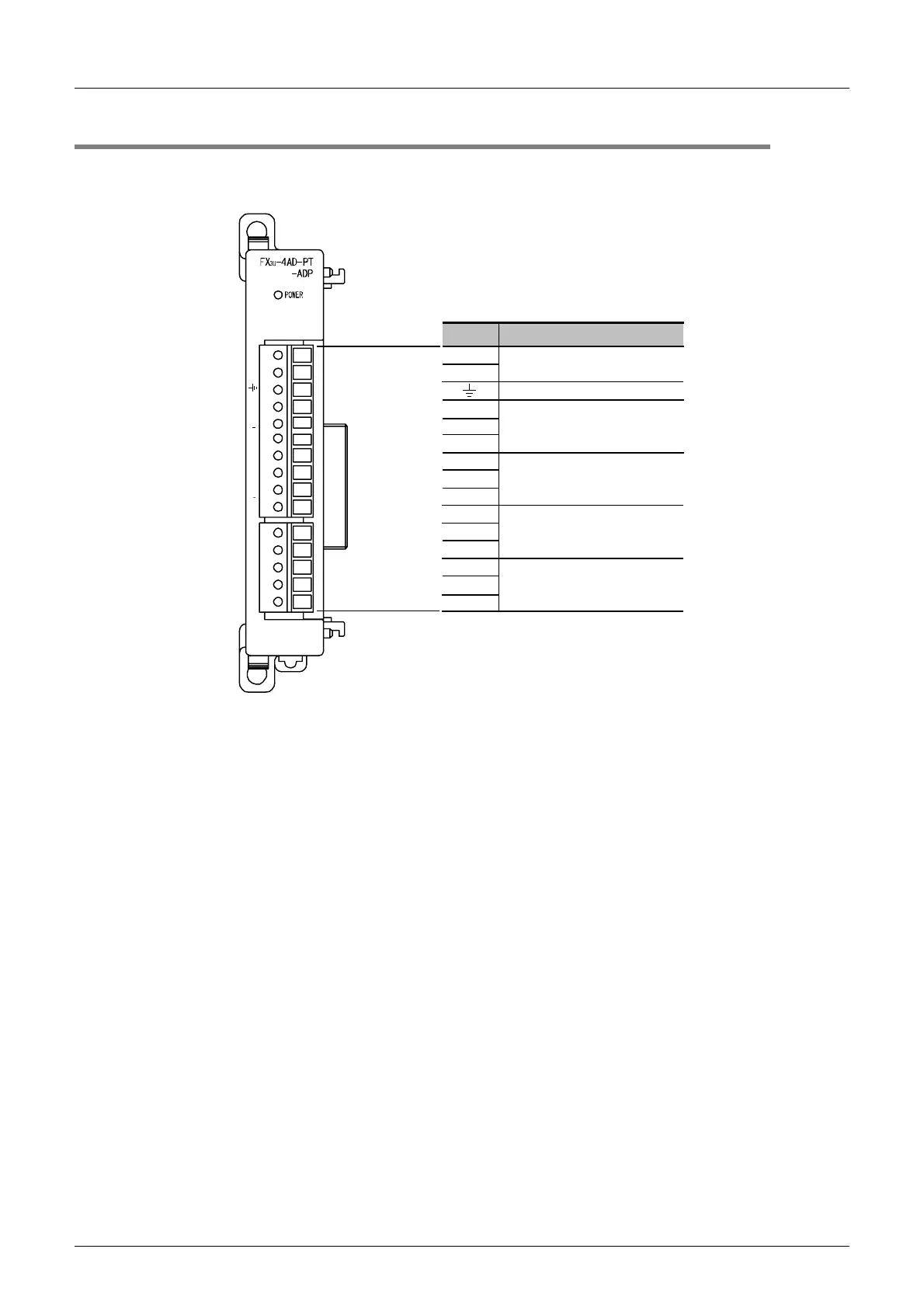

The terminals of PT-ADP are arranged as follows:

Signal Application

External power

Channel-1 platinum

resistance thermometer

sensor input

Channel-3 platinum

resistance thermometer

sensor input

Channel-4 platinum

resistance thermometer

sensor input

Channel-2 platinum

resistance thermometer

sensor input

24+

24-

L1-

I1-

L2+

L3-

I3-

L4+

I4-

L1+

L2-

I2-

L3+

L4-

Ground terminal

24+24-L1+L1-I1-L2+L2-I2-L3+L3-I3-L4+L4-I4-
