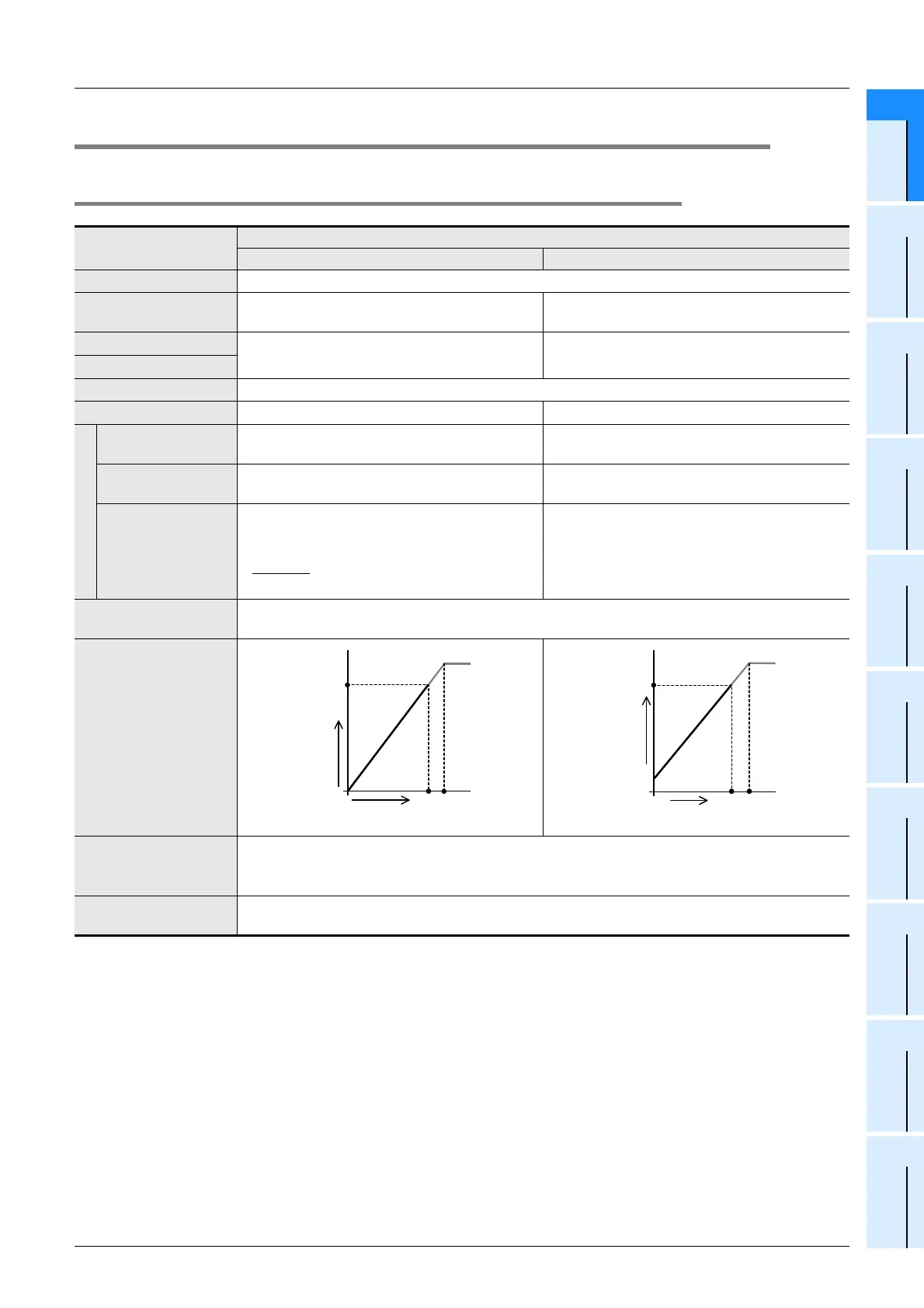

4.2.1 FX3U-4DA-ADP
Specifications
FX3U-4DA-ADP
Voltage output Current output
Number of output points 4ch
Analog output range
0V to 10V DC
(External load: 5k to 1MΩ)
4mA to 20mA DC
(External load: 500Ω or less)
Offset
Impossible to change Impossible to change
Gain
Digital input 12 bits, binary
Resolution 2.5mV(10V×1/4000) 4µA(16mA×1/4000)
Overall accuracy
Ambient temperature:
25±5°C
±0.5%(±50mV) for full scale of 10V ±0.5%(±80µA) for full scale of 16mA
Ambient temperature:
0 to 55°C
±1.0%(±100mV) for full scale of 10V ±1.0%(±160µA) for full scale of 16mA
Reference
If the external load resistance (Rs) is less than
5kΩ, the load will be increased as shown in the
following formula: (Increase: 100 mV per 1%)
-
Time required for D/A
conversion
200µs (The data will be updated at every scan time.)
Output characteristics
Insulation method
• The photocoupler is used to insulate the analog output area from the PLC.
• The DC/DC converter is used to insulate the power supply from the analog inputs.
• Channels are not insulated from each other.
Number of I/O occupied
points
0 point (This number is not related to the maximum I/O points of the PLC.)
47 × 100
Rs+47
-0.9(%)
0
10V
4000
Digital input
Analog output
Approx. 4080
0
20mA
4000
Digital input
Analog output
4mA
Approx. 4080
