3 Wiring

3.1 Terminal Layout

/FX

3UC

Series PLC User's Manual - Analog Control Edition

FX3U-4AD-TC-ADP (4-channel Thermocouple Data Input)

3.1 Terminal Layout

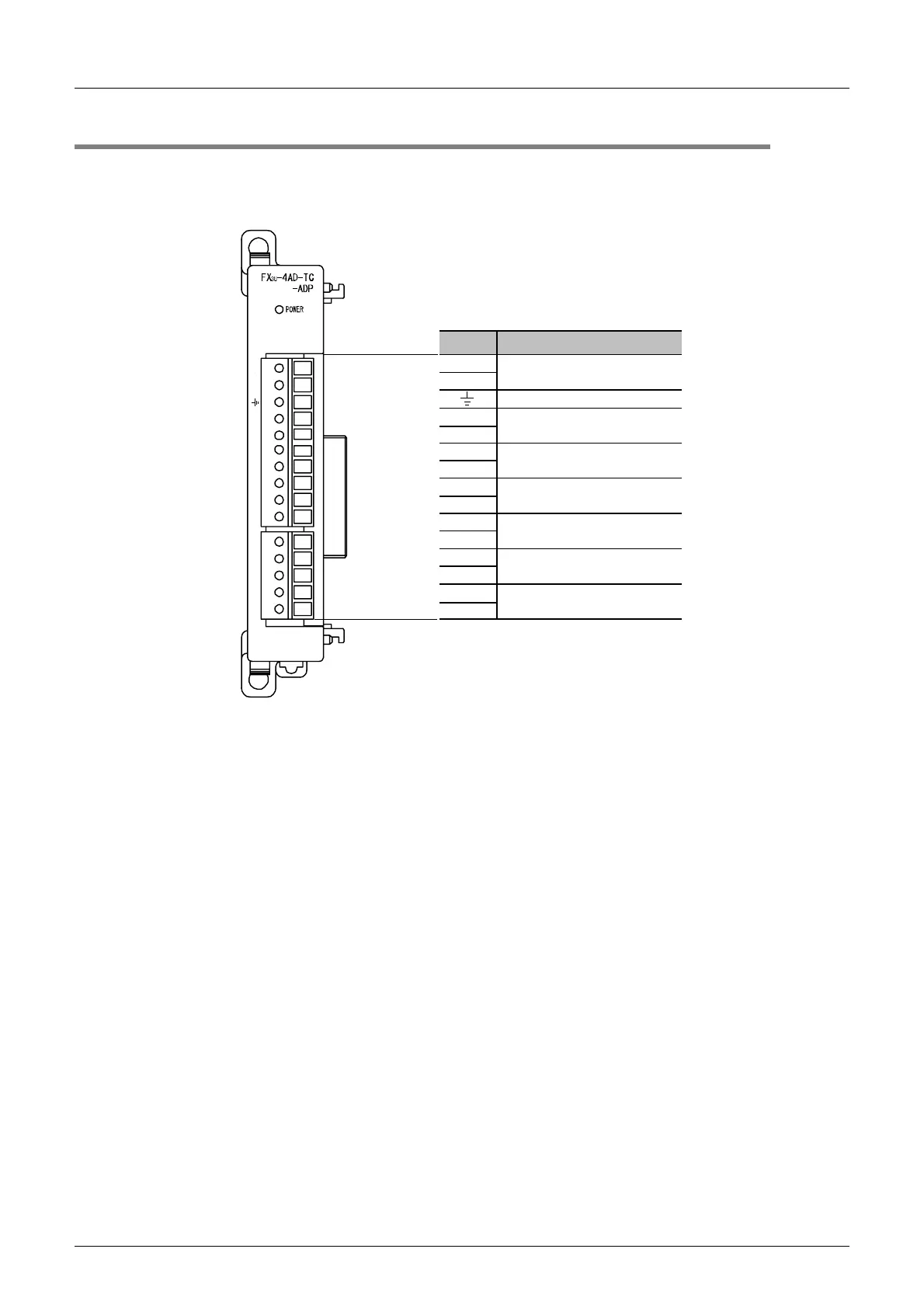

The terminals of TC-ADP are arranged as follows:

Signal Application

External power

Unused

(Do not connect any lines.)

Channel-3 thermocouple

sensor input

Channel-4 thermocouple

sensor input

Channel-2 thermocouple

sensor input

24+

24-

•

L1+

L2+

L3-

L4+

•

L2-

L1-

L3+

L4-

Ground terminal

J-type

Channel-1 thermocouple

sensor input

Switches the type between

type K and type J.

24+24-••J-typeJ-typeL1+L1-L2+L2-L3+L3-L4+I4-
