5-34
RST

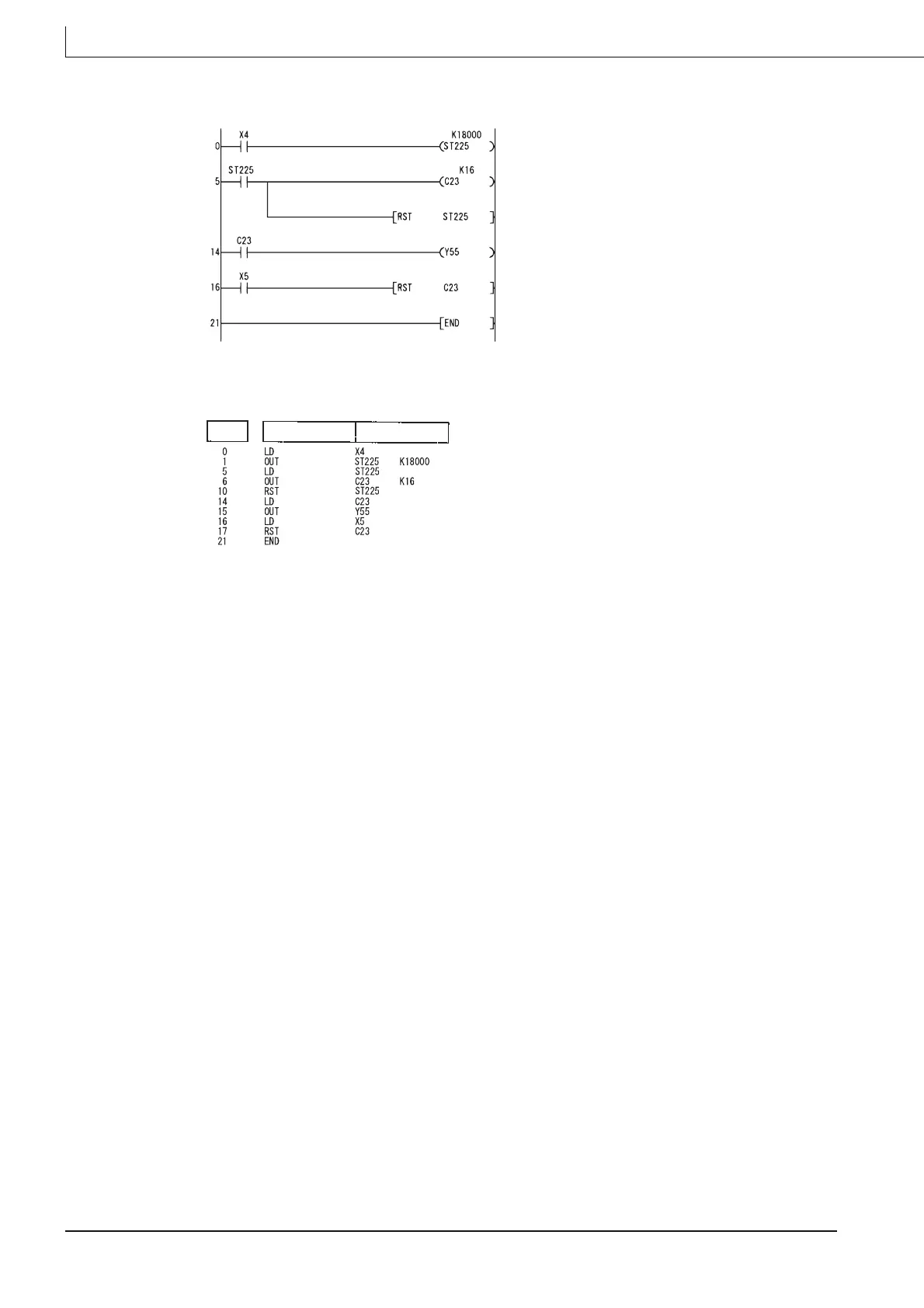

(2) The following program resets the 100 ms retentive timer and counter.
[Ladder Mode]
[List Mode]
When ST225 is set as retentive timer, it is
turned ON when X4 ON time reaches 30 min.
Counts the number of times ST225 was
turned ON.
Resets the coil, contact and present value of
ST225 when the contact of ST
225 is turned ON.
Y55 goes ON at the count-up of C23.
Resets C23 to 0 when X5 is turned ON.
Step
Instruction
Device
