Mitsubishi MELSEC Q Series Programming Manual

5-46
SFT(P)
Program Example

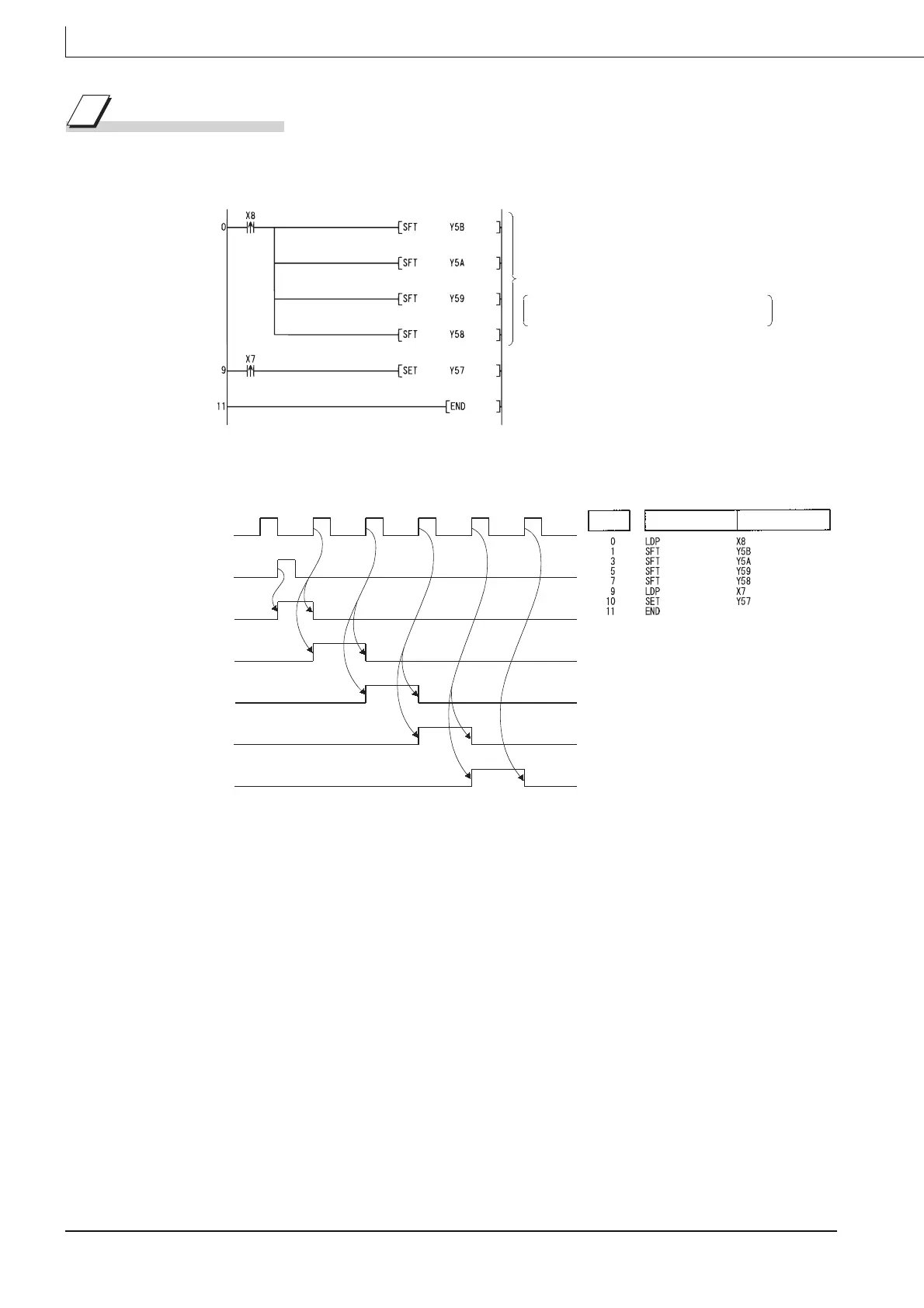

(1) The following program shifts Y57 to Y5B when X8 goes ON.
[Ladder Mode]
[Timing Chart] [List Mode]
Executes shift for Y57 to Y5B when X8 goes
ON.
Start programming from the device having
a large number.
Turns Y57 ON when X7 goes ON.
ON
OFF
X8
ON
OFF
X7
ON
OFF
Y57
ON
OFF
Y58
OFF
Y59
ON
OFF
Y
5A
ON
OFF
Y
5B
ON
Step
Instruction
Device
