Mitsubishi MELSEC Q Series Programming Manual

6-157
STMR
1
2
3
4
4
6
7
8
6.8 Other Convenient Instructions 6.8.4 Special function timer (STMR)

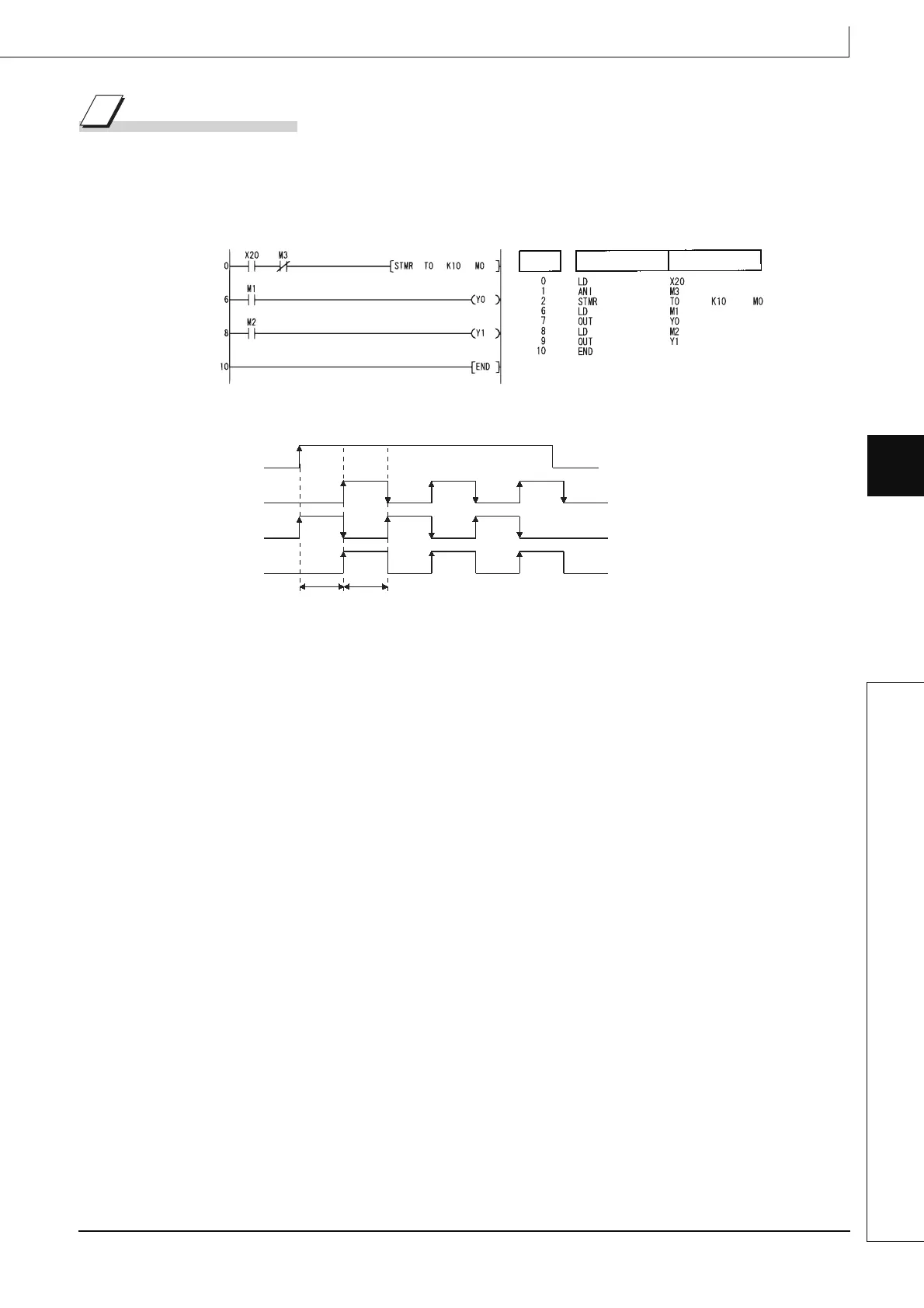

Program Example
(1) The following program turns Y0 and Y1 ON and OFF once each second (flicker) when X20
is ON.
(Uses 100 ms timer)
[Ladder Mode] [List Mode]
[Timing Chart]
Step
Instruction
Device
M1, Y0
X20
M2, Y1
M3
1 sec 1 sec
