Mitsubishi MELSEC Q Series Programming Manual

6-163
RAMP
1
2
3
4
4
6
7
8
6.8 Other Convenient Instructions 6.8.6 Ramp signal (RAMP)
Program Example
(1) The following program changes the contents of D0 from 10 to 100 in a total of 6 scans, and
saves the contents of D0 when the move has been completed.

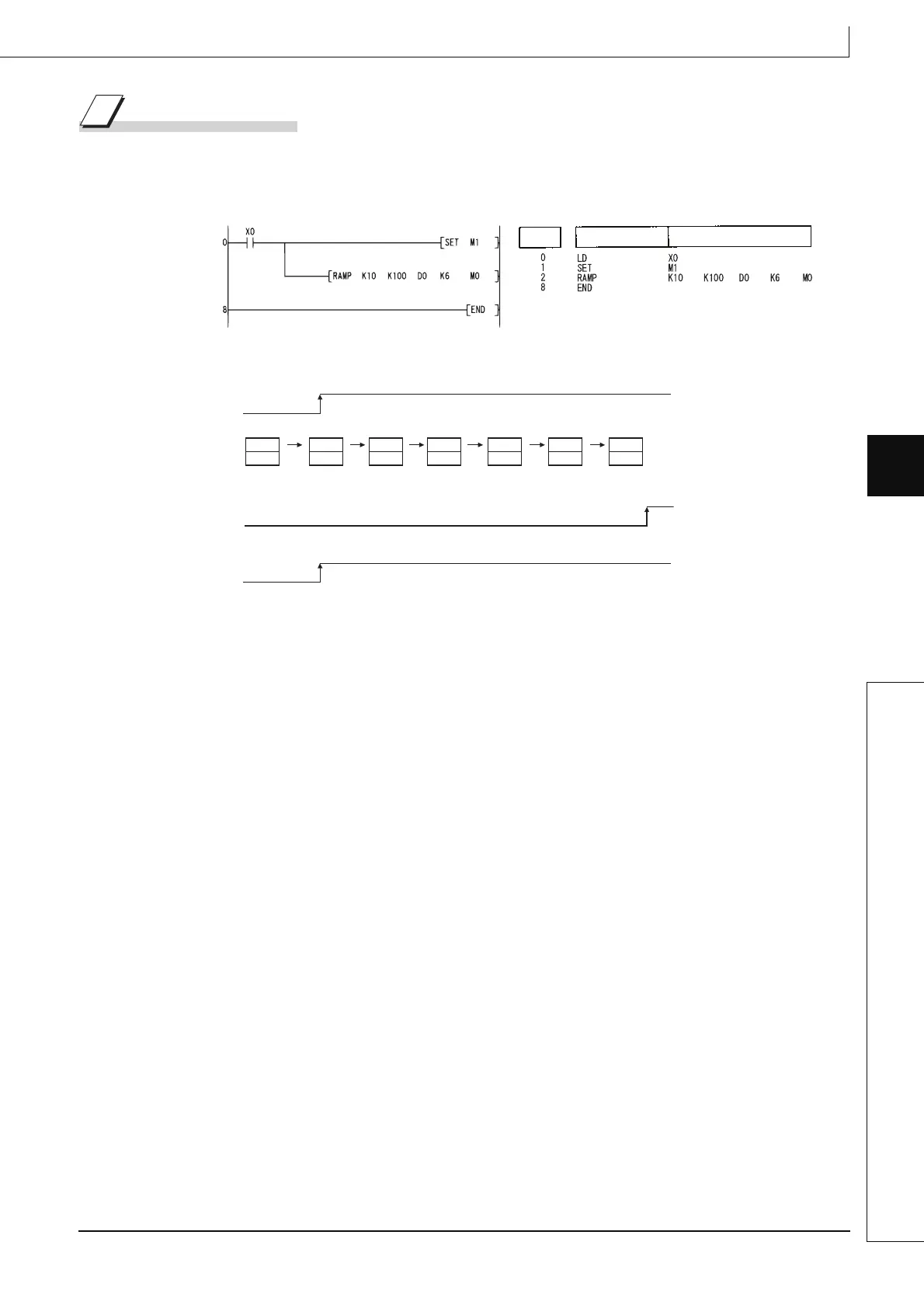

[Ladder Mode] [List Mode]
[Timing Chart]
Step
Instruction
Device
1scan 1scan 1scan 1scan 1scan 1scan
X0
10
0
25
1
40
2
55
3
70
4
85
5
100
6
OFF
ON
ON
ON
D0
D1
M0 OFF
M1 OFF
