Mitsubishi MELSEC Q Series Programming Manual

7-80
UNI(P)
Operation Error
(1) In any of the following cases, an operation error occurs, the error flag (SM0) turns ON, and
an error code is stored into SD0.
• The range n-points from exceeds the relevant device. (Error code: 4101)
• The value of n is outside the 0 to 4 range. (Error code: 4100)

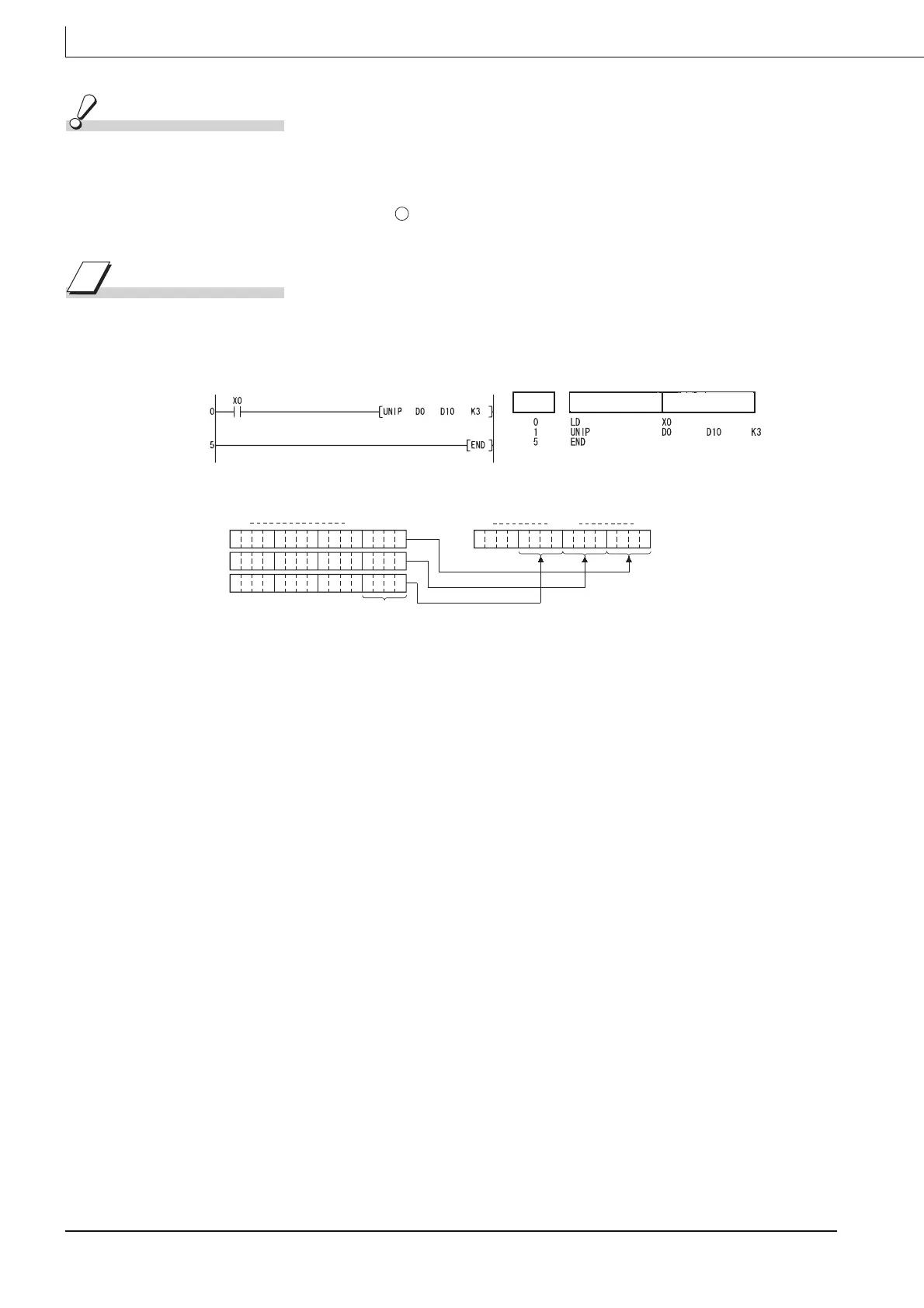

Program Example
(1) The following program links the lower 4 bits of D0 to D2 when X0 is ON, and stores them at
D10.
[Ladder Mode] [List Mode]
[Operation]
S
Step
Instruction
Device
0 0 0 0 0 0 0 0 0 0 0 000 0 1
b0
0 0 0 0 0 0 0 0 0 0 0 001 0 1
0 0 0 0 0 0 0 0 0 0 0 010 0 1
D0
b1b2b3b4
D1
D2
Linked data
b15
0 0 0 010 0 10 10100 01
b8 b0
D10
b7
b15
