7.6 Structure creation instructions
7.6.8 Subroutine program call (XCALL)
Operation Error
(1) In any of the following cases, an operation error occurs, the error flag (SM0) turns ON, and
an error code is stored into SD0.
• The device specified for the argument cannot be secured for the data size.
(Error code: 4101)
• Following the execution of the XCALL(P) instruction, the END, FEND, GOEND or STOP
instruction is executed before the execution of the RET instruction.
(Error code: 4211)
• The RET instruction is executed prior to the execution of the XCALL(P) instruction.
(Error code: 4212)
• A 17th nesting level is executed. (Error code: 4213)
• There is no subroutine program for the pointer specified in the XCALL(P) instruction.
(Error code: 4210)
Program Example

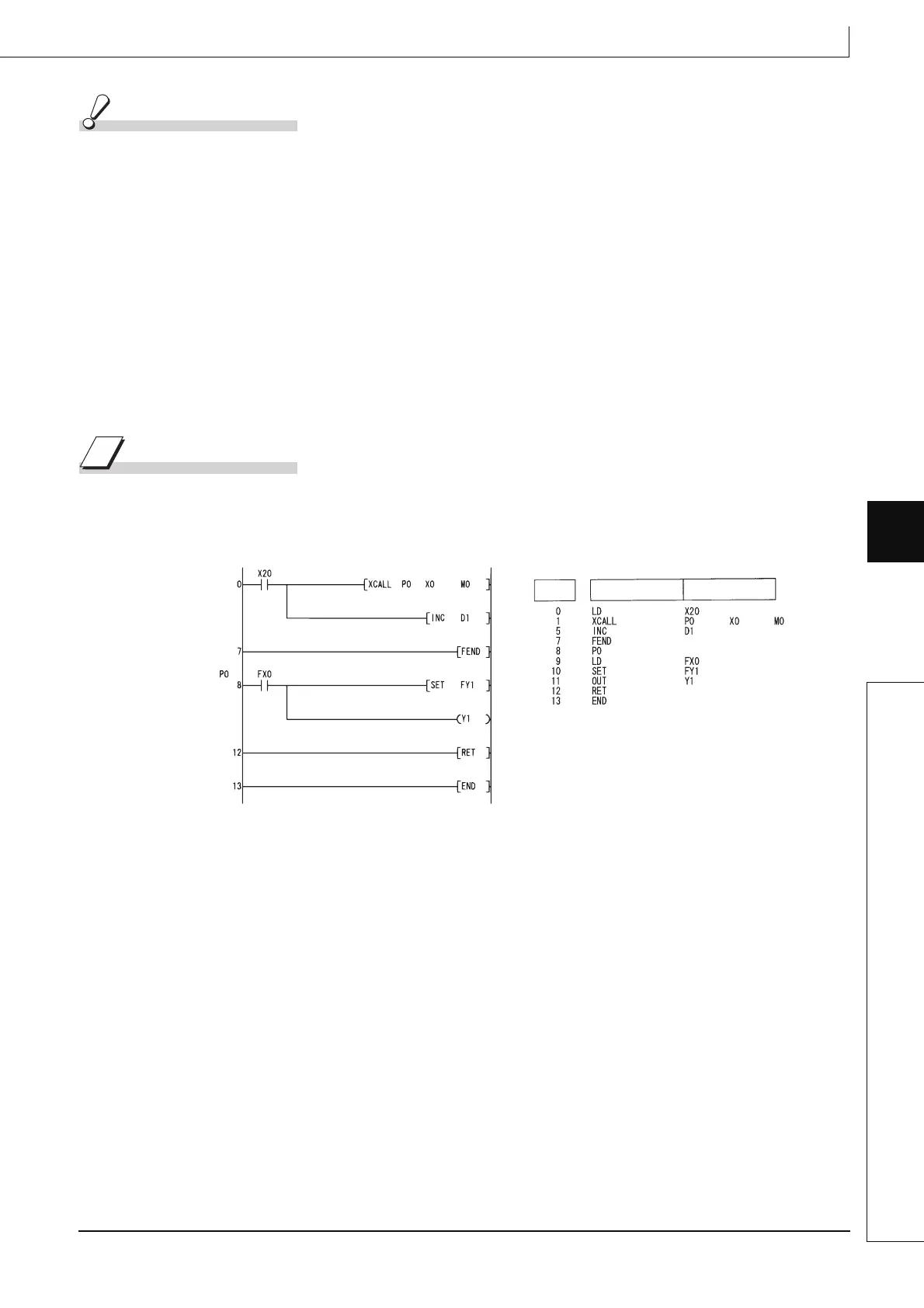

(1) The following program executes a subroutine program with argument when X20 is turned
ON.
