7-340
QDRSET(P)
Program Example

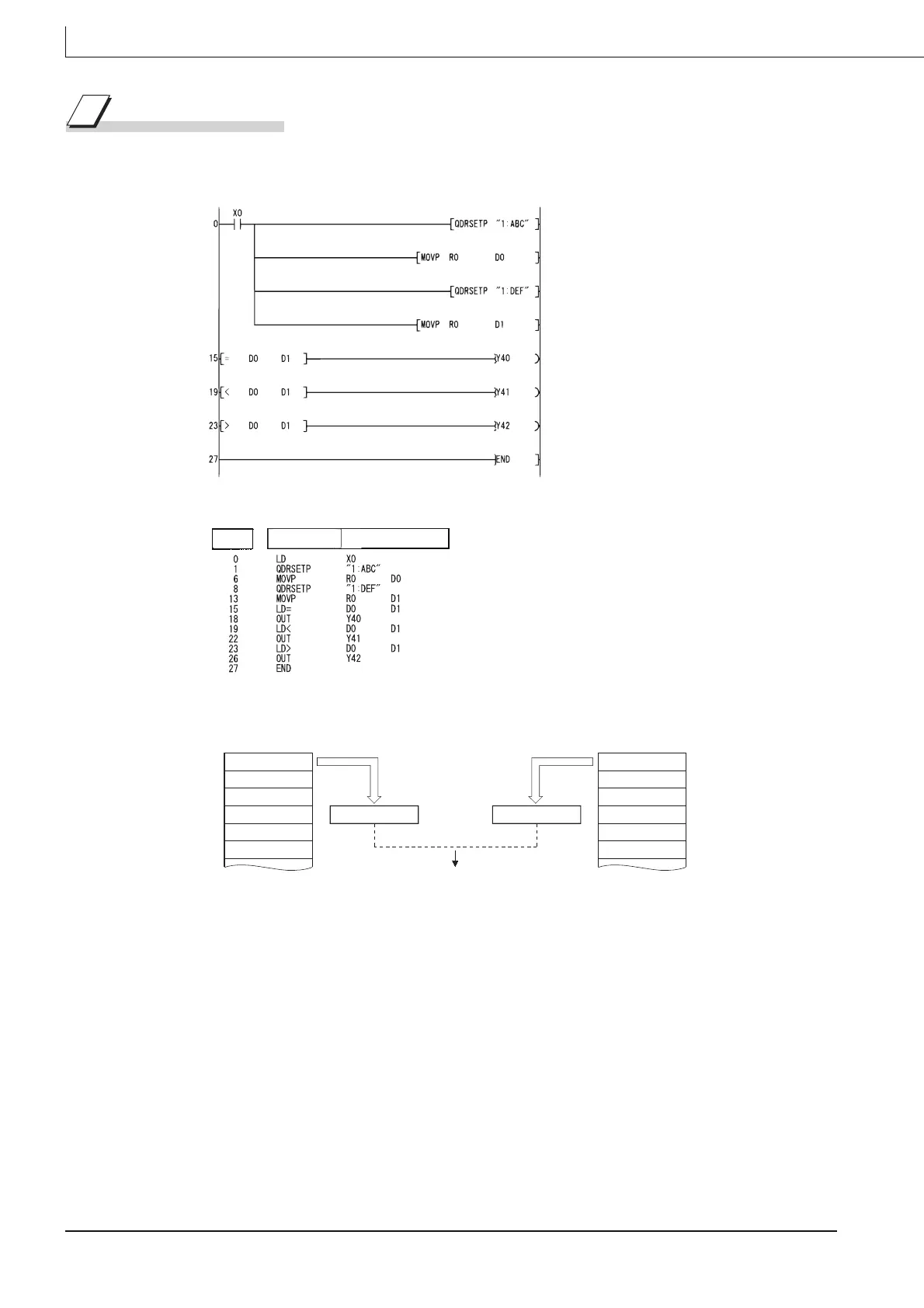

(1) The following program compares R0 of ABC in block No. 1 and R0 of DEF in block No. 1.
[Ladder Mode]
[List Mode]
[Operation]
Step Instruction Device
Y41 turns ON since D0<D1
756
Block No. 0
R3
R1
R2
R0
R4
R5
-7981
5001
128
-3216
9610
0
Block No. 1
R3
R1
R2
R0
R4
R5
3911
9330
-1762
756
-5
-3781
D0 D1
-3216
