7.18 Other instructions 7.18.9 Reading Module Information (UNIRD(P))

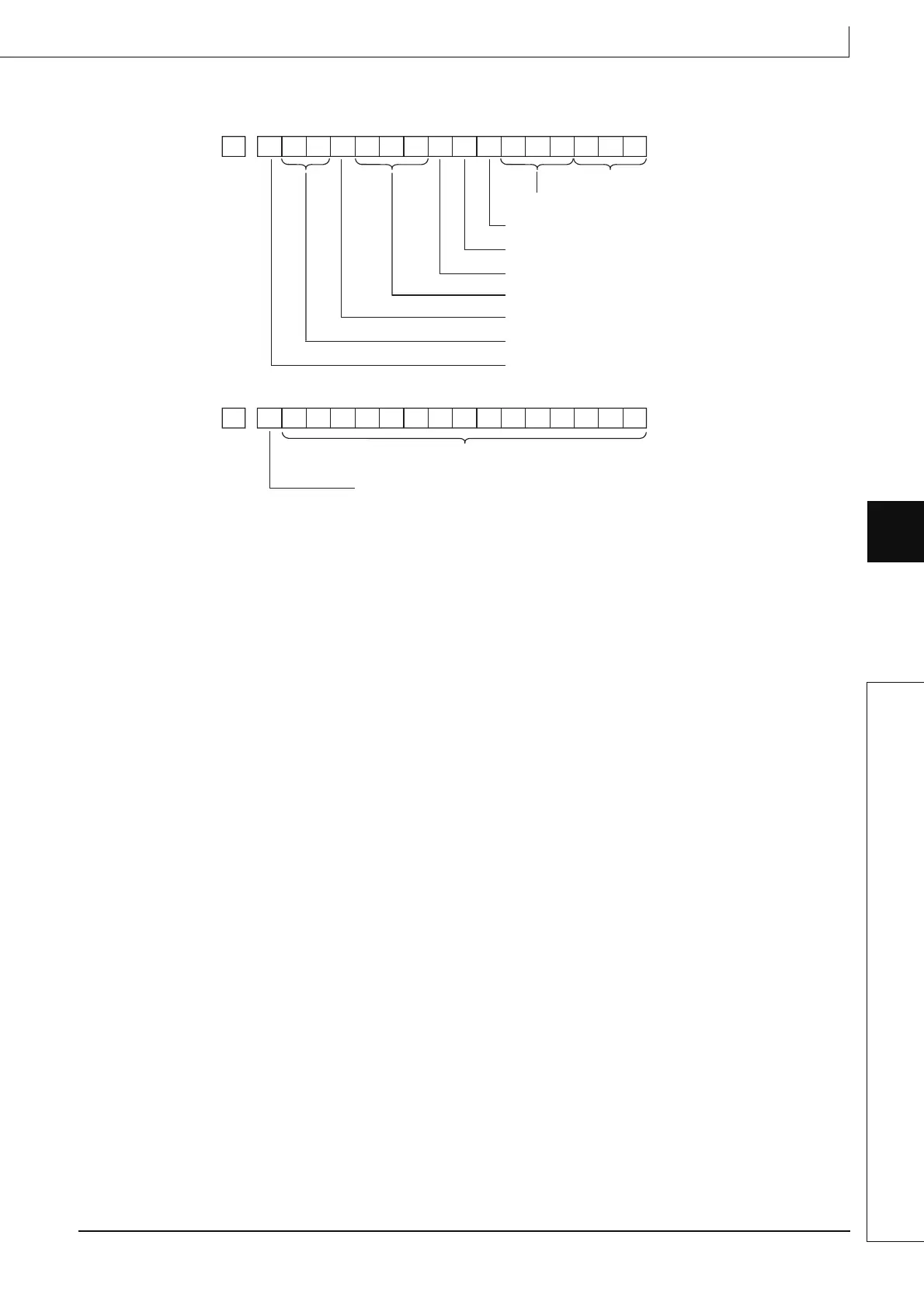

(6) L series 32-point intelligent function module
b15 b14 b13 b12 b11 b10 b9 b8
b7
b6
b5
b4 b3 b2 b1 b0
D0
b15 b14 b13 b12 b11 b10 b9 b8
b7
b6
b5
b4 b3 b2 b1 b0
32-point module
Intelligent function module
(Empty)
(Empty)
(Empty)
No module errors
Module preparation complete
(Empty)
Module connected
D1
All 0, because information is stored in "D0".
The module is mounted as the second 16 points of a 32-point modul
e
01 01000000011001
1000000000000000
