Mitsubishi MELSEC Q Series Programming Manual

2-58

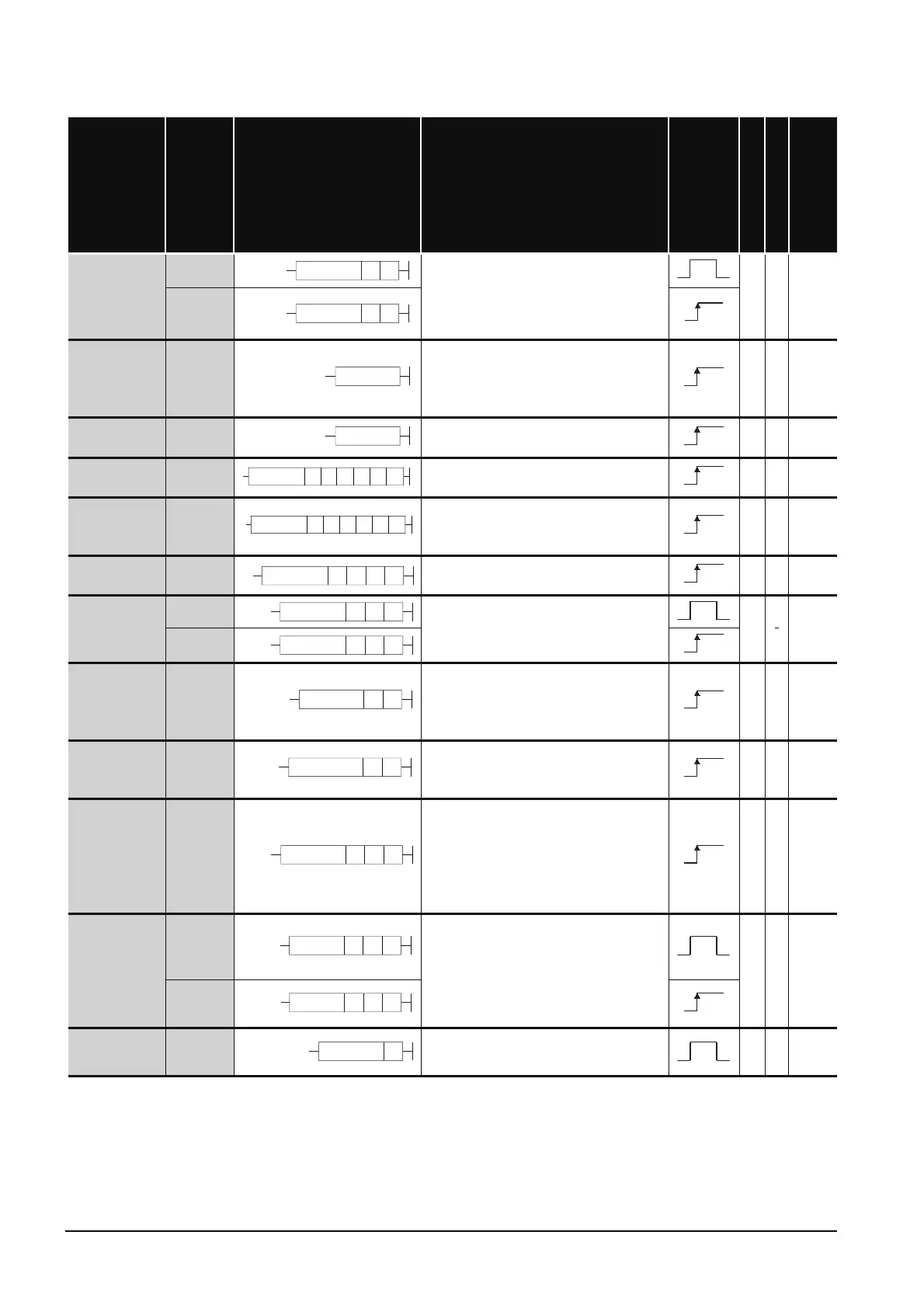

Table 2.35 Other Instructions (Continued)
Category
Instruction Symbol
Symbol Processing Details
Execution
Condition
Number of Basic Steps
Subset
See for Description
Module model
name read
TYPERD
• This instruction reads the module
information stored in the area starting from
the I/O number specified by "n", and stores
it in the area starting from the device
specified by (D).
3 - 7-408
TYPERDP
Trace set TRACE
• Stores the trace data set with peripheral
device by the number of times set when
SM800, SM801 and SM802 turn on, to
the sampling trace file.
1 - 7-413
Trace rset TRACER
• Resets the data set the TRACE
instruction.
1 - 7-413
Writing data to the
designated file
SP.FWRITE
• Writes data to the designated file. 11 - 7-415
Reading data
from designated
file
SP.FREAD
• Reads data from the designated file. 11 - 7-427
Writing data to
standard ROM
S.DEVST
• Writes data to the device data storage file in
the standard ROM.
9 - 7-439
Reading data from
standard ROM
S.DEVLD
• Reads data from the device data storage file
in the standard ROM.
8-7-441
SP.DEVLD
Loading program
from memory
PLOADP
• Transfers the program stored in a
memory card or standard memory (other
than drive 0) to drive 0 and places the
program in standby status.
3 - 7-443
Unloading
program from
program memory
PUNLOADP
• Deletes the standby program stored in
standard memory (drive 0).
3 - 7-446
Load
+
Unload
PSWAPP
• Deletes standby program stored in
standard memory (drive 0) designated by
(S1). Then, transfers the program stored
in a memory card or standard memory
(other than drive 0) designated by (S2) to
drive 0 and places it in standby status.
4 - 7-448
High-speed
block transfer of
file register
RBMOV
• Transfers n points of 16-bit data from the
device designated by (S) to the devices
of n points starting from the one
designated by (D).
4 - 7-451
RBMOVP
User message UMSG
• Displays the specified character strings
on the display unit as a user message.
2 - 7-456
TYPERD Dn
TYPERDP Dn
TRACE
TRACER
SP.FWRITE S1 S2S0 D0 D1U0
SP.FREAD S1 S2S0 D0 D1U0
SSP.DEVSTn1Dn2
S.DEVLD n1 n2D
SP.DEVLD n1 n2D
PLOADP SD
PUNLOADP SD
PSWAPP S1 S2 D
RBMOV S nD
RBMOVP S nD
UMSG S
