Warning for obstacles
If there is an obstacle in the vicinity of the
vehicle, a warning will be issued with the in-
formation screen in the multi information dis-
play and a warning buzzer.

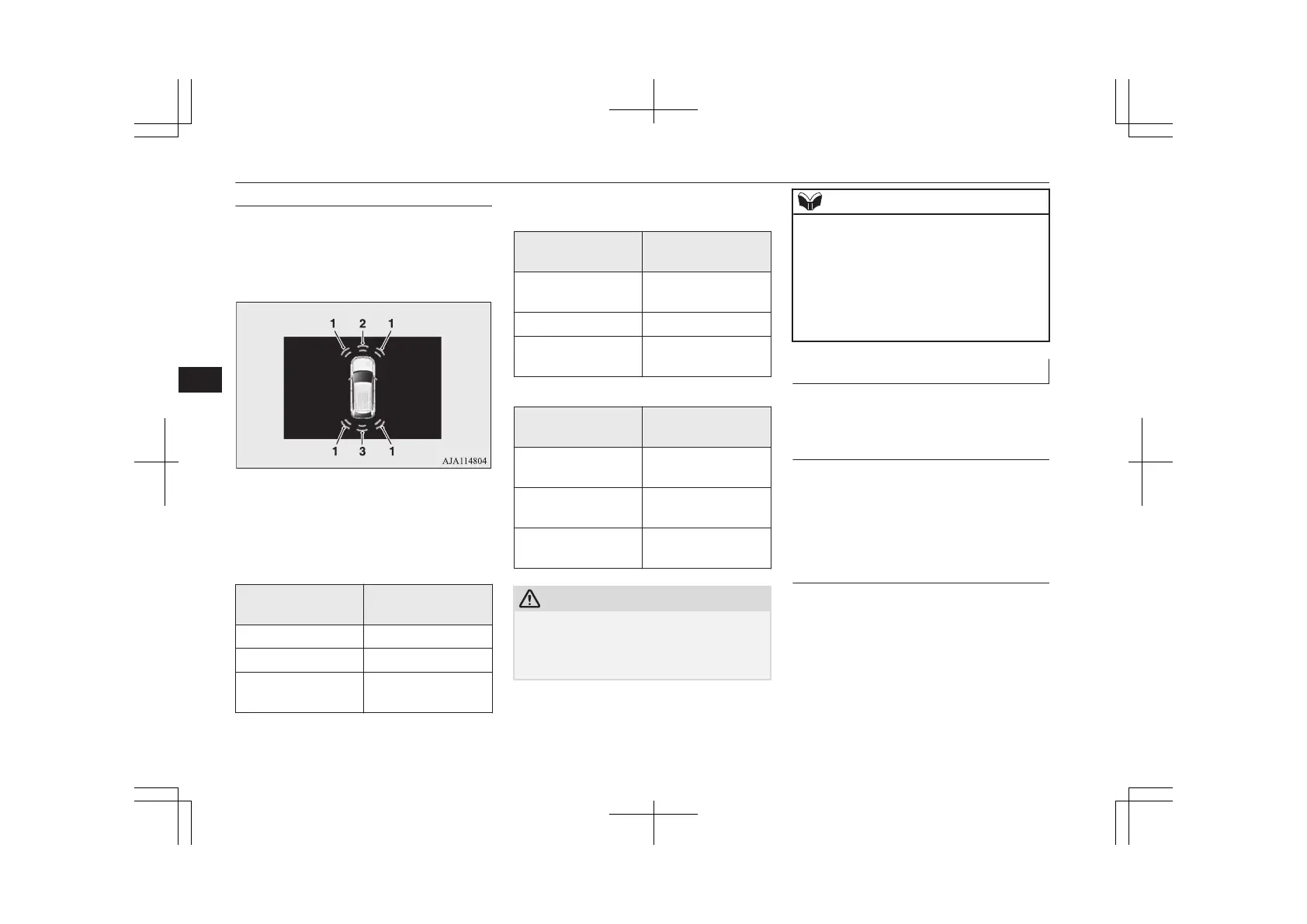

1- Corner sensor
2- Front sensor
3- Back sensor
Front and corner sensor
Vehicle to obstacle
distance
Warning display/
sound cycle
Approx. 60 to 40 cm Intermittent
Approx. 40 to 30 cm Fast intermittent
Within approx.
30 cm
Continuous
Back sensor (vehicles without a towing
bar)
Vehicle to obstacle
distance
Warning display/
sound cycle
Approx. 125 to
80 cm
Intermittent
Approx. 80 to 40 cm Fast intermittent
Within approx.
40 cm
Continuous
Back sensor (vehicles with a towing bar)
Vehicle to obstacle
distance
Warning display/
sound cycle
Approx. 125 to
100 cm
Intermittent
Approx. 100 to
60 cm
Fast intermittent
Within approx.
60 cm
Continuous
CAUTION
l
The distances given are to be used for refer-
ence only, as errors may be caused by vari-
ous factors, such as temperature, humidity,
or the shape of the obstacles.
NOTE
l
When the sensors are detecting different ob-
stacles at the same time, the information
screen in the multi information display indi-
cates the directions of the obstacles each
sensors are detecting. However, closer obsta-
cles are given priority over other detected
obstacles and the warning buzzer sounds to
inform you of closer obstacles.
Changing the detection areas
E00648200094
The detection areas can be changed as fol-
lows:
Vehicles with a towing bar
While the operation of the system is stopped
at the “SONAR” switch, press the “SONAR”
switch approximately 3 seconds or more, and
release it. The buzzer sounds twice to indi-
cate that the detection area has been changed.
Vehicles without a towing bar
While the operation of the system is stopped
at the “SONAR” switch, press the “SONAR”
switch approximately 3 seconds or more, and
release it. The buzzer sounds once to indicate
that the detection area has been changed.
Parking sensors (Front/Rear)*
