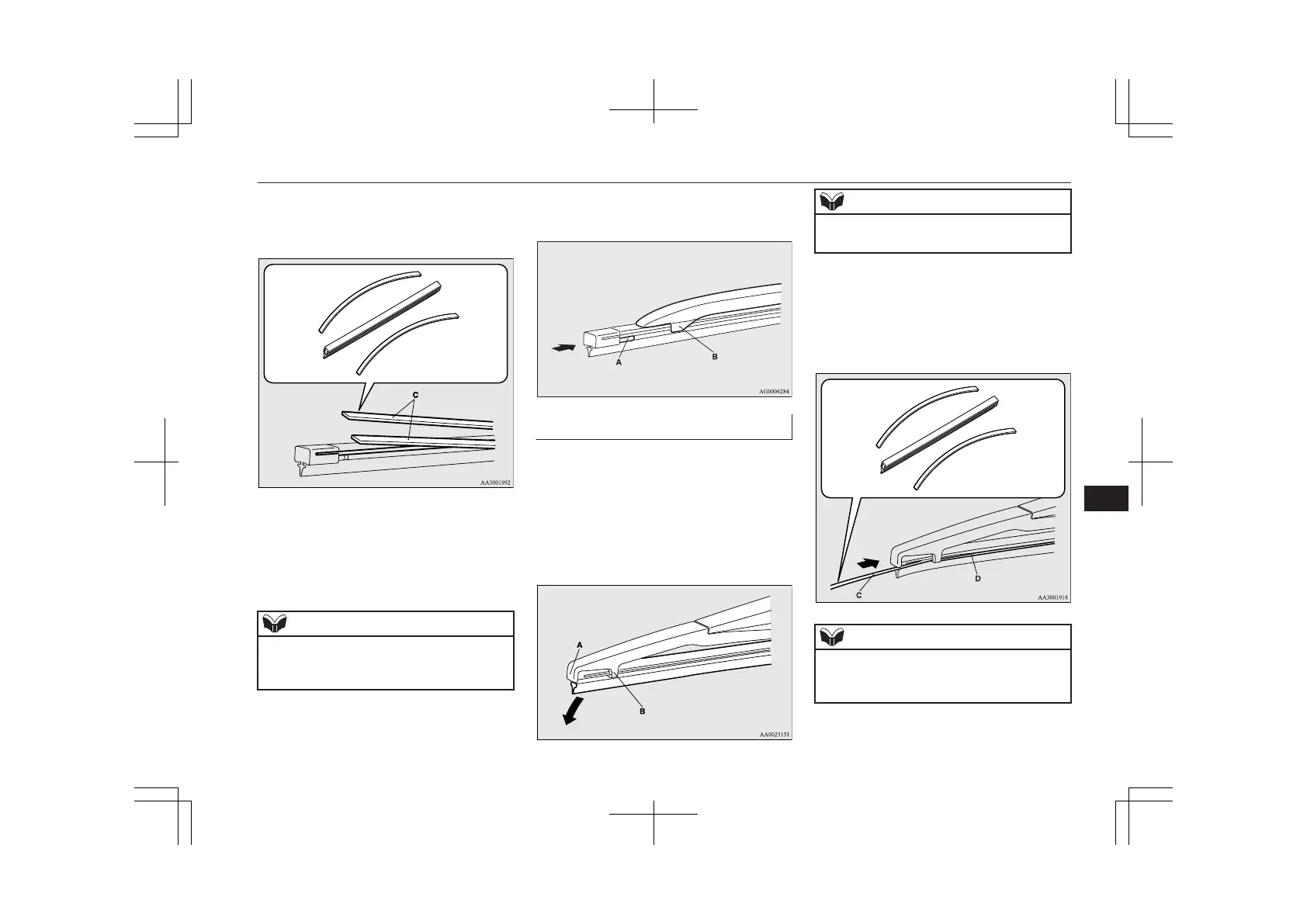

Refer to the illustration to ensure that the
retainers are correctly aligned as you at-
tach them.
4. Insert the wiper blade into the arm, start-
ing with the opposite end of the blade
from the stopper. Make sure the hook
(B) is fitted correctly in the grooves in
the blade.
NOTE
l
If retainers are not supplied with the new
wiper blade, use the retainers from the old
blade.
5. Push the wiper blade until the hook (B)
engages securely with the stopper (A).
Rear window wiper blades
1. Lift the wiper arm off the window glass.
2. Pull the wiper blade downward to disen-
gage it from the stopper (A) at the end of
the wiper arm. Pull the wiper blade fur-
ther to remove it.
3. Slide a new wiper blade through the
hook (B) on the wiper arm.
NOTE
l
Do not allow the wiper arm to fall onto the
window glass; it could damage the glass.
4. Firmly insert the retainer (C) into the
groove (D) in the wiper blade.
Refer to the illustration to ensure that the
retainers are correctly aligned as you in-
sert them into the groove.
NOTE
l
If a retainer is not supplied with the new
wiper blade, use the retainer from the old
blade.
Wiper blade rubber replacement
11-15
OGGE19E1
