Pull the fuse lid to remove it.
A- Main fuse block
B- Sub fuse block
Passenger compartment (RHD
vehicles)

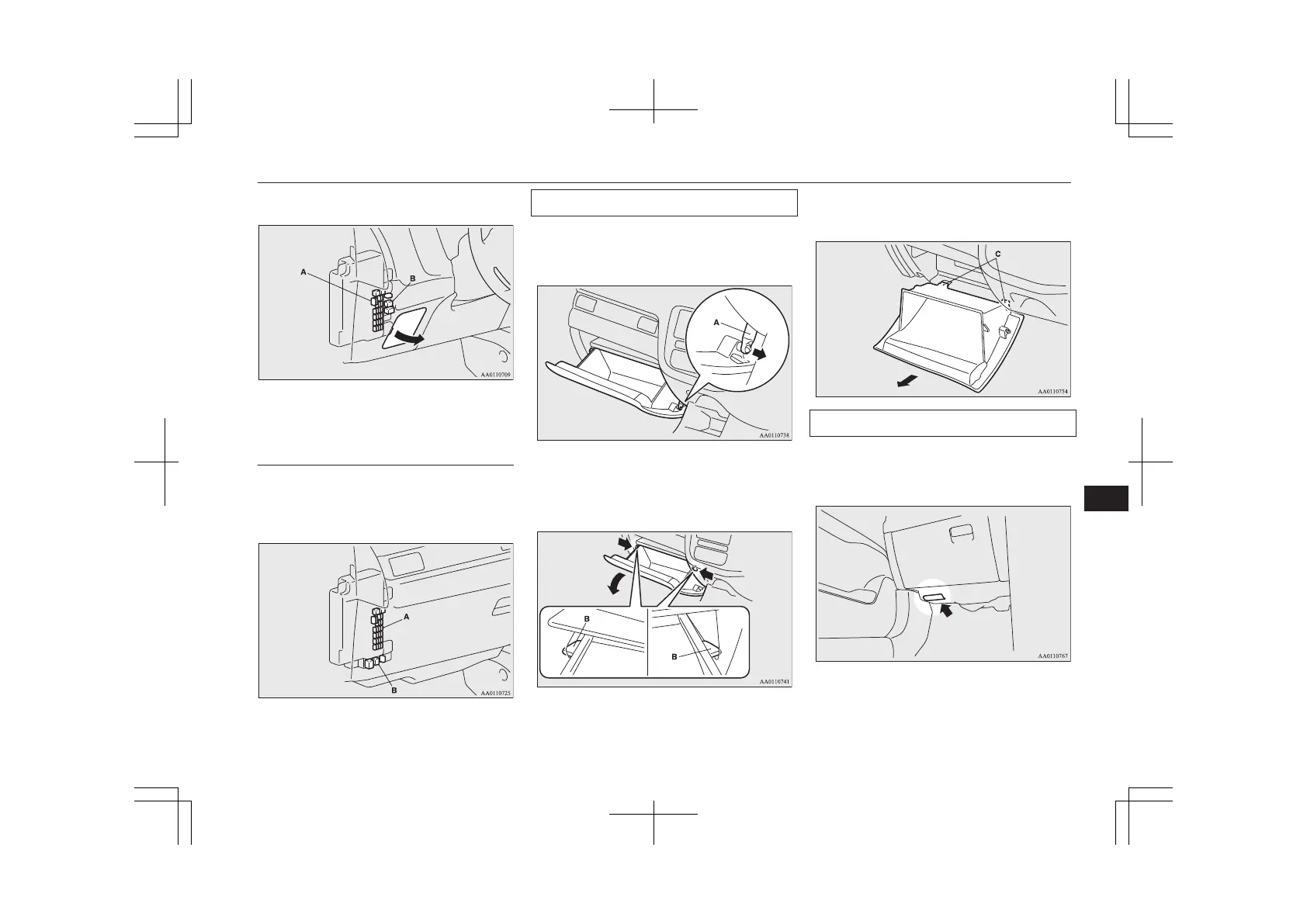

The fuse boxes in the passenger compartment
are located behind the glove box at the posi-
tion shown in the illustration.
A- Main fuse block
B- Sub fuse block
Main fuse block
1. Open the glove box.
2. Uncouple the rod (A) on the right side of
the glove box.
3.
While pressing the side of the glove box,
unhook the left and right hooks (B) and
lower the glove box.
4. Remove the glove box fastener (C), and
then remove the glove box.
Sub fuse block
When changing the fuse of the sub fuse
block, perform it with the hole of the bottom
cover.
Fuses
11-17
OGGE19E1
