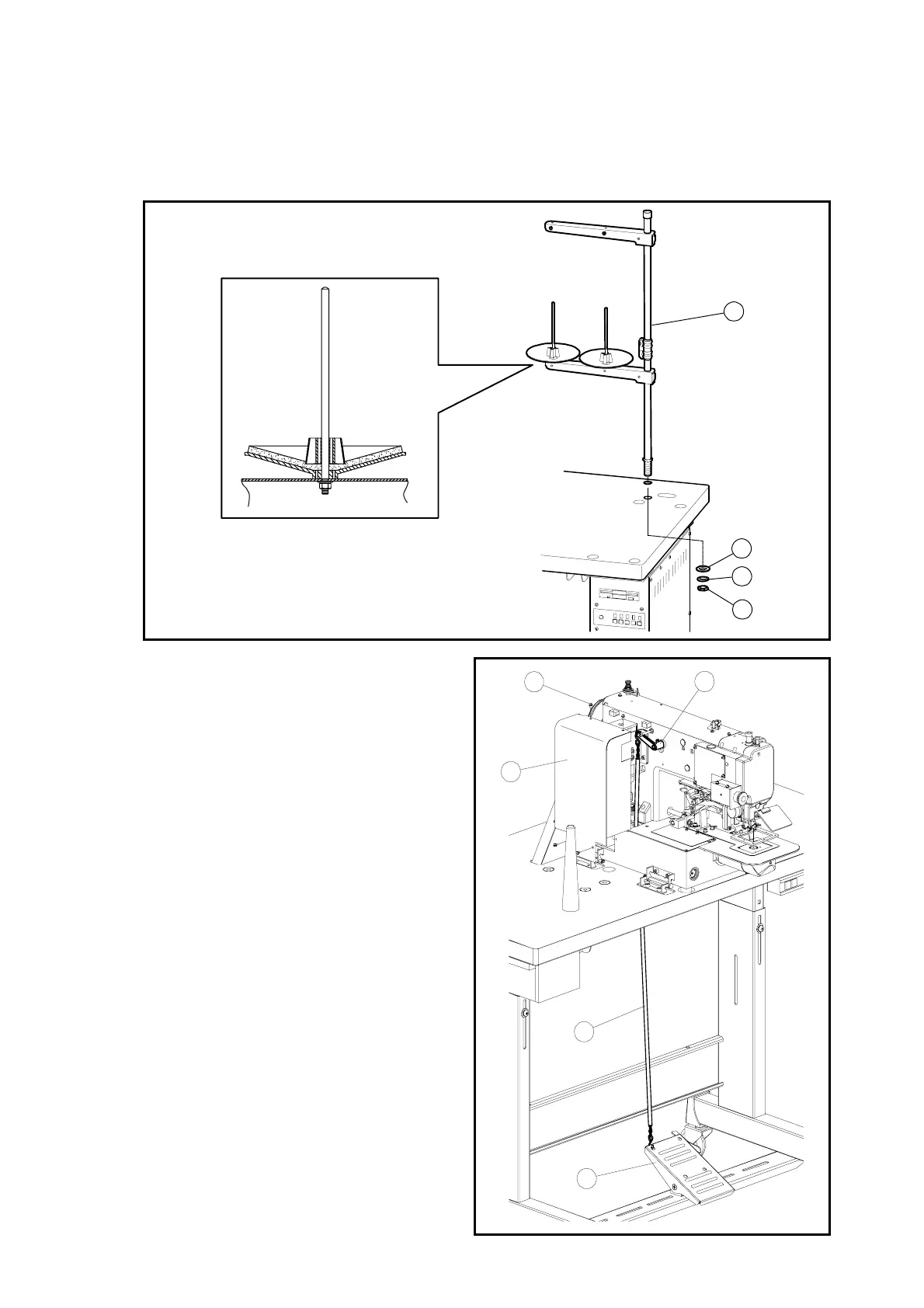

3-13. Installation of the thread stand
(1) Assemble the thread stand with the instructions enclosed in the packing.
(2) Fit the thread stand (NO.1) in the thread stand hole on the tabletop.
(3) Fix the thread stand (NO.1) firmly from the rear side of the table with tightening the nut
(NO.4) and the washers (NO.2, 3).
3-14. Functioning the work holder pedal
(1) Connect the chain (NO.1) across the
lever (NO.2) located at the left side of
the sewing machine head and the
work holder pedal (NO.3) mounted on
the steel stand bottom beam. The
chain (NO.1) is enclosed in the
accessory box.
(2) Put the stepping motor cover (NO.4)
back on the sewing machine head with
the screw (NO.5) after the chain
(NO.1) connection.
1
2
3
4
1
3
2
4
5
