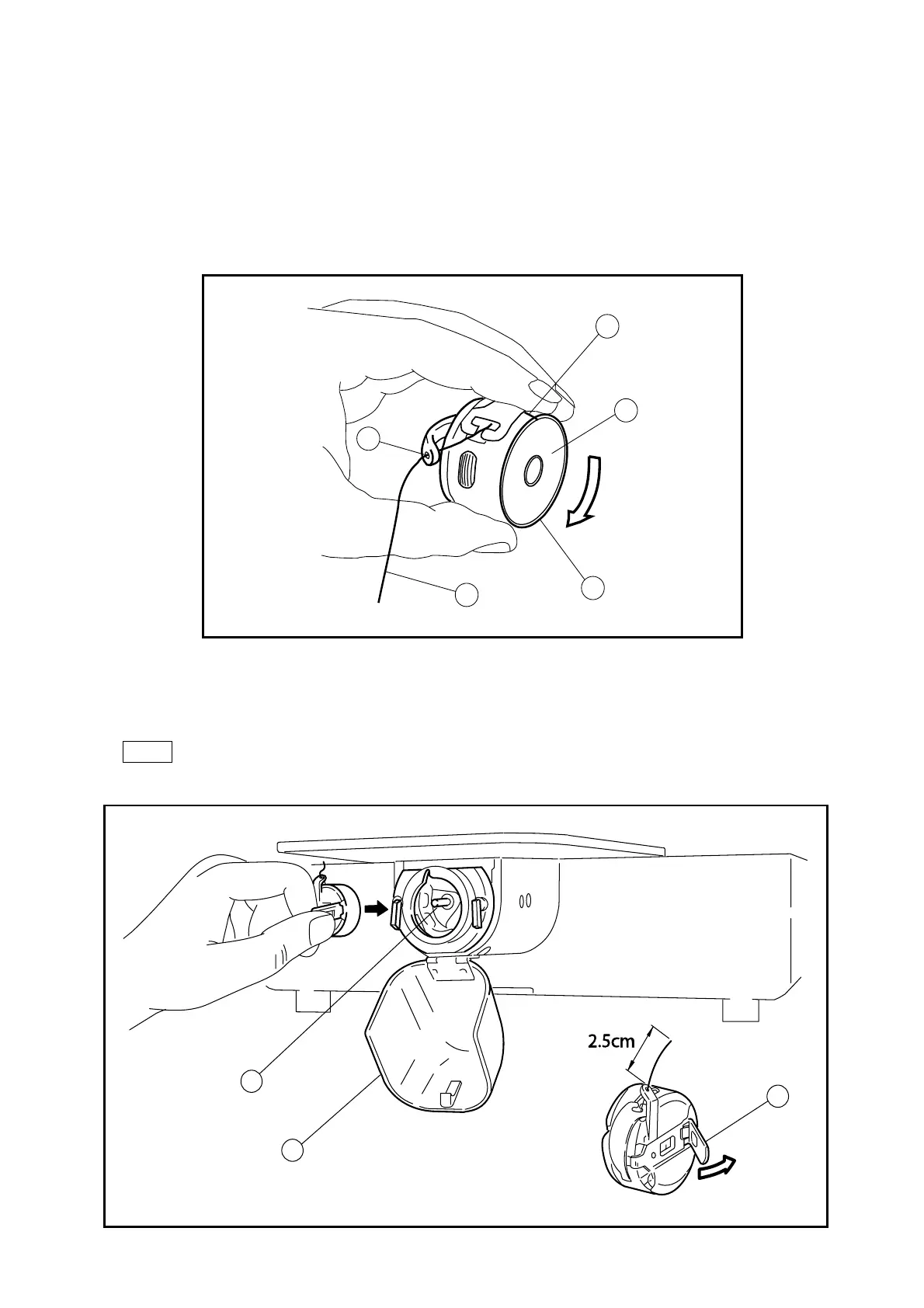

5-5. Settling the bobbin
(1) Set the bobbin (NO.2) into the bobbin case (NO.1).
(2) Pull the bobbin thread (NO.3) into the slit (NO.4) and pass the thread through the thread
hole (NO.5).
(3) At this time, pull the bobbin thread (NO.3) then, check with the bobbin (NO.2) if it is rotated
to the arrow direction. If it is not, set the bobbin (NO.2) into the bobbin case (NO.1) over
again to get the proper rotation.
5-6. Setting the bobbin case
(1) Set the needle bar to its highest position then, open the cylinder cover (NO.1).
(2) Open the bobbin case latch lever (NO.2) fully then, fit it securely in the inner hook (NO.3).
NOTE Please pull the bobbin thread about 25mm out of the thread hole (NO.4) of the bobbin
case.
