Please make sure to turn power switch OFF before oiling.
Please make sure to put some oil before starting the operation of the brand new machine or
when the sewing machine is resumed the operation after along interval.
Caution
4. LUBRICATION
NOTE Please use high quality white machining oil.
4-1. Filling the oil tank

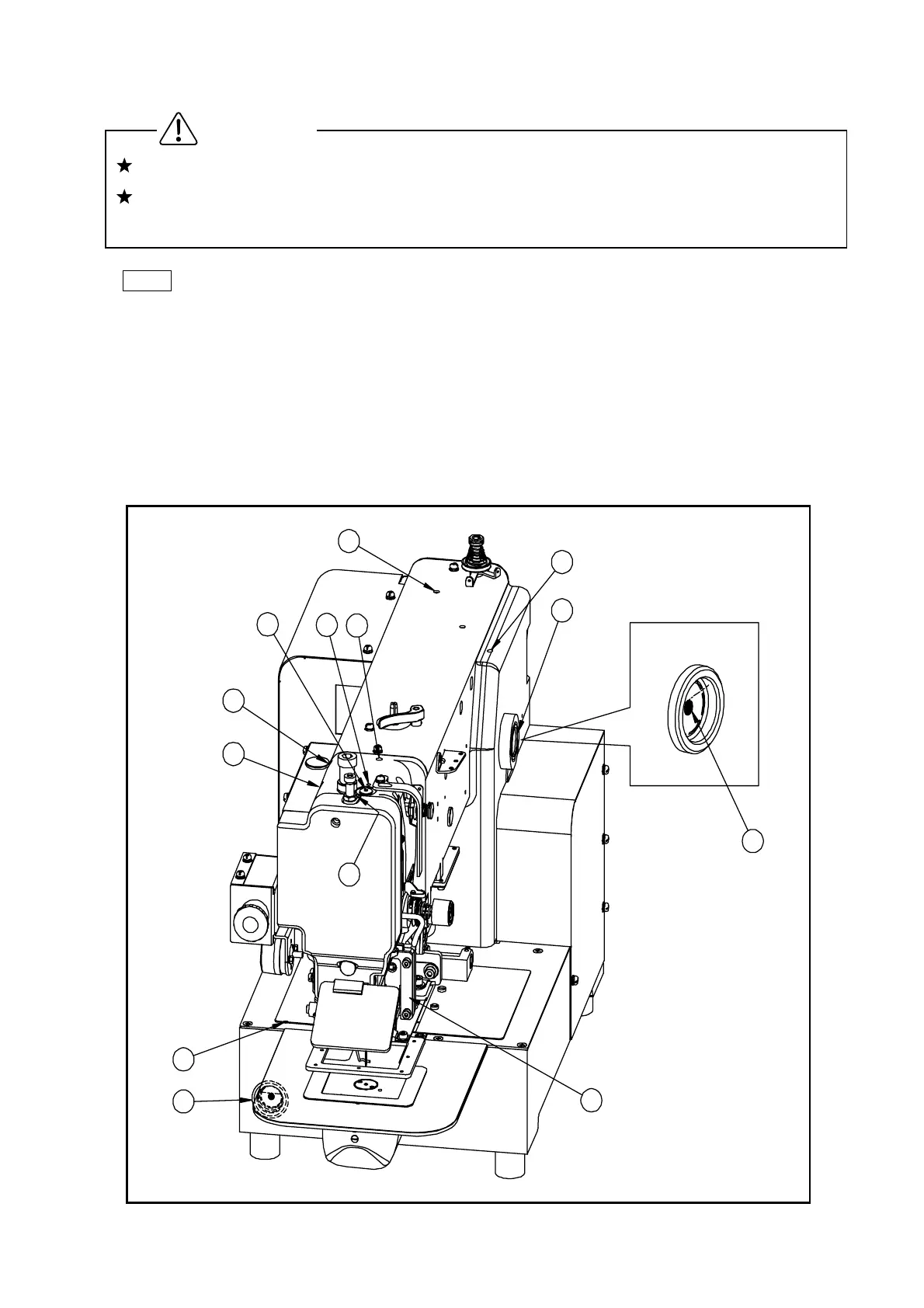

Pour the oil through the oil hole (NO.1) to the oil tank (NO.2) on the machine arm. Move the
work holder by hand to the right end then, pour the oil through the oil hole (NO.4) to the oil tank
(NO.5) on the machine bed. Please fill with the oil over level mark (NO.6) of the oil tank.
4-2. Oiling
Put some oil to the red marked oil holes (NO.7 ~ 13).
8
9
10
11
6
1
2
4
5
3
7
12
13
