4 SETTINGS AND PROCEDURES PRIOR TO OPERATION
4.6 Settings with the Utility Package (GX Configurator-SC)
The settings defined with GX Configurator-SC for operation of the Q series C24 are
described in Chapter 8.
The following concerns the data set from GX Configurator-SC.
1) Data set in the Q series C24 for the use of specific functions
2) Data set in the PLC CPU to communicate information between the Q series C24
and the PLC CPU of the mounting station.
This section explains the "Auto refresh settings" of the data mentioned in 2) above.
[Setting purpose]
The auto refresh settings are defined to automatically store the error and status
information stored in the buffer memory of the Q series C24 in devices
designated by the PLC CPU.
By this setting, the users can see the module error and status information without
accessing the Q series C24.
[Setup procedure]
[GX Developer] [Tools] [Intelligent function utility] [Start] "Intelligent
function module parameter setting module select"
Auto refresh .
For display screen, see Section 8.3.

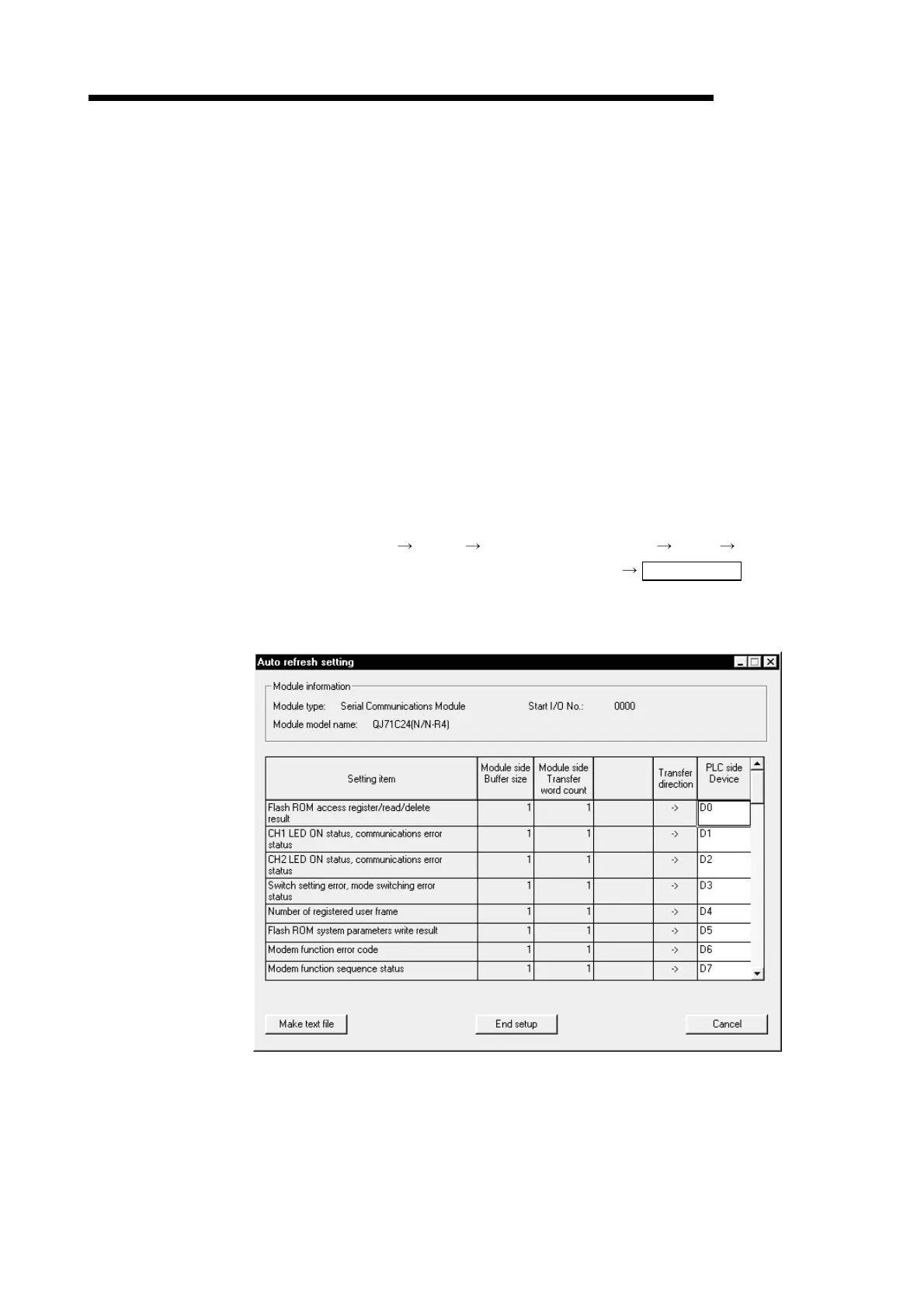

[Setting screen]
