8 UTILITY PACKAGE (GX Configurator-SC)
8.4.6 MC protocol system setting
[Purpose]
For data transmission using the MC protocol, register system setting values.
[Startup procedure]
• Online operation
[Monitor] screen
CH MC protocol system setting
• Offline operation
[Flash ROM setting] screen
CH MC protocol system setting

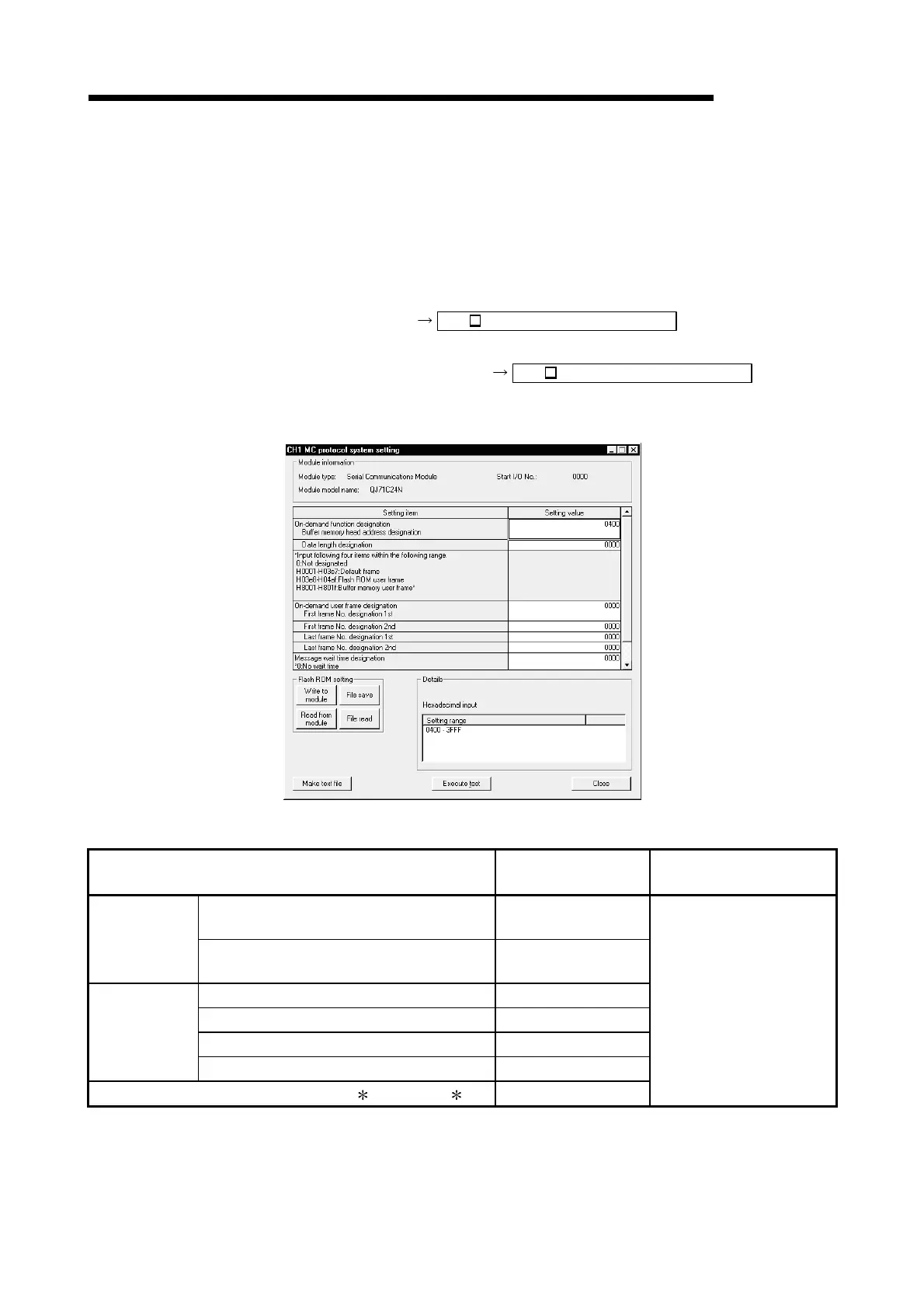

[Setting screen]
[Setting items]
Setting item
Setting value storage
buffer memory address
Reference section containing
detailed explanation
Buffer memory head address designation A0
H
/140
H
On-demand
function
designation Data length designation A1
H
/141
H
First frame No. designation 1st A9
H
/149
H
First frame No. designation 2nd AA
H
/14A
H
Last frame No. designation 1st AB
H
/14B
H
On-demand user
frame
designation
Last frame No. designation 2nd AC
H
/14C
H
Message wait time designation waiting time units: 10 ms 11E
H
/1BE
H
Chapter 10 of
User's Manual (Application)
