MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-SC)

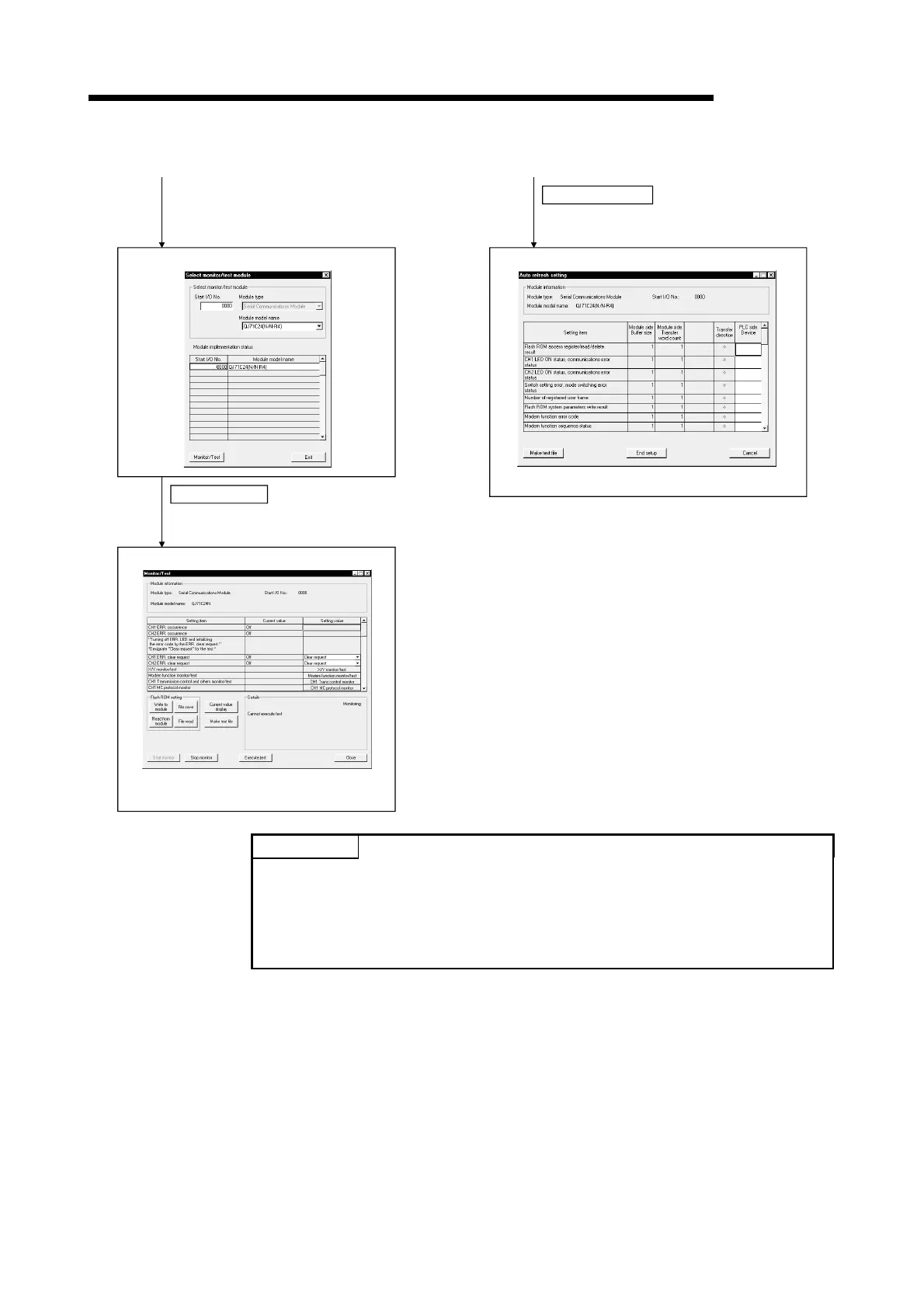

Auto refresh screen
Enter "Start I/O No.," then select "Module type"
and "Module model name."
Auto refresh
See Screen 4.6
Select monitor/test module screen
Select [Online] – [Monitor/test] from the menu bar.
1) When using online operation
Monitor/test screen
Select the parameter setting module
for monitor/test.
Monitor/test
See Section 8.4
See Section 8.6
2) When setting auto refresh
POINT
(1) When the setting operation is complete in each system setting screen, register
the system setting data in the flash ROM, then restart the PLC CPU resume
data transmission.
(2) With the Q series C24, monitoring, testing, and reading/writing of setting
values can be performed via online operation.
