8 - 10 8 - 10
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-SC)
8.3.2 Starting the intelligent function module utility (displaying the [select parameter setting
module] screen)
[Purpose]
Start the intelligent function module utility from the GX Developer, and display the
module selection screen for the intelligent function module utility parameter setting.
The screens that perform system setting, auto refresh setting, and
monitoring/testing for the Q series C24 can be started from this module selection
screen.
POINT
To start the Intelligent function module utility, a project created with the GX
Developer whose PLC series is set as "QCPU (Q mode)" is required.
[Startup procedure]
[Tools] [Intelligent function module utility] [Start]

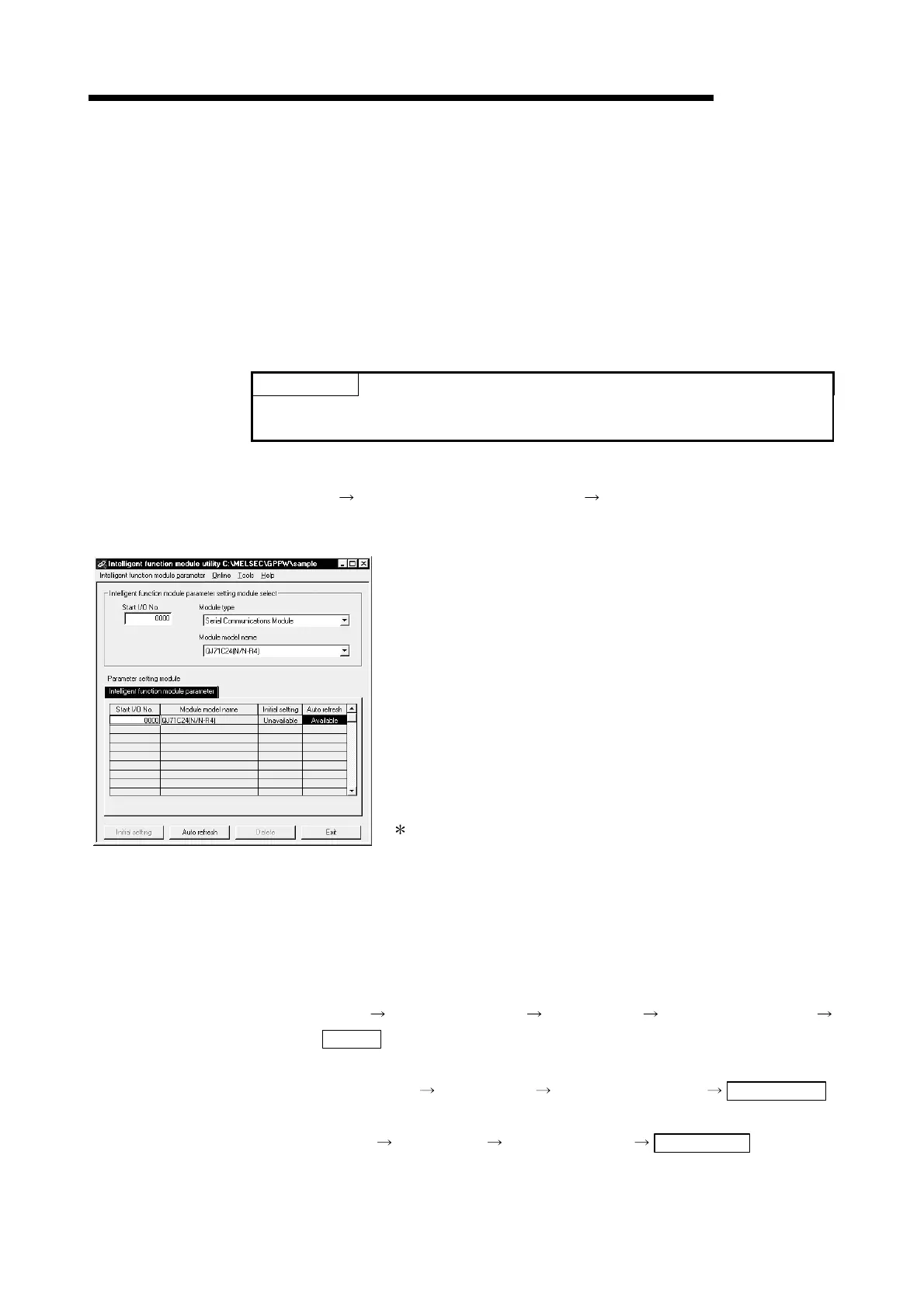

[Setting screen]
• Start I/O No.
Enter the start I/O number for the applicable the Q series C24
using a hexadecimal expression.
• Module type
Select [Serial communication module].
• Module model name
Select the module model name of the applicable the Q series
C24.
• Intelligent function module parameter setting module
The modules for which parameters are set with the intelligent
function module utility are displayed.
Select the target module of your operation.
It is not necessary to select [Intelligent function module,
select parameter setting module] to perform monitor/test
operation.
[Explanation of items]
(1) How to start each screen
(a) Starting the flash ROM setting screen
[Tools] [Flash ROM setting] "Module type" "Module model Name"
Select
(b) Starting auto refresh settings
"Start I/O No."
"Module type" "Module model name" Auto refresh
(c) Monitor/test module selection screen
[Online]
[Monitor/test] "Module selection" Monitor/test
