MELSEC-Q

9 DEDICATED INSTRUCTIONS

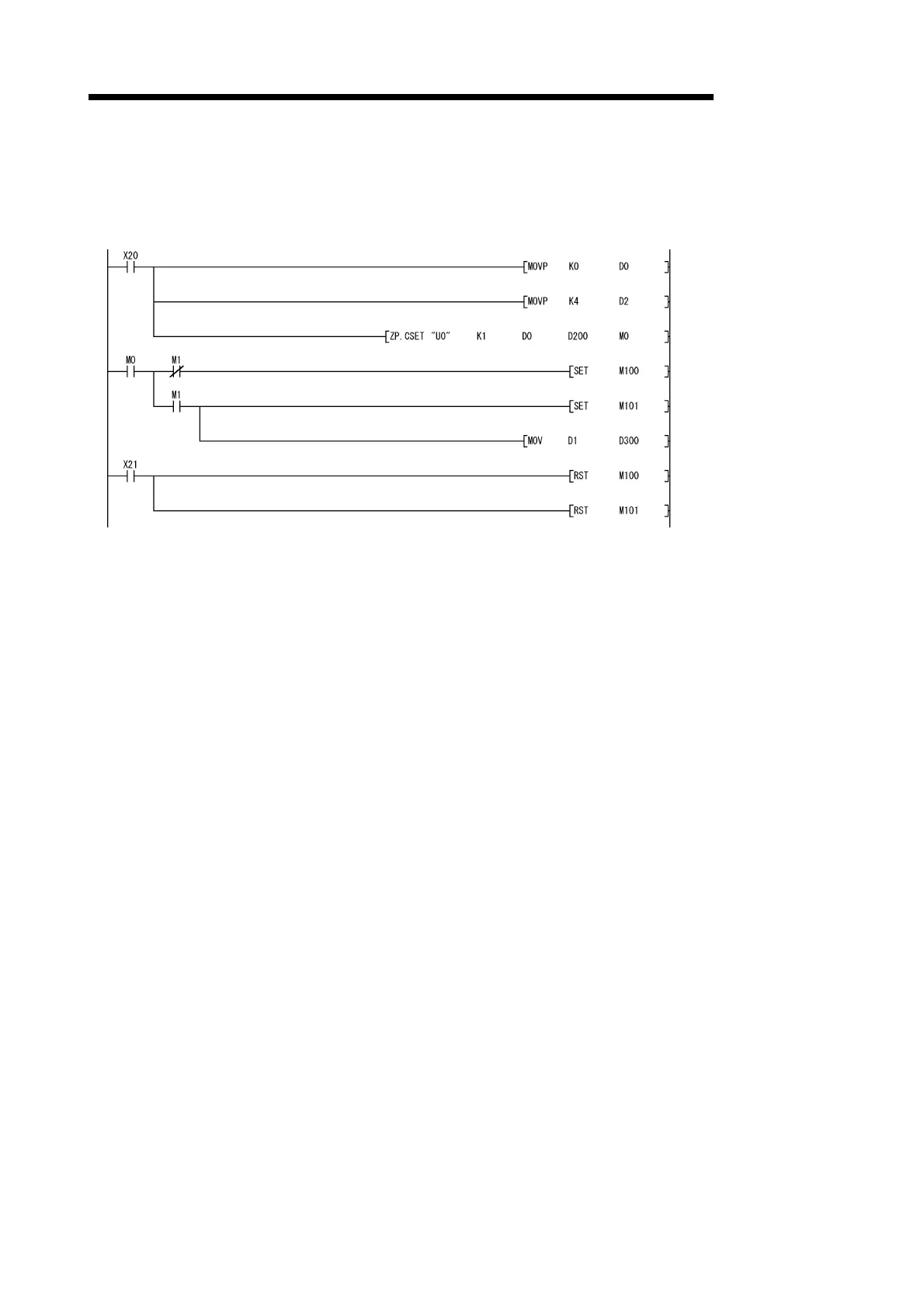

Program example

This is an example of a program that clears reception data on the Q series C24 side.

It is assumed that the input/output signals of the Q series C24 are X/Y00 to X/Y1F.

Set the execution type

Set the request type

(Reception data clear)

Execute the reception

data clear

Normal completion

Abnomal completion

Reset the complete flag by

external command

Mitsubishi QJ71C24/-R2 - Page 251
