MELSEC-Q
10 TROUBLESHOOTING
(2) Example of a program that reads from the setting status storage
area

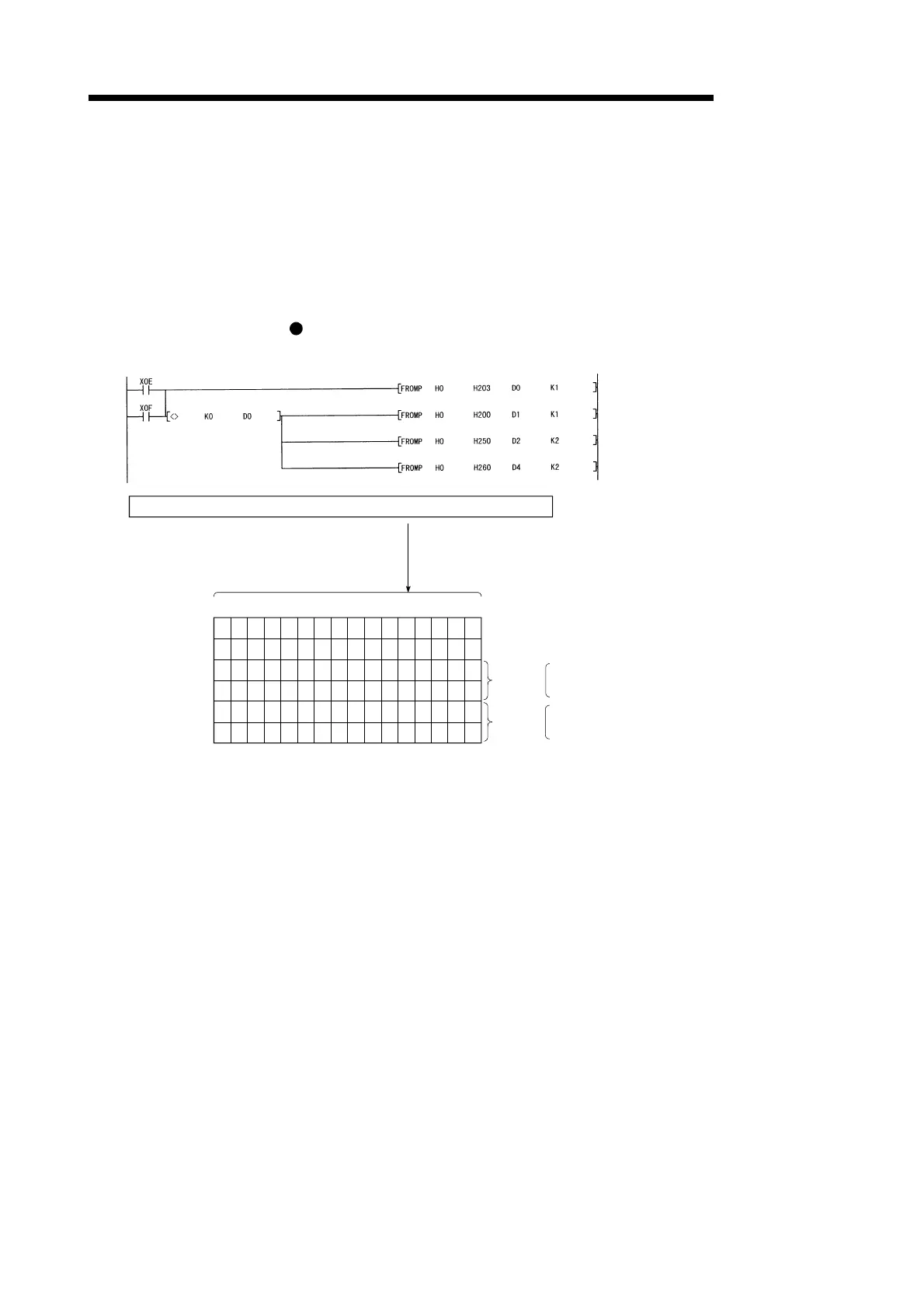

The following shows an example of a program that reads the setting of various
switches of the Q series C24 from the setting status storage area.
For details on XE and XF of the input/output signals used in the program, see
Section 10.1.2 (3).
(input/output signals X/Y00 to X/Y1F of the Q series C24)
Example of FROM instruction
Reads error description from address 203
H.
Reads station number setting and switch
setting description from address 200
H
.
Reads communication protocol setting and
transmission setting description on the CH1
side from addresses 250
H
to 251
H
.
Reads communication protocol setting and
transmission setting description on CH2
from addresses 260
H to 261H.
Restarts the Q series C24 after checking the error code and resetting switches.
b15b14b13b12b11b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
Error description (1: Communication protocol number setting error)
Setting station number of the Q series C24 (0).
CH1 side
D0
D1
D2
D3
D4
D5
Communication protocol setting number (9).
(transmission setting description)
CH2 side
Displays communication protocol number setting error status on the CH1 side
0000000000000000
0000000000001001
00000 10100001010
0000000000000001
00000 10 10 110 10 10
0000000000000001
Communication protocol setting number (1).
(transmission setting description)
